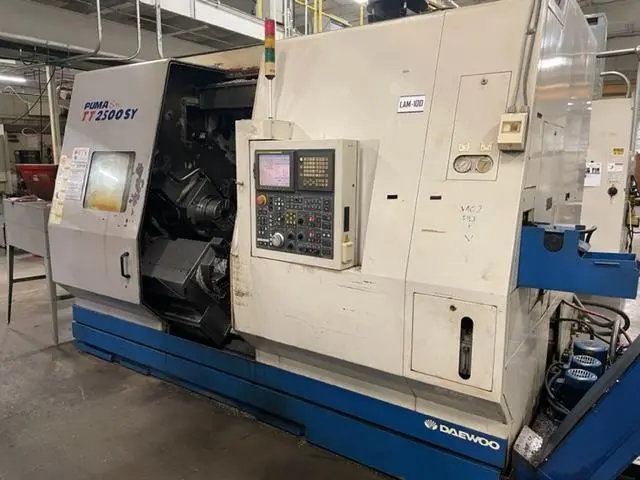

DOOSAN PUMA TT 2500SY MULTI AXIS LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DOOSAN PUMA
Model:
TT 2500SY
Condition:
Good
Year:
2004
Stock #:
210078
Status:
For Sale

Description

THIE PUMA TT 2500SY HAS UPPER & LOWER TURRETS WITH LIVE MILLING, Y AXIS ON UPPER TURRET, COOLJET UNIT, PARTS UNLOADER/ CONVEYOR AND A FANUC 18i-TB CONTROL.

Maximum Swing31.5"800.1 mm
Max Turning Diameter15.4"391.16 mm
Main Spindle Bore/Max Bar Capacity3.5"/ 3.2"3.5"/ 3.2"
Tail Stock/Sub SpindleSub SpindleSub Spindle
Distance Between Centers29.1"739.14 mm
X-Axis Travel (X1, X2, X3)10"/ 7.5"10"/ 7.5"
Z-Axis Travel (Z1, Z2, Z3)31.5"/ 35.4"31.5"/ 35.4"
Y-Axis Travel (Y1, Y2, Y3)4.7" (±2.4")4.7" (±2.4")
W-Axis Travel Sub Spindle31.9 in
Main Spindle Chuck Size0.4724"12 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.5"88.9 mm
Main Spindle Maximum Bar Work3.2"81.28 mm
Main Spindle Speed3,500 RPM3,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)3535
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed3,500 RPM3,500 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)3535
Turret Tool Positions 1, 21212
B-Axis Milling Spindle Speed5,000 RPM5000 rpm
B-Axis Milling Spindle Horse Power44
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
Tool Eye Measurement Upper TurretYesYes
Tool Eye Measurement Lower TurretYesYes
Workpiece Unloader & ConveyorParts Unloader/ConveyorParts Unloader/Conveyor
ControlCNC (FANUC 18i-TB)CNC (FANUC 18i-TB)
Dimensions160" x 87"160" x 87"
Weight28000 lb28000 lb

FANUC 18I-TB
-UPPER & LOWER TURRETS W/LIVE TOOLING
-Y-AXIS ON UPPER TURRET
-SUB SPINDLE
-TOOL PRESETTER
-COOLJET UNIT
-PARTS UNLOADER/CONVEYOR
-CHIP CONVEYOR
