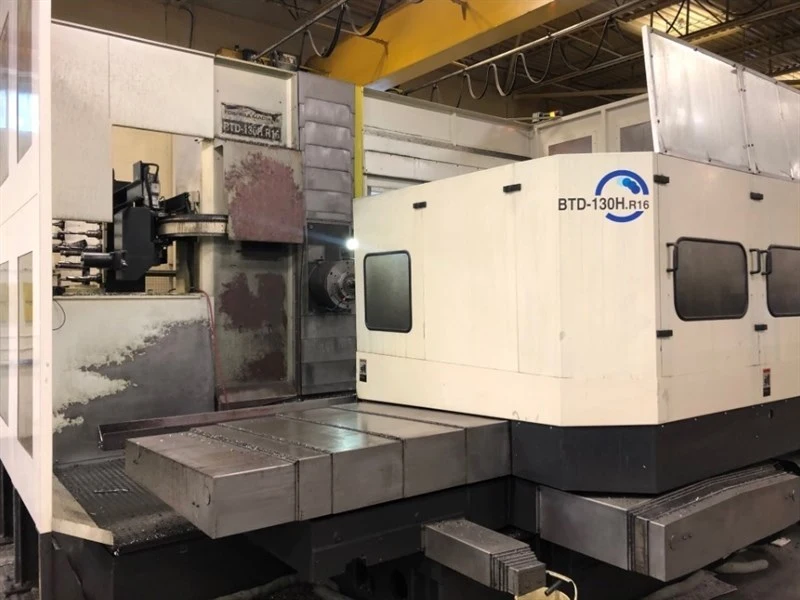

TOSHIBA BTD 130H-R16 CNC HORIZONTAL BORING MILL
Have one to sell?
ConditionUsed
1 available
THIS HARD TO FIND 2014 TOSHIBA BTD 130H-R16 CNC HORIZONTAL BORING MILL WITH: COOLANT THRU 60 ATC PROBE IS IMMEDIATELY AVAILABLE
Number Of Pallets 1
Table Load Capacity 13,890 Lbs.
Table Size 55'' x 63''
X -Axis Travel 78.74"
Y - Axis Travel 59.05"
Z - Axis Travel 57.09"
W - Axis Travel 27.56"
Spindle Diameter 4.3''
Spindle Taper #50
Spindle Speed 5 - 2,500 RPM
Table Indexing .001 Degree
Main Motor 40 HP
Rapid Traverse rate
X, Y, Z, W 472, 472, 472, 236 IPM
Tool Changer Capacity 60 ATC
Maximum Tool Diameter 4.8" / 9.45"
Maximum Tool Length 23.6"
Maximum Tool Weight 55 Lbs.
CHIP CONVEYOR COOLANT
THRU SPINDLE
RENISHAW RMP60 PROBE
TOSNUC 999 CNC CONTROL
