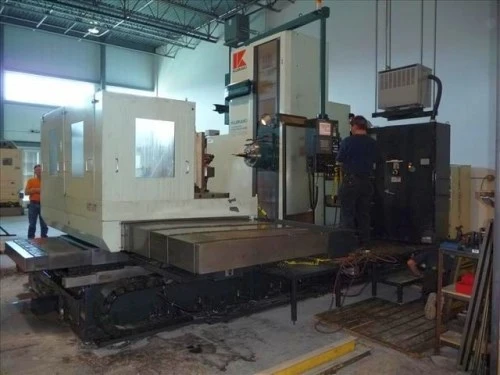

KURAKI KBT 11W A 4.3'' CNC HORIZONTAL BORING MILL
Have one to sell?
$209,500.00 USD
ConditionUsed
1 available
VERY NICE KURAKI KBT 11W A 4.3'' CNC HORIZONTAL BORING MILL WITH .001 N/C ROTARY TABLE SCALE FEEDBACK SYSTEM X, Y, Z, B AXIS CHIPBLASTER HIGH PRESSURE COOLANT
Table Size 55.12 X 62.99"
Table Load Capacity 14,300 LBS.
Spindle Diameter 4.33"
X - Axis Travel 78.74"
Y - Axis Travel 59.06"
Z - Axis Travel 57.09"
W - Axis Travel 19.69"
B - Axis Indexing .001 Degree
Spindle Speed 3,000 RPM
Spindle Taper 50
Main Motor 30 HP
Automatic Tool Changer 40
Tool Diameter 4.92", 9.45"
Tool Length 15.75"
Tool Weight 55 LBS.
Rapid Traverse
X, Y, Z, W 474, 474, 474, 236 IPM
Cutting Feed Rate 236 IPM
Machine Weight 63,800 LBS.
.001 N/C ROTARY TABLE
CHIP BLASTER
HIGH-PRESSURE COOLANT
HELICAL INTERPOLATION
SCALE FEED BACK SYSTEM X, Y, Z, B AXIS
SPINDLE CHILLER
THRU SPINDLE AIR BLOW
FANUC 16IMB CNC CONTROL
