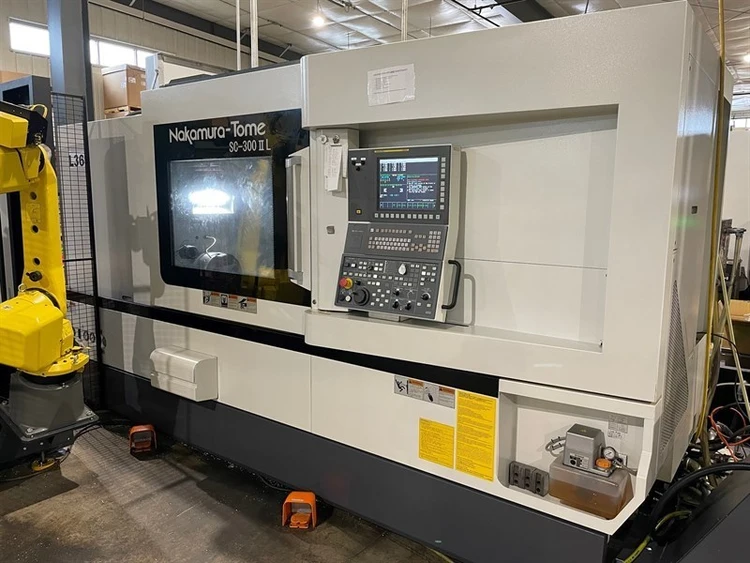

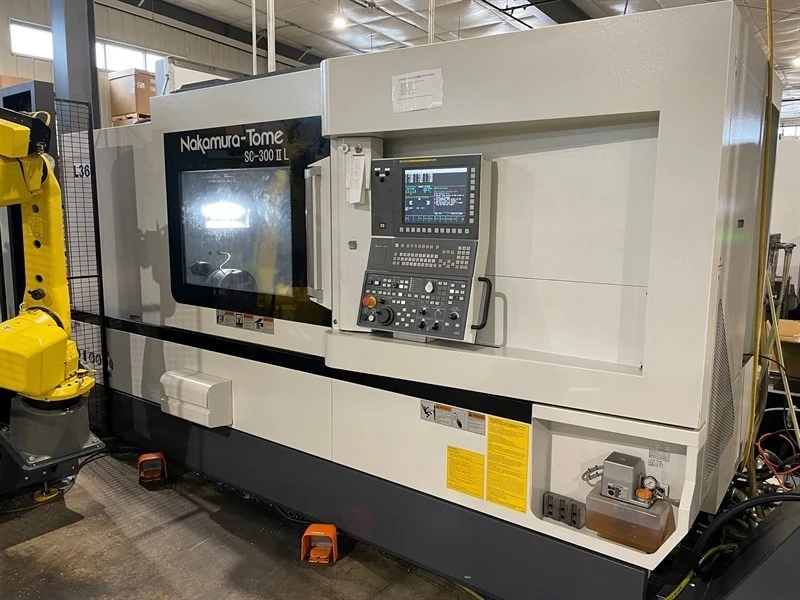

NAKAMURA SC 300II LMSYB CNC MULTI TASKING CENTER W/ Y-AXIS & SUB SPINDLE
Have one to sell?
ConditionUsed
1 available
THIS 2020 SC 300II LMSYB HAS A FANUC 21i-TB CONTROL, BARFEED INTERFACE, KITAGAWA B-12 & B-208 CHUCKS - MAIN AND SUB, NT NURSE II TOOL MANAGEMENT SYSTEM, ROBOT INTERFACE AND ONLY 1659 CUTTING HOURS.
FANUC 21ITB CNC CONTROL
FANUC OI-TF CNC CONVERSATIONAL CONTROL W/15" LCD COLOR DISPLAY
12D/24 POSITION TURRET
1659 CUTTING HOURS
BAR FEED INTERFACE
CHIP CONVEYOR
HELICAL INTERPOLATION
HIGH PRESSURE COOLANT PUMP
KITAGAWA B-12 & B-208 MAIN AND SUB
NT NURSE II TOOL MANAGEMENT SYSTEM
NT WORK NAVIGATOR
PARTS CATCHER TYPE A
ROBOT INTERFACE
TOOL SETTER MAIN AND SUB SPINDLE
THIS 2020 SC 300II LMSYB HAS A FANUC 21i-TB CONTROL, BARFEED INTERFACE, KITAGAWA B-12 & B-208 CHUCKS - MAIN AND SUB, NT NURSE II TOOL MANAGEMENT SYSTEM, ROBOT INTERFACE AND ONLY 1659 CUTTING HOURS.
Imperial
| Maximum Swing | 22.05" |
| Max Turning Diameter | 13.7" |
| Main Spindle Bore/Max Bar Capacity | 3.51"/ 3.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 43.31" |
| Distance Between Spindles | 47.78" |
| X-Axis Travel (X1, X2, X3) | 8.76" |
| Z-Axis Travel (Z1, Z2, Z3) | 44.69" |
| Y-Axis Travel (Y1, Y2, Y3) | 3.2" |
| C-Axis Indexing (1, 2) | .001, 001 DEGREE |
| W-Axis Travel Sub Spindle | 47.75 in |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.51" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 3,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.0" |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 5,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 20 |
| Turret Tool Positions 1, 2 | 24 |
| Turret Rotary Tool Spindle Speed 1, 2 | 3600 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Parts Catcher | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Control | CNC (FANUC 21ITB) |
| Weight | 25,000 LBS. |
FANUC 21ITB CNC CONTROL
FANUC OI-TF CNC CONVERSATIONAL CONTROL W/15" LCD COLOR DISPLAY
12D/24 POSITION TURRET
1659 CUTTING HOURS
BAR FEED INTERFACE
CHIP CONVEYOR
HELICAL INTERPOLATION
HIGH PRESSURE COOLANT PUMP
KITAGAWA B-12 & B-208 MAIN AND SUB
NT NURSE II TOOL MANAGEMENT SYSTEM
NT WORK NAVIGATOR
PARTS CATCHER TYPE A
ROBOT INTERFACE
TOOL SETTER MAIN AND SUB SPINDLE
