** SOLD ** MAZAK INTEGREX i-200ST WITH GL-100F GANTRY
Have one to sell?
ConditionUsed
1 available

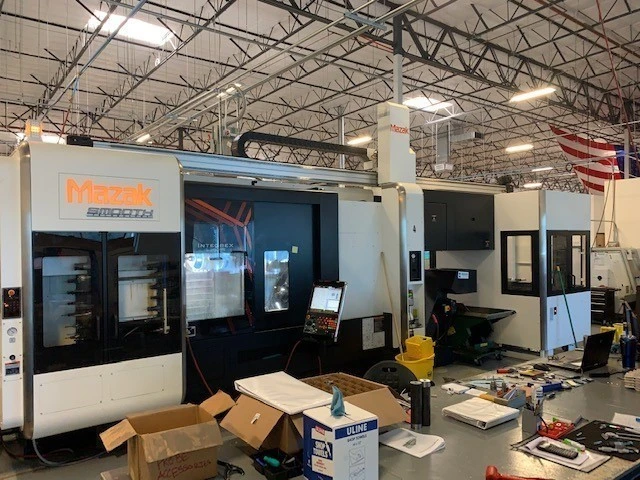

THIS 2017 INTEGREX i-200ST HAS A GL-100F GANTRY, SMOOTH X CONTROL, 72 POSITION ATC AND 9 POSITION LOWER TURRET, 1000 PSI COOLANT THRU SPINDLE AND 60" CENTERS.
SPECIFICATIONS:
MAX. SWING 25.9"
MAX. MACHINING DIA (UPPER TURRET) 25.9"
MAX. MACHINING DIA (LOWER TURRET) 16.54"
MAX. MACHINING LENGTH 59.8"
MAX. BAR WORK CAPACITY (MAIN SPINDLE) 2.5"
MAX. BAR WORK CAPACITY (SECOND SPINDLE) N/A
X-AXIS TRAVEL 24.21"
Y-AXIS TRAVEL 9.84"
Z-AXIS TRAVEL 62.4"
X2-AXIS TRAVEL (LOWER TURRET) 9.05"
Z2-AXIS TRAVEL (LOWER TURRET) 54.65"
B-AXIS TRAVEL 30 DEG - 210 DEG
MAIN SPINDLE:
CHUCK SIZE 8"
MAIN SPINDLE SPEED 5000 RPM
MAIN SPINDLE NOSE/SPINDLE BORE/BAR CAP A2-8/ 2.99"/ 2.5"
BEARING ID 4.72" MINIMUM
MAIN SPINDLE 0.0001 DEG
SECOND SPINDLE:
CHUCK SIZE 8"
SECOND SPINDLE SPEED 5000 RPM
SECOND SPINDLE TRAVEL (W-AXIS) 60.6"
SECOND SPINDLE NOSE/ BORE A2-6/2.99"
BEARING ID 4.72" MINIMUM
MAIN SPINDLE 0.0001 DEG
MILLING SPINDLE:
MILLING SPINDLE TYPE SINGLE SPINDLE TURRET W/ATC
MILLING SPINDLE SPEED 12000 RPM
MAX. MILLING SPINDLE TORQUE 120 NM
TOOL SHANK HEIGHT 1"
BORING BAR SHANK DIAMETER 1.575"
MIN MILLING SPINDLE INDEXING INCREMENT 0.0001 DEG
LOWER TURRET:
TURRET TYPE 9 POSITION DRUM TURRET
NUMBER OF TOOLS 9
TOOL SHANK HEIGHT 1"
BORING BAR SHANK DIAMETER 1.26"
TURRET INDEXING TIME 0.14 SEC/1 STEP
RAPID TRAVERSE RATE X-AXIS 1,969 ipm
RAPID TRAVERSE RATE Y-AXIS 1,575 ipm
RAPID TRAVERSE RATE Z-AXIS 1,969 ipm
RAPID TRAVERSE RATE X2-AXIS (LOWER) 1,969 ipm
RAPID TRAVERSE RATE Z2-AXIS (LOWER) 1,969 ipm
RAPID TRAVERSE RATE W-AXIS 1,181 ipm
TOOL SHANK CAPTO
CHANGER SYSTEM:
TOOL STORAGE CAPACITY 72 TOOLS
MAX. TOOL DIA/LENGTH (FROM GAUGE LINE) 3.54"
(WHEN ADJ. POCKET EMPTY) 4.92"/15.75"
MAX. TOOL WEIGHT 5.45
TOOL SELECTION METHOD SHORTEST PATH
MACHINE HEIGHT 107"
FLOOR SPACE REQUIREMENT 193.3" X 110.2"
MACHINE WEIGHT 35,596 lbs
MAZATROL SMOOTH X CNC
19'' COLOR LCD (TOUCH SCREEN)
WINDOWS 8 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL. OVERLOAD DETECTION SYSTEM
EIA/ISO PACKAGE
SMOOTH STANDARD PACKAGE FOR M/C
3-D COORDINATE CONVERSION
GOO SLOPE CONSTANT
CYLINDRICAL (G07) & POLAR COORDINATE (G12) (EIA)
ABSOLUTE POSITIONING SYSTEM
(LI NEAR AXES)
X,Y,Z PITCH ERROR COMPENSATION
MILLING-SPINDLE SYNCHRONOUS TAPPING
EIA 1ST SPINDLE & MILL SPINDLE INDEPENDENT ROTATION
INCH/METRIC CONVERSION
SD MEMORY I/F (1-PORT) + USB I/F(1-PORT)
LAN PORT
USB I/F (1-PORT)
SIGNAL TOWER (3 COLORS LIGHTS,SQUARE)
MIST COLLECTOR (GP1000)
COOLANT THROUGH MILLING HEAD
ROTARY-TOOL SPINDLE 12000 RPM (OIL & AIR LUBRICATION)
24KW ATS SYS. UC2 215/66 CHUCK w/ Y-1530RE NON-THROUGH CYLINDER
HEAD(UP-TURRET)
5KG/71PSI THRU COOLANT(UPPER-TURRET)FLOOD COOLANT SIMUL-FLOW
PREPARATION FOR CHIP CONVEYOR (SIDE/CONSEP OR HINGE) US
LNS TURBO MICRO HINGE 250 CHIP CONVEYOR (60'' BED ONLY)
1ST SPINDLE MOTOR AC
22KW(30HP)/ A2-06 NOSE
1ST SPINDLE SPEED 5000 RPM
C-AXIS 0.0001 DEGREE INCREMENT (1ST SPINDLE)
SECOND SPINDLE MOTOR AC18.5KW(25HP)/ A2-06 NOSE
SECOND SPINDLE SPEED 5000 RPM
2ND SPINDLE C-AXIS WITH Cl-C2 0.0001 DEGREE INCREMENTS
CHUCK AIR BLAST (SECOND SPINDLE)
8" THRU-HOLE CHUCK B-208A615 (1ST SPD.)THRU-HOLE CYL. S1552
8" CHUCK 8-208 SECOND SPINDLE WITH NON-THRU HOLE CYL.
72 CAPTO-TOOL MAGAZINE
NUMBER DISPLAY MG PANEL (NIA TOOL ID)
B-AXIS 0.0001 DEGREE CONTOURING (REQUIRES EIA/ISO)
LOWER 9 POSITION DRUM TURRET
TOOL EYE (AUTOMATIC) FOR UPPER AND LOWER TURRET
AUTO CHUCK JAWS OPEN/CLOSE (1&2 SPINDLE)
PREP. FOR l000 PSI SUPER FLOW THRU COOLANT(UPPER-TURRET)
MAZAK SUPER FLOW TB HIGH PRES. COOLANT UNIT (1000PSI/8GPM)
AUTO PECKING CYCLE WITH LOAD DETECTION
CHUCK OPEN/CLOSE CONFIRMATION (1ST & 2ND SPINDLE)
AUTO POWER ON/OFF + WARM-UP
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
ROLLER GUIDES
COOLERS FOR BALL SCREW(X-AXIS)
WORK SETTING ERROR COMPENSATION (G54.4)
Y-AIS CONTROL
F)TOOL RADIUS COMPENSATION / 5-AXIS (G41.5 / G42.5)
5-AXIS MACHINING PACKAGE FOR SMOOTHX
WORK MEASURING SYSTEM RMP 60 OR RMP 60
SIMULTANEOUS 5 AXES FOR 2ND SPINDLE
MAXIMUM PROGRAM SIZE : 32MB
TAIL CENTER ATTACHMENT (LOWER TURRET)
GANTRY ROBOT GLlOOF/PITCH-FEED TYPE 2/D3-HAND/JAW-AB
MT CONNECT ADAPTER SOFTWARE
SB4MTS SMARTBOX PACKAGE (ONE PER MACHINE) W/ SENSOR PREP SMARTBOX STAND
ATS SYSTEM UC2 180/53 A2-6 CHUCK ONLY (FOR 2.99" BORE)
SMOOTH SET & INSPECT (INCLUDES SET&INSPECT & MAZAK I/F-N0056)
INTELLIGENT SAFETY SHIELD
(AUTO & MANUAL □PER.)
COMPLETE COOLANT SYSTEM
ELECTRICAL CONTROL BOX UL STANDARD (480V)
KEN OKUYAMA DESIGN
POWER TRANSFORMER FOR NORTH AMERICAN MARKET
RELOCATION DEVICE
