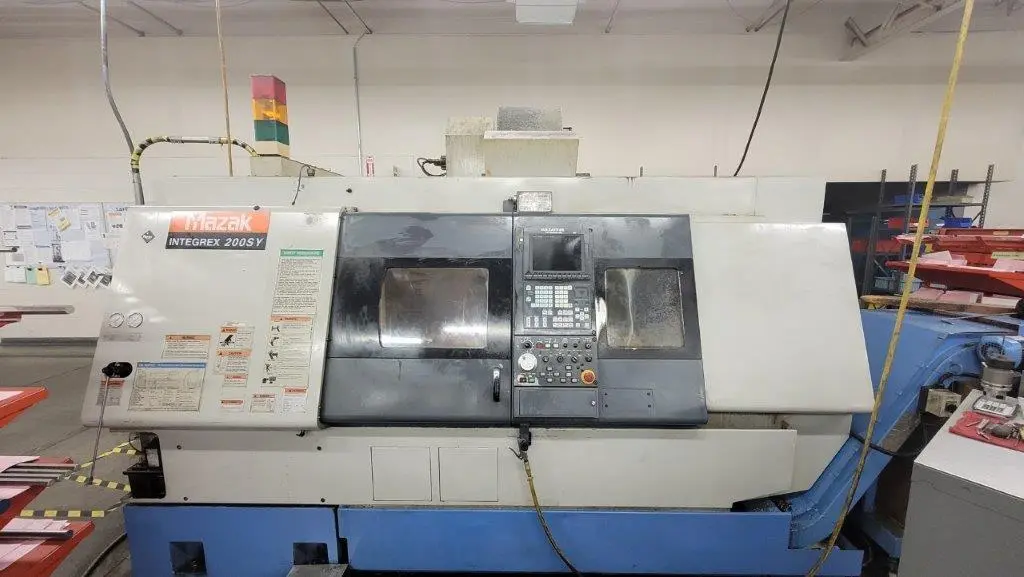

MAZAK INTEGREX 200SY
CNC LATHES MULTI AXIS
THIS INTEGREX 200SY IS A 40" MACHINE WITH A FUSION 640MT CONTROL, 10" & 8" KITAGAWA CHUCKS AND 40 POSITION ATC WITH 25 TOOL HOLDERS.
| Maximum Swing | 21.26" |
| Main Spindle Bore/Max Bar Capacity | 2.4” / 2.0” |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 40" |
| X-Axis Travel (X1, X2, X3) | 20.87" |
| Z-Axis Travel (Z1, Z2, Z3) | 41.92" |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2.75" |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20/ 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 1.73" |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 5,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 10 |
| ATC Magazine Capacity | 40 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL FUSION 640MT) |
MAZATROL PC FUSION 640MT CONTROL
2” BAR CAPACITY
10” MAIN CHUCK (KITAGAWA QB 310)
7.5” SUB-SPINDLE CHUCK (KITAGAWA QB 206)
CHIP CONVEYOR
40 ATC WITH KM-63 CONNECTION (WILL COME WITH 25 TOOL HOLDERS)
