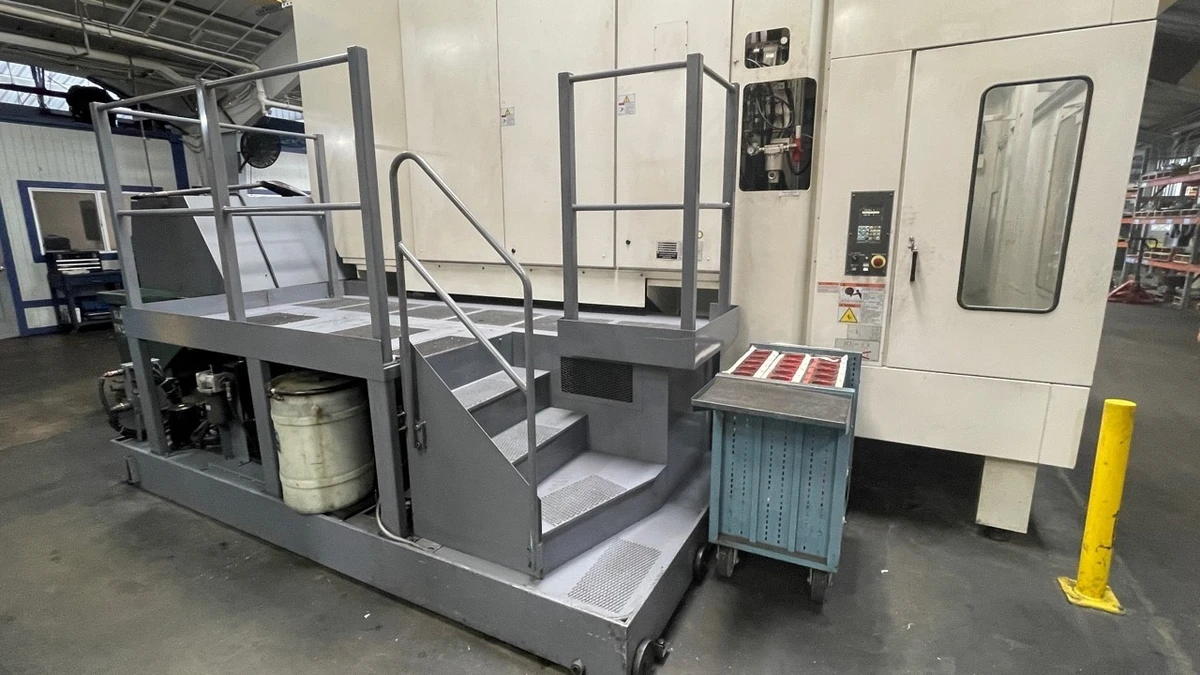

MAZAK INTEGREX e-1060V/6
MACHINING CENTERS, VERTICAL
THIS INTEGREX e-1060V/6 HAS A MATRIX CONTROL, 32" CHUCK (2-800mm TAP PALLET), 2 PALLETS, 213 PSI COOLANT THRU, 600 RPM/ 50 HP MOTOR, 10000 RPM MILLING SPEED AND RENISHAW PROBE.
| X Travel | 60.04" |
| Y Travel | 41.73" |
| Z Travel | 52.96" |
| Spindle Speed | 600 rpm |
| Tool Capacity (ATC) | 80 |
| Table Size (W) | 41.34" |
| Table Size (L) | 39.37" |
| Main Spindle Motor | 50 hp |
| Spindle Taper | CAT 50 |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 213 psi |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Multiple Pallets | Yes |
| Palletech System Number of Pallets | 2 |
| Control | CNC (MAZATROL MATRIX) |
MAZATROL MATRIX CONTROL
15" COLOR LCD
32" CHUCK
MAXIMUM PROGRAM SIZE 8MB
CARDBUS I/F (2-SLOT)
LAN PORT
USB I/F
THRU SPINDLE COOLANT WITH 213 PSI
LATHE SPINDLE MOTOR 50HP
LATHE SPINDLE SPEED 600 RPM
C-AXIS 0.0001 DEGREE INCREMENT
80 TOOL CHAIN MAGAZINE
MANUAL PULSE GENERATOR
MILLING SPINDLE MOTOR 50HP
MILLING SPINDLE SPEED 10,000 RPM
B-AXIS 0.0001 DEGREE CONTOURING
CONSEP CHIP CONVEYOR
2 PALLET CHANGER
800MM LOCATION BORE TAP PALLET (2)
WORKPIECE AIR BLAST
ADDITIONAL WORK LIGHT
TOOL EYE (AUTOMATIC)
OVERLOAD DETECTION SYSTEM
RENISHAW PROBE
