Used 2014 OKUMA LU 4000M-2SC-1250 | CNC LATHES MULTI AXIS
Have one to sell?
ConditionUsed
1 available

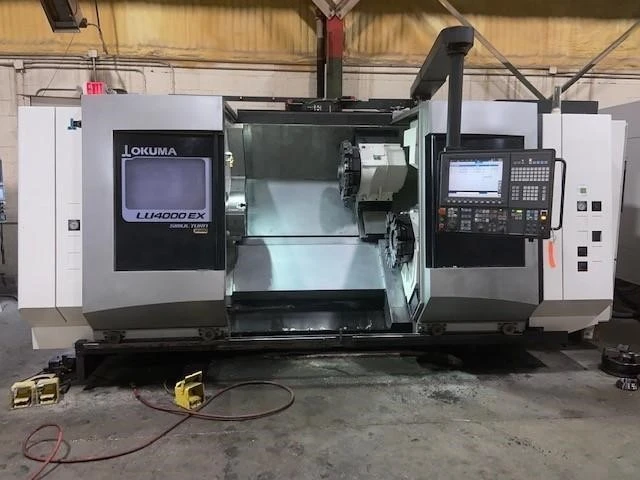

THIS 2014 OKUMA LU 4000M HAS AN UPPER AND LOWER TURRET, 15" CHUCK, 3D ANIMATION, PROGRAMMABLE TAILSTOCK, C AXIS AND OKUMA OSP 300L CONTROL.
OKUMA OSP300L CONTROL
TOUCH SETTER
PROGRAMMABLE TAILSTOCK
3D ANIMATION
EXP AUTO CHAMFERING
SYNCHRONOUS TAPPING
TOOL WEAR COMPENSATION
TOOL OFFSETS (96)
TURRET POSITION COMPENSATION
HI-CUT PRO
SPINDLE ORIENT/M-AXIS ORIENT
C-AXIS
AUTO DOOR
CHIP CONVEYOR
COOLANT TANK & PUMP
THIS 2014 OKUMA LU 4000M HAS AN UPPER AND LOWER TURRET, 15" CHUCK, 3D ANIMATION, PROGRAMMABLE TAILSTOCK, C AXIS AND OKUMA OSP 300L CONTROL.
Imperial
| Maximum Swing | 26.38" |
| Max Turning Diameter | 18.9" |
| Main Spindle Bore/Max Bar Capacity | 3.5"/ 3.15" |
| Tail Stock/Sub Spindle | Tail Stock |
| Distance Between Centers | 50" |
| X-Axis Travel (X1, X2, X3) | 11.81" |
| Z-Axis Travel (Z1, Z2, Z3) | 50" |
| C-Axis Indexing (1, 2) | YES |
| Main Spindle Chuck Size | 15" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Maximum Bar Work | 3.15" |
| Main Spindle Speed | 4,200 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 |
| Turret Tool Positions 1, 2 | 24 |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Control | CNC (OKUMA OSP300L) |
OKUMA OSP300L CONTROL
TOUCH SETTER
PROGRAMMABLE TAILSTOCK
3D ANIMATION
EXP AUTO CHAMFERING
SYNCHRONOUS TAPPING
TOOL WEAR COMPENSATION
TOOL OFFSETS (96)
TURRET POSITION COMPENSATION
HI-CUT PRO
SPINDLE ORIENT/M-AXIS ORIENT
C-AXIS
AUTO DOOR
CHIP CONVEYOR
COOLANT TANK & PUMP
