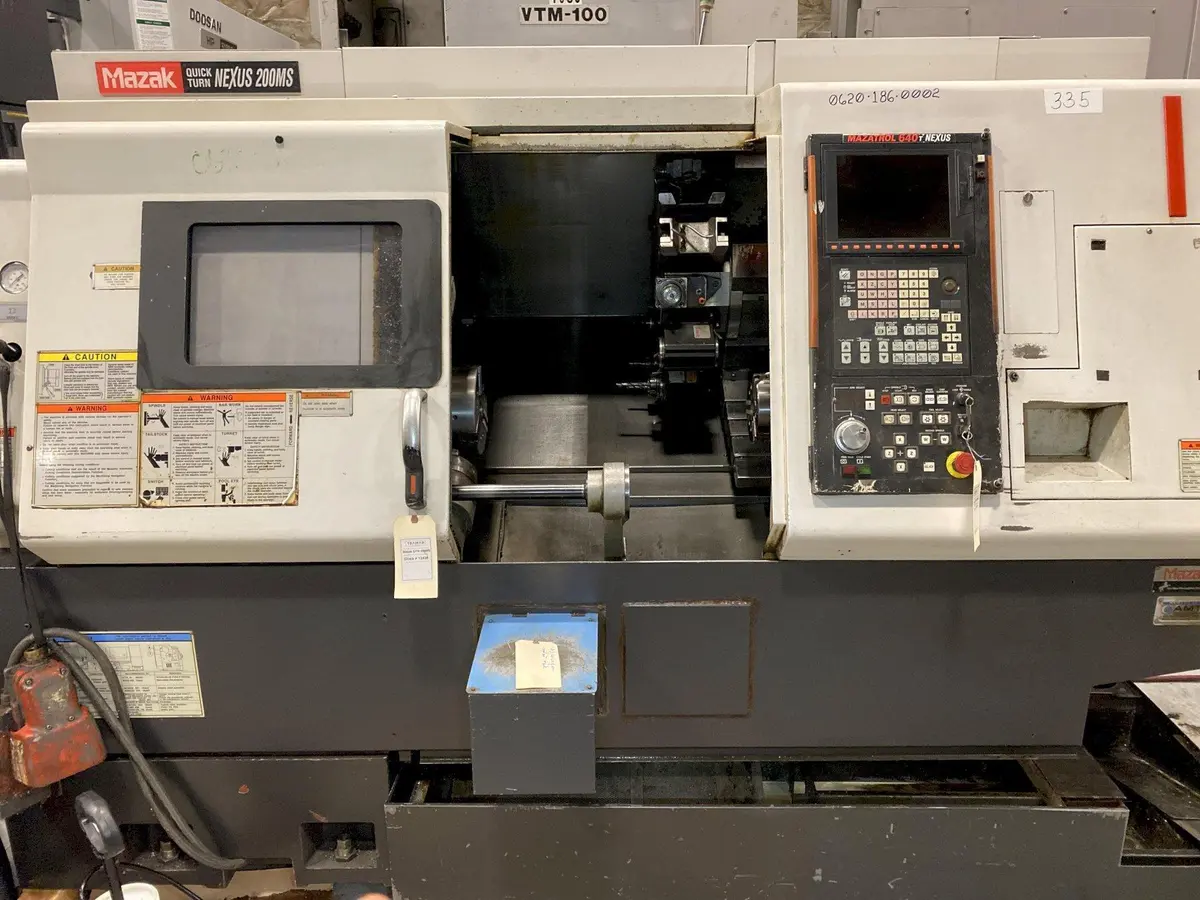

MAZAK QTN 200MS
Have one to sell?
ConditionUsed
1 available
THIS QTN 200MS HAS A NEXUS 640T CONTROL, MILLING, SUB-SPINDLE 0.0001 DEGREE, LIVE TOOLING, ATLM, 8" & 6" CHUCKS AND PARTS CATCHER.
MAZATROL 640T NEXUS CNC CONTROL
SUB SPINDLE 0.0001"
LIVE TOOLING
CONVERSATIONAL PROGRAMMING
COOLANT TANK & PUMP
CHIP CONVEYOR
AUTO TOOL LENGTH MEASUREMENT
AVAILABLE MANUALS
PARTS CATCHER
600 MACRO VARIABLE
THIS QTN 200MS HAS A NEXUS 640T CONTROL, MILLING, SUB-SPINDLE 0.0001 DEGREE, LIVE TOOLING, ATLM, 8" & 6" CHUCKS AND PARTS CATCHER.
Imperial
| Maximum Swing | 26.4" |
| Max Turning Diameter | 14.75" |
| Main Spindle Bore/Max Bar Capacity | 2.99"/ 2.5" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Distance Between Centers | 21.28" |
| X-Axis Travel (X1, X2, X3) | 9" |
| Z-Axis Travel (Z1, Z2, Z3) | 22.75" |
| C-Axis Indexing (1, 2) | 0.001° |
| W-Axis Travel Sub Spindle | 23 in |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.99" |
| Main Spindle Maximum Bar Work | 2.5" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2.07 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 7.0 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Control | CNC (MAZATROL NEXUS 640) |
| Dimensions | 117" x 73" x 73" |
| Weight | 11000 lb |
MAZATROL 640T NEXUS CNC CONTROL
SUB SPINDLE 0.0001"
LIVE TOOLING
CONVERSATIONAL PROGRAMMING
COOLANT TANK & PUMP
CHIP CONVEYOR
AUTO TOOL LENGTH MEASUREMENT
AVAILABLE MANUALS
PARTS CATCHER
600 MACRO VARIABLE
