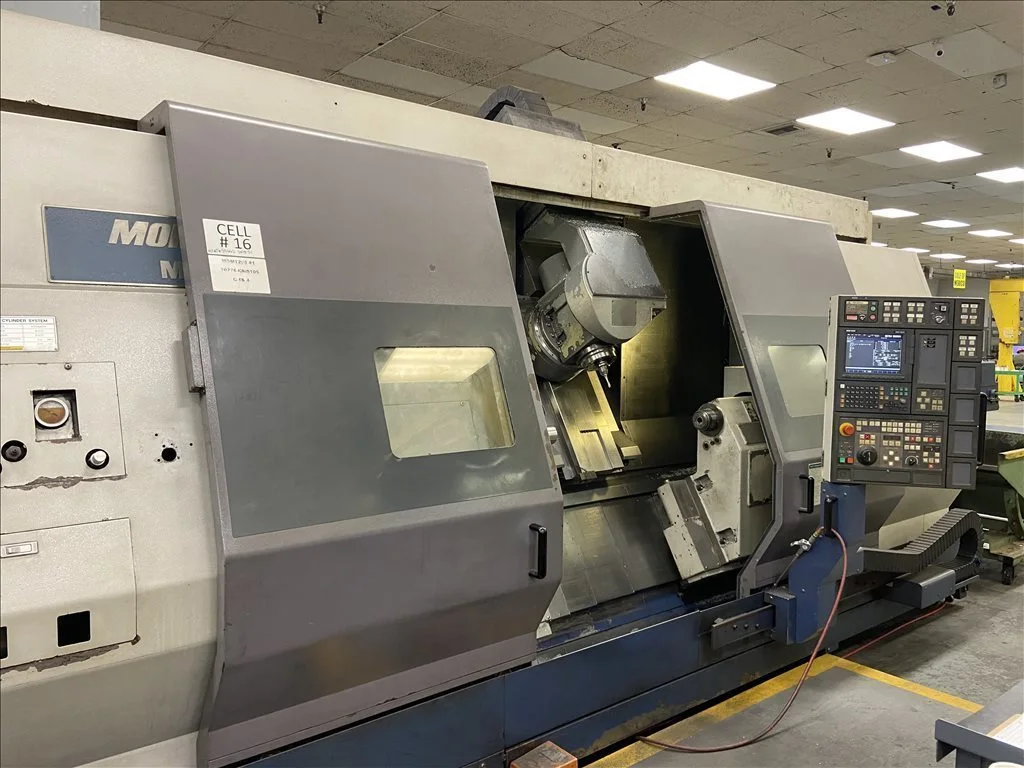

MORI SEIKI MT 253/ 1500 5 AXIS LATHE
Have one to sell?
ConditionUsed
1 available
THIS MT 253/1500 IS A 60" MULTI AXIS LATHE WITH A 60 POSITION ATC , TAILSTOCK, 8000 RPM ROTARY MILLING SPEED, INCLUDES A TRANSFORMER AND ASSORTED MILL & TURN TOOLING INCLUDED - SEE PICTURES.
MORI SEIKI MSX-501 III CNC CONTROL
60-POSITION AUTOMATIC TOOL CHANGER
ASSORTED MILL AND TURN TOOLING INCLUDED - SEE PHOTOS
CHIP CONVEYOR 186" X 78" X 60" H 1500 LBS.
TRANSFORMER 28" X 22" X 30" H 700 LBS
THIS MT 253/1500 IS A 60" MULTI AXIS LATHE WITH A 60 POSITION ATC , TAILSTOCK, 8000 RPM ROTARY MILLING SPEED, INCLUDES A TRANSFORMER AND ASSORTED MILL & TURN TOOLING INCLUDED - SEE PICTURES.
Imperial
| Maximum Swing | 31.5" |
| Max Turning Diameter | 22.44" |
| Main Spindle Bore/Max Bar Capacity | 3.35"/ 3.0" |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Maximum Swing Over Cross Slide | 16.54" |
| Distance Between Centers | 67.01" |
| Maximum Cutting Length | 60.24" |
| X-Axis Travel (X1, X2, X3) | 25" |
| Z-Axis Travel (Z1, Z2, Z3) | 62.8" |
| Y-Axis Travel (Y1, Y2, Y3) | +/-4.33" |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.38" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 3,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| ATC Magazine Capacity | 60 |
| B-Axis Travel | -120° / +105° |
| B Axis Rotary Tool Spindle Speed | 8000 rpm |
| Chip Conveyor | Yes |
| Number of Available Live Tool Holders | 0 |
| Multi Tap Transformer | Yes |
| Control | CNC (Mori Seiki MSX-501 III) |
MORI SEIKI MSX-501 III CNC CONTROL
60-POSITION AUTOMATIC TOOL CHANGER
ASSORTED MILL AND TURN TOOLING INCLUDED - SEE PHOTOS
CHIP CONVEYOR 186" X 78" X 60" H 1500 LBS.
TRANSFORMER 28" X 22" X 30" H 700 LBS
