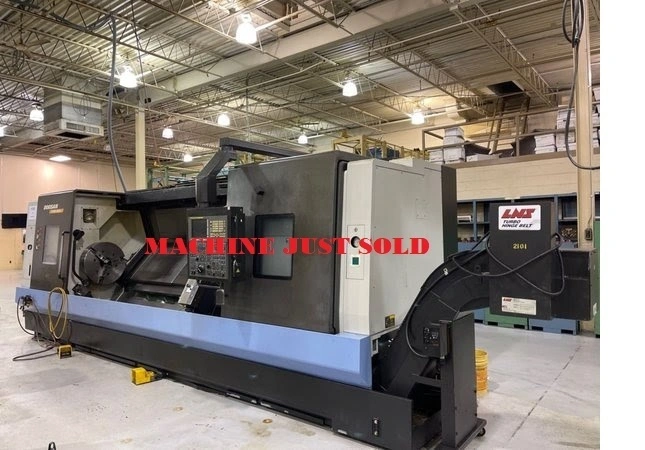

DOOSAN PUMA 480XL

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Document (1)

Quote 22405 Doosan Lathe.pdf

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
DOOSAN
Model:
PUMA 480XL
Condition:
Good
Year:
2009
Stock #:
210095
Status:
For Sale

Description

THIS PUMA 480XL HAS A FANUC 32i-A SERIES CNC CONTROL, 120" CENTERS, 24" SAMCHULLY CHUCK WITH A 7.1" BORE & 6.5" BAR CAP, SMW HYDRAULIC STEADY AND LOW HOURS.

Max. Swing35.4"899.16 mm
Max Turning Diameter120.7"3,065.8 mm
Spindle Bore/Max Bar Capacity7.1"/ 6.5"7.1"/ 6.5"
Z Travel123.4"3,134.4 mm
X Travel14.3"363.22 mm
Machining Length120.7"3,065.8 mm
Chuck Size24"609.6 mm
Chuck TypeHydraullicHydraullic
Spindle Motor60 hp
Spindle Speeds (RPM)15001500
Spindle Bore7.1 in
Max. Bar Capacity6.5"165.1 mm
Turret Tool Positions1212
Chip ConveyorYesYes
Steady RestYesYes
ControlCNC (FANUC 32i-A)CNC (FANUC 32i-A)
Dimensions313" x 103” x 115”313" x 103” x 115”
Weight27,600 LBS27,600 LBS

FANUC 32i-A SERIES CNC CONTROL
- CHUCK 24" 3-JAW SAMCHULLY HYDRAULIC CHUCK
- TWO SPEED GEARBOX
- 12 POSITION TURRET

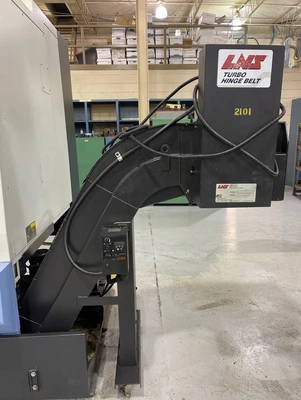

- STEEL BELT CHIP CONVEYOR (LNS TURBO)
- BOX WAYS
- TOOL SETTER (AUTO)
- SMW AUTOBLOK HYDRAULIC STEADY REST
- ALL AVAILABLE MANUALS
- PROGRAMMABLE TAIL STOCK
- ONLY 2700 CUTTING HOURS (USED FOR PRECISION AEROSPACE WORK)
