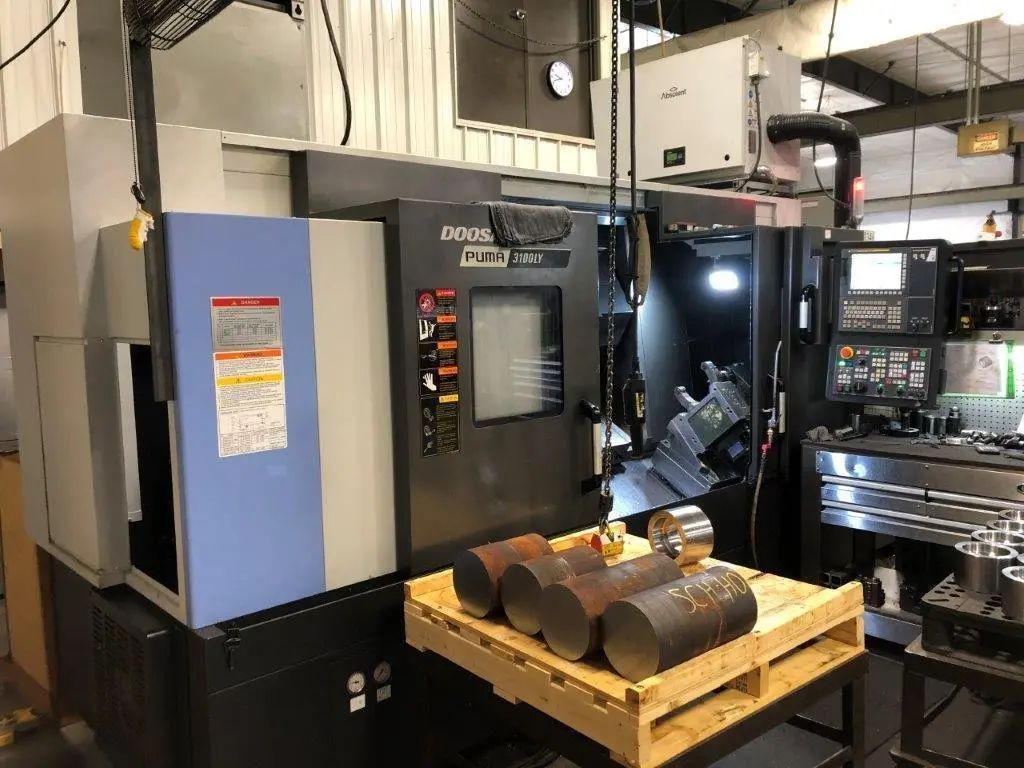

DOOSAN PUMA 3100LY
Have one to sell?
ConditionUsed
1 available
THIS 3100LY HAS 50' CENTERS, 12" CHUCK, 4" BAR CAPACITY, BOX WAYS, LIVE TOLING, TAILSTOCK, STEADY REST AND 3 LIVE TOOL HOLDERS.
DOOSAN FANUC i-SERIES
BOX WAYS
LIVE TOOLING
CHIP CONVEYOR
TAIL STOCK
STEADY REST
TOOL SETTER
3 LIVE TOOL HOLDERS
STATIC TOOL HOLDERS
C-AXIS
Y-AXIS
1400 CUTTING HOURS
THIS 3100LY HAS 50' CENTERS, 12" CHUCK, 4" BAR CAPACITY, BOX WAYS, LIVE TOLING, TAILSTOCK, STEADY REST AND 3 LIVE TOOL HOLDERS.
Imperial
| Maximum Swing | 26.38" |
| Max Turning Diameter | 16.5" |
| Main Spindle Bore/Max Bar Capacity | 4.4"/ 4.0" |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Distance Between Centers | 50.6" |
| X-Axis Travel (X1, X2, X3) | 11.5" |
| Z-Axis Travel (Z1, Z2, Z3) | 50.4 |
| Y-Axis Travel (Y1, Y2, Y3) | 5.1 |
| C-Axis Indexing (1, 2) | .0001 |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 4.4" |
| Main Spindle Maximum Bar Work | 4" |
| Main Spindle Speed | 2,800 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 5000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Number of Available Live Tool Holders | 3 |
| Control | CNC (FANUC) |
| Dimensions | 178" X 83" X 92" |
| Weight | 17,640 LBS |
DOOSAN FANUC i-SERIES
BOX WAYS
LIVE TOOLING
CHIP CONVEYOR
TAIL STOCK
STEADY REST
TOOL SETTER
3 LIVE TOOL HOLDERS
STATIC TOOL HOLDERS
C-AXIS
Y-AXIS
1400 CUTTING HOURS
