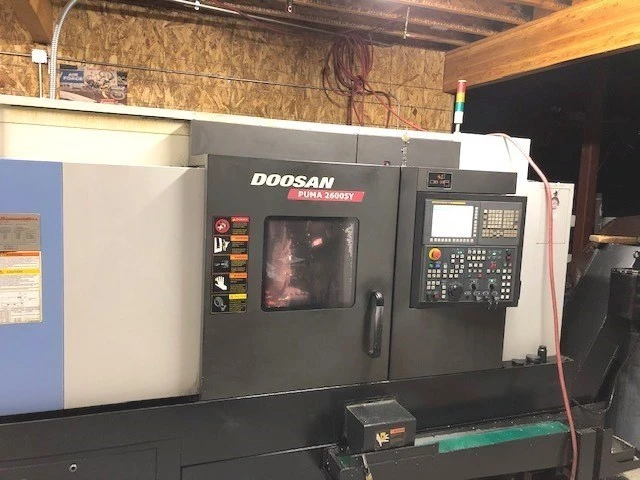

DOOSAN PUMA 2600SY MULTI AXIS LATHE WITH SUB-SPINDLE AND Y AXIS
Have one to sell?
ConditionUsed
1 available
THIS PUMA 2600SY HAS A FANUC CONTROL, (2) X-AXIS ROTARY HEADS & (2) Z AXIS ROTARY HEADS, 10" 7 8" CHUCKS, BAR FEEDER AND PARTS CATCHER.
FANUC 31I CNC CONTROL
(2) X - AXIS ROTARY HEADS
(2) Z - AXIS ROTRAY HEADS
10" 3 JAW HYDRAULIC CHUCK MAIN SPINDLE
8" 3- JAW HYDRAULIC CHUCK ON SUB SPINDLE
BAR FEED INTERFACE
CHIP CONVEYOR
LNS QUICK LOAD SERVO BAR FEED WITH 9 LINERS
PARTS CATCHER & CONVEYOR
TOOL PRESETTER
THIS PUMA 2600SY HAS A FANUC CONTROL, (2) X-AXIS ROTARY HEADS & (2) Z AXIS ROTARY HEADS, 10" 7 8" CHUCKS, BAR FEEDER AND PARTS CATCHER.
Imperial
| Maximum Swing | 30.7" |
| Max Turning Diameter | 14.8" |
| Main Spindle Bore/Max Bar Capacity | 3.34"/ 3.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| X-Axis Travel (X1, X2, X3) | 10.2" |
| Z-Axis Travel (Z1, Z2, Z3) | 32.7" |
| Y-Axis Travel (Y1, Y2, Y3) | 4.1" |
| C-Axis Indexing (1, 2) | .001, .001 INDEXING |
| W-Axis Travel Sub Spindle | 29 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.34" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 3,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.4" |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,500 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 11 |
| Turret Tool Positions 1, 2 | 24 |
| Turret Rotary Tool Spindle Speed 1, 2 | 5000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.5 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Number of Available Live Tool Holders | 4 |
| Control | CNC (FANUC 31i) |
| Weight | 16,100 LBS |
FANUC 31I CNC CONTROL
(2) X - AXIS ROTARY HEADS
(2) Z - AXIS ROTRAY HEADS
10" 3 JAW HYDRAULIC CHUCK MAIN SPINDLE
8" 3- JAW HYDRAULIC CHUCK ON SUB SPINDLE
BAR FEED INTERFACE
CHIP CONVEYOR
LNS QUICK LOAD SERVO BAR FEED WITH 9 LINERS
PARTS CATCHER & CONVEYOR
TOOL PRESETTER
