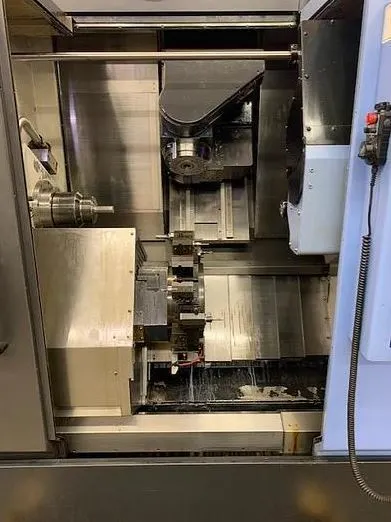

DOOSAN MX 1600ST LATHE WITH SUB-SPINDLE AND LOWER TURRET

DOOSAN MX 1600ST LATHE WITH SUB-SPINDLE AND LOWER TURRET

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DOOSAN
Model:
PUMA MX 1600ST
Condition:
Good
Year:
2013
Stock #:
210103
Status:
For Sale

Description

THIS 2013 DOOSAN MX 1600ST HAS (2) 6" CHUCKS , FANUC 31i-B5 CONTROL, 40 POSITION ATC AND 16 POSITION LOWER TURRET, LNS BARFEEDER, ALL TOOLHOLDERS FOR 16 STATION BMT-45 TURRET INCLUDING 3 LIVE TOOLS.

Maximum Swing26.77"679.96 mm
Max Turning Diameter13"330.2 mm
Main Spindle Bore/Max Bar Capacity2.44"/ 2.0"2.44"/ 2.0"
Tail Stock/Sub SpindleSub SpindleSub Spindle
Distance Between Centers35.4"899.16 mm
Maximum Cutting Length35.4"899.16 mm
X-Axis Travel (X1, X2, X3)17.7"/ 6.5"17.7"/ 6.5"
Z-Axis Travel (Z1, Z2, Z3)36.8" /36.4"36.8" /36.4"
Y-Axis Travel (Y1, Y2, Y3)6.7"/ + 3.4"6.7"/ + 3.4"
Main Spindle Chuck Size0.2362"6 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.44"61.976 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed6,000 RPM6,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)2020
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size2.02.0
Sub Spindle/2nd Spindle Chuck TypeColletCollet
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)2020
Turret Tool Positions 1, 21616
B-Axis Travel+/- 120DEG+/- 120DEG
B-Axis Milling Spindle Speed12,000 RPM12000 rpm
B-Axis Milling Spindle Horse Power1212
Bar FeedYesYes
Chip ConveyorYesYes
ControlCNC (Fanuc 31i-B5)CNC (Fanuc 31i-B5)
Dimensions150" x 109" x 100"150" x 109" x 100"
Weight25,570 lbs25,570 lbs

TRAVELS:
-X AXIS: 17.7"
-Y AXIS: +/- 3.4"
-Z AXIS: 36.8"
-B AXIS: +/- 120DEG

RAPID TRAVERSE RATES
-X: 1417 IPM
-Y: 1024 IPM
-Z: 1417 IPM

MAIN SPINDLE CHUCK: ROYAL QG-65 COMPACT QUICK CHANGE ACCU-LENGTH COLLET CHUCK
MAXIMUM SWING: 26.77"
MAXIMUM CUTTING DIAMETER: 13"
MAXIMUM MACHINING LENGTH: 35.4"
MAXIMUM BAR SIZE: 2"
MAIN SPINDLE HP: 20 HP
MAIN SPINDLE RPM: 6000 RPM
MAIN SPINDLE BORE: 2.44"
SPINDLE TAPER: CAPTO
2ND SPINDLE HP: 20 HP
2ND SPINDLE RPM: 6000 RPM
2ND SPINDLE CHUCK: ROYAL QG-65 COMPACT QUICK CHANGE ACCU-LENGTH COLLET CHUCK
MILLING SPINDLE HP: 12 HP
MILLING SPINDLE RPM: 12,000 RPM
NUMBER OF TOOL STATIONS: 40 ATC
MAXIMUM TOOL DIAMETER: 2.8"
MAX TOOL ADJACENT POCKETS EMPTY: 3.7"
MAXIMUM TOOL LENGTH: 7.9"
LOWER TURRET POSITIONS: 16

APPROX DIMENSIONS (LXWXH): 109" X 130" X 105.5"
APPROX MACHINE WEIGHT: 24,910 LBS

FANUC 31I-B5 CNC CONTROL FANUC
TOOL PRESETTER
WIRED FOR 220V (3 PHASE)(76.45 KVA
LNS CHIP CONVEYER
LNS QUICK LOAD SERVO 80 S2 BAR LOADER (6 FOOT)
ALL TOOL HOLDERS FOR 16 STATION BMT-45 TURRET INCLUDING (QTY. 3) LIVE TOOL HOLDERS
(QTY. 2) 3-JAW CHUCKS
MACHINE MANUALS
LEVELING PADS
