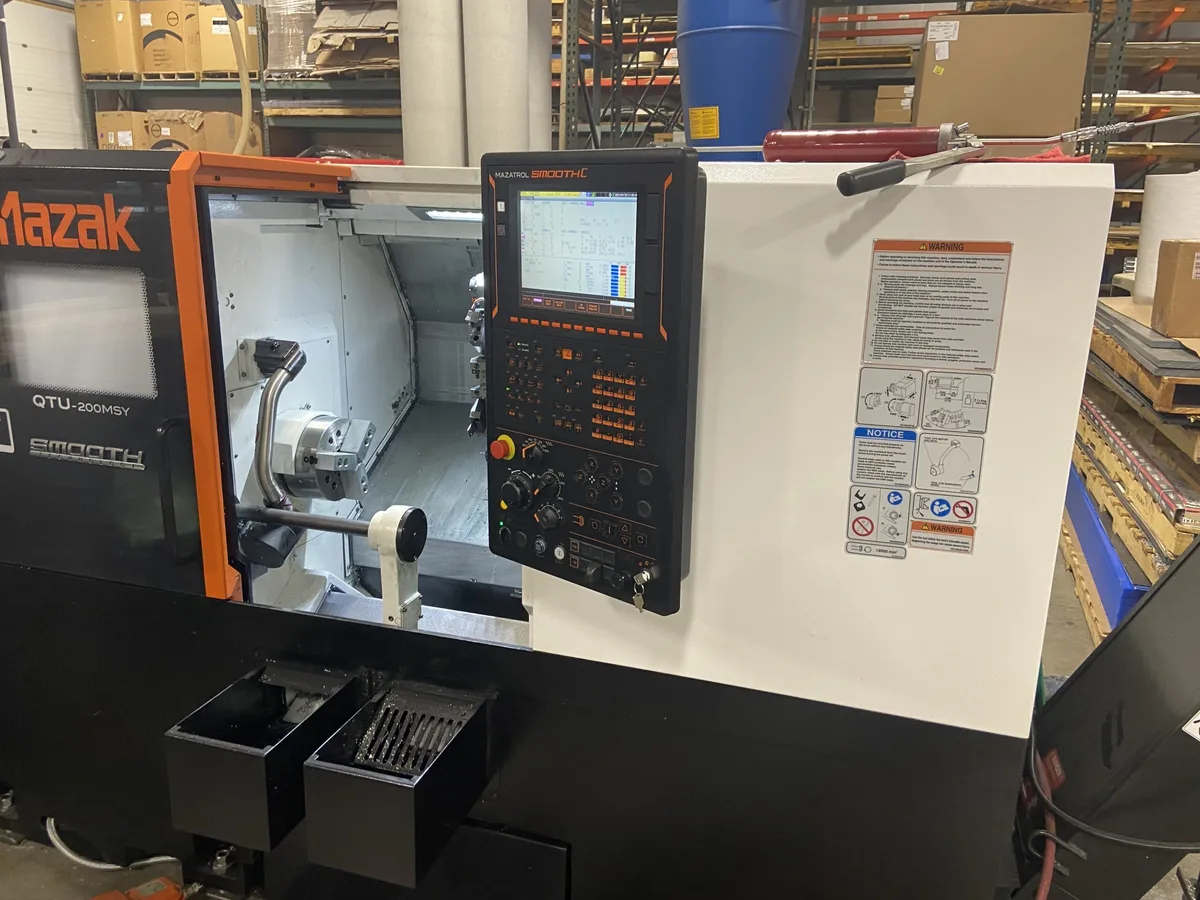

MAZAK QTU 200MSY MULTI-AXIS LATHE WITH LIVE TOOLING

Name: QUICK MACHINERY SALES.COM INC.
Address: 14770 North 78th Way, Ste. B, Scottsdale, AZ, 85260, US
Telephone: 480-423-9045

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

CNC LATHES MULTI AXIS

Manufacturer:

Model:

QTU 200MSY

Year:

2020

Stock #:

210107

Status:

For Sale

THIS 2020 QTU 200MSY HAS A MAZATROL SMOOTH C, LIVE TOOLING, MILLING, C-AXIS, SUB-SPINDLE, PARTS CATCHER AND BAR FEEDER.

ImperialMetric

Maximum Swing	26.6"	675.64 mm
Max Turning Diameter	14.76"	374.9 mm
Main Spindle Bore/Max Bar Capacity	2.44"/ 2.0"	2.44"/ 2.0"
Tail Stock/Sub Spindle	Sub Spindle	Sub Spindle
Distance Between Spindles	22.7"	576.58 mm
X-Axis Travel (X1, X2, X3)	8.5"	8.5"
Z-Axis Travel (Z1, Z2, Z3)	23.75"	23.75"
Y-Axis Travel (Y1, Y2, Y3)	4"	4"
C-Axis Indexing (1, 2)	yes	yes
Main Spindle Chuck Size	8"	203.2 mm
Main Spindle Chuck Type	Hydraulic	Hydraulic
Main Spindle Bore Diameter	2.4"	60.96 mm
Main Spindle Maximum Bar Work	2"	50.8 mm
Main Spindle Speed	6,000 RPM	6,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)	20/ 15	20/ 15
Sub Spindle/2nd Spindle Chuck Size	6	6
Sub Spindle/2nd Spindle Bore Size	2.04	2.04
Sub Spindle/2nd Spindle Chuck Type	Hydraulic	Hydraulic
Sub Spindle/2nd Spindle Speed	6,000 RPM	6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)	15/ 11	15/ 11
Turret Tool Positions 1, 2	12	12
Turret Rotary Tool Spindle Speed 1, 2	4500	4500
Bar Feed	Yes	Yes
Parts Catcher	Yes	Yes
Chip Conveyor	Yes	Yes
Control	CNC (MAZATROL SMOOTH C)	CNC (MAZATROL SMOOTH C)
