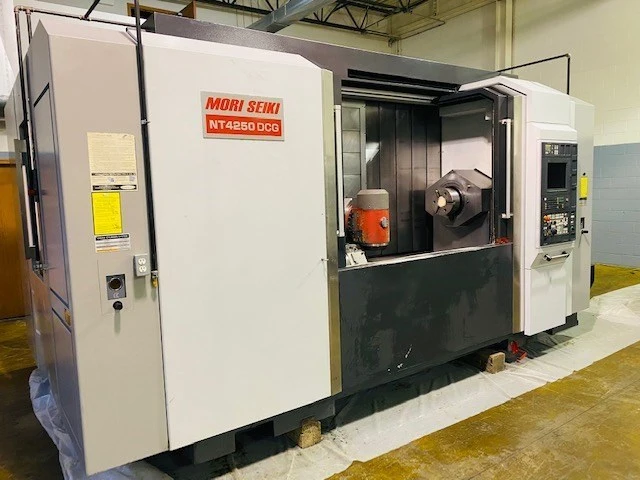

MORI- SEIKI NT 4250DCG/ 1500 SZ MULTI AXIS LATHE

MORI- SEIKI NT 4250DCG/ 1500 SZ MULTI AXIS LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MORI- SEIKI
Model:
NT 4250DCG/ 1500SZ
Condition:
Good
Year:
2005
Stock #:
210111
Status:
For Sale

Description

THIS MORI SEIKI NT 4250DCG/ 1500SZ HAS A 40 TOOL ATC AND 12 STATION LOWER TURRET, MSX 7111 FANUC CONTROL, (2) 10" 3-JAW HYDRAULIC CHUCKS, MAPPS IV PROGRAMMING AND HIGH PRESSURE COOLANT INTERFACE.

Maximum Swing28.7"728.98 mm
Max Turning Diameter25.9"657.86 mm
Main Spindle Bore/Max Bar Capacity3.6"/ 3.1"3.6"/ 3.1"
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Swing Over Cross Slide15.7"398.78 mm
Distance Between Centers73.3"1,861.8 mm
Maximum Cutting Length60.7"1,541.8 mm
X-Axis Travel (X1, X2, X3)24.6" + 4.9"/ 7.7"24.6" + 4.9"/ 7.7"
Z-Axis Travel (Z1, Z2, Z3)61.0" + 3.9"/ 60.0"61.0" + 3.9"/ 60.0"
Y-Axis Travel (Y1, Y2, Y3)+/- 8.3"+/- 8.3"
C-Axis Indexing (1, 2).0001 Deg..0001 Deg.
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.6"91.44 mm
Main Spindle Maximum Bar Work3.1"78.74 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3030
Sub Spindle/2nd Spindle Chuck Size1010
Sub Spindle/2nd Spindle Bore Size3.63.6
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed4,000 RPM4,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)3030
ATC Magazine Capacity4040
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 21200012000
Turret Rotary Tool Horse Power 1, 224.724.7
B-Axis Head Indexing0°0 deg
Chip ConveyorYesYes
ControlCNC (MSX 7111 FANUC 31IA5)CNC (MSX 7111 FANUC 31IA5)
Weight56,320 LBS.56,320 LBS.

MSX 7111 FANUC 31IA5 CNC CONTROL
MAPPS IV PROGRAMMING
HIGH PRESSURE COOLANT INTERFACE
MANUAL TYPE IN MACHINE TOOL PRESETTER REMOVABLE
CHIP CONVEYOR SIDE HINGE TYPE
CHUCK AIR BLOW FOR SUB SPINDLE
FAST DATA SERVER WITH ATA CARD
LOWER TURRET BOLT ON TYPE
30 HORSEPOWER MAIN AND SUB SPINDLE
MULTIPLE THREAD CUTTING
THREAD CUTTING RETRACT
CYLINDRICAL & HELICAL INTERPOLATION
NANO & POLAR COORDINATE INTERPOLATION
6GB PROGRAM STORAGE AREA FOR MAPPS DNC
640 METERS PART PROGRAM STORAGE
500 REGISTERED PROGRAMS
NANO SMOOTHING AI CONTOUR CONTROL FUNCTIONS II
CUSTOM MACRO B PROGRAMMING
TOOL OFFSETS 64 PAIRS DIAMETER/RADIUS DYNAMIC SWITCHING
(2) 10" 3-JAW HYDRAULIC CHUCKS
