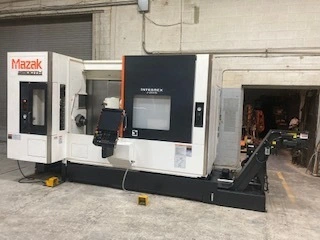

MAZAK INTEGREX J-200S MULTI AXIS LATHE WITH SUB-SPINDLE
CNC LATHES MULTI AXISTHIS 2019 J-200S HAS THE LATEST MAZATROL SMOOTH G CONTROL, ROYAL COLLET CHUCKS ON MAIN AND SECOND SPINDLE, TURNING AND MILL HOLDERS, C-AXIS 0.0001 DEGREE INDEXING ON BOTH SPINDLES AND 36 TOOL CAPTO C6 TOOL ATC.
Maximum Swing | 20.87" |
Max Turning Diameter | 19.69" |
Main Spindle Bore/Max Bar Capacity | 3.1" |
Tail Stock/Sub Spindle | Sub Spindle |
Maximum Cutting Length | 35.83" |
X-Axis Travel (X1, X2, X3) | 17.72 |
Z-Axis Travel (Z1, Z2, Z3) | 37.8 |
Y-Axis Travel (Y1, Y2, Y3) | 7.87 |
C-Axis Indexing (1, 2) | 0.0001 |
Main Spindle Chuck Type | Collet |
Main Spindle Bore Diameter | 3.1" |
Main Spindle Maximum Bar Work | 2.56" |
Main Spindle Speed | 5,000 RPM |
Main Spindle Horsepower (CONT. /30 MINS) | 15 |
Sub Spindle/2nd Spindle Chuck Size | 0 |
Sub Spindle/2nd Spindle Bore Size | 2.4" |
Sub Spindle/2nd Spindle Chuck Type | Collet |
Sub Spindle/2nd Spindle Speed | 5,000 RPM |
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 10 HP |
Main & Sub Spindle Synchronization | Yes |
ATC Magazine Capacity | 36 |
Turret Rotary Tool Spindle Speed 1, 2 | 12000 |
Turret Rotary Tool Horse Power 1, 2 | 0 |
B-Axis Travel | minus 30 deg. plus 210 deg. (5 deg. minimum indexing increment) |
Chip Conveyor | Yes |
Sub spindle indexing increment | 0.0001 |
Control | CNC (SMOOTH G CONTROL) |
Dimensions | 101” x 150" |
Weight | 20,282 LBS |
Specifications subject to revision;
Maximum swing—20.87”
Maximum machining diameter—19.69”
Maximum machining length—35.83”
Maximum bar work capacity—2.56”
Travels
X-axis—17.72”
Y-axis—7.87”
Z-axis—37.8”
B-axis—minus 30 deg. plus 210 deg. (5 deg. minimum indexing increment)
Main spindle speed—5,000 rpm
Main spindle motor—15 HP
Main spindle bore—2.99”
Minimum spindle indexing increment—0.0001 deg.
Second spindle speed—5,000 rpm
Second spindle motor—10 HP
Second spindle bore—2.4”
Second spindle indexing increment—0.0001 deg.
Milling spindle speed—12,000 rpm
Milling spindle motor—10 HP
Milling spindle taper—Capto C6
Automatic tool changer (ATC)—36 tools
Machine weight—20,282 lbs.
Floor space—101” x 150”
Condition—very good; inspect under power
Equipped with—
Mazak Mazatrol Smooth G control
Royal collet chuck main and second spindle
Turning and milling tool holders
