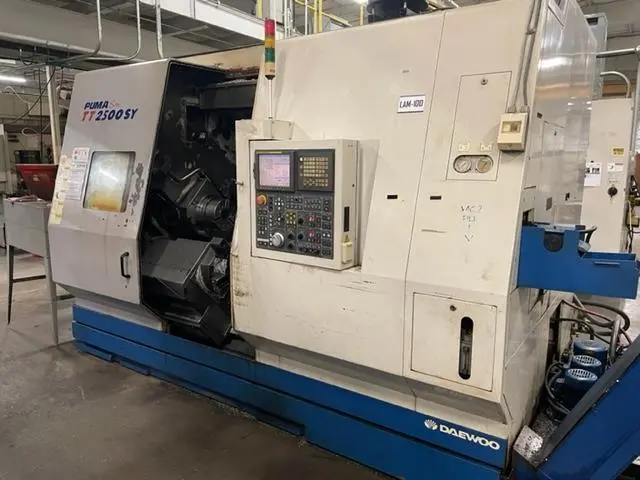

DOOSAN PUMA TT2500SY
Have one to sell?
ConditionUsed
1 available
THE DOOSAN PUMA TT2500SY HAS A 10" & 8" HYDRAULIC CHUCKS, 3.2" BAR CAP ON MAIN SPINDLE, UPPER & LOWER w/LIVE TOOLING, SUB-SPINDLE, COOLJET UNIT AND PARTS UNLOADER/ CONVEYOR.
FANUC 18I-TB
UPPER & LOWER TURRETS W/LIVE TOOLING
Y-AXIS ON UPPER TURRET
SUB SPINDLE
TOOL PRESETTER
COOLJET UNIT
PARTS UNLOADER/CONVEYOR
CHIP CONVEYOR
THE DOOSAN PUMA TT2500SY HAS A 10" & 8" HYDRAULIC CHUCKS, 3.2" BAR CAP ON MAIN SPINDLE, UPPER & LOWER w/LIVE TOOLING, SUB-SPINDLE, COOLJET UNIT AND PARTS UNLOADER/ CONVEYOR.
Imperial
| Maximum Swing | 31.5" |
| Max Turning Diameter | 15.4" |
| Main Spindle Bore/Max Bar Capacity | 3.2 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Distance Between Centers | 29.1" |
| X-Axis Travel (X1, X2, X3) | 10"/ 7.5" |
| Z-Axis Travel (Z1, Z2, Z3) | 31.5"/ 35.4" |
| Y-Axis Travel (Y1, Y2, Y3) | +/-2.4" (4.7") |
| W-Axis Travel Sub Spindle | 31.9 in |
| Main Spindle Chuck Size | 10 mm |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Maximum Bar Work | 3.2" |
| Main Spindle Speed | 3,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 3,500 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 35 |
| Turret Tool Positions 1, 2 | 12 |
| B-Axis Milling Spindle Speed | 5000 rpm |
| B-Axis Milling Spindle Horse Power | 4 |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | No |
| Tool Eye Automatic Second Spindle | No |
| Tool Eye Measurement Upper Turret | Yes |
| Tool Eye Measurement Lower Turret | Yes |
| Workpiece Unloader & Conveyor | Parts Unloader/Conveyor |
| Control | CNC (FANUC 18i-TB) |
| Dimensions | 160" x 87" |
| Weight | 28000 lb |
FANUC 18I-TB
UPPER & LOWER TURRETS W/LIVE TOOLING
Y-AXIS ON UPPER TURRET
SUB SPINDLE
TOOL PRESETTER
COOLJET UNIT
PARTS UNLOADER/CONVEYOR
CHIP CONVEYOR
