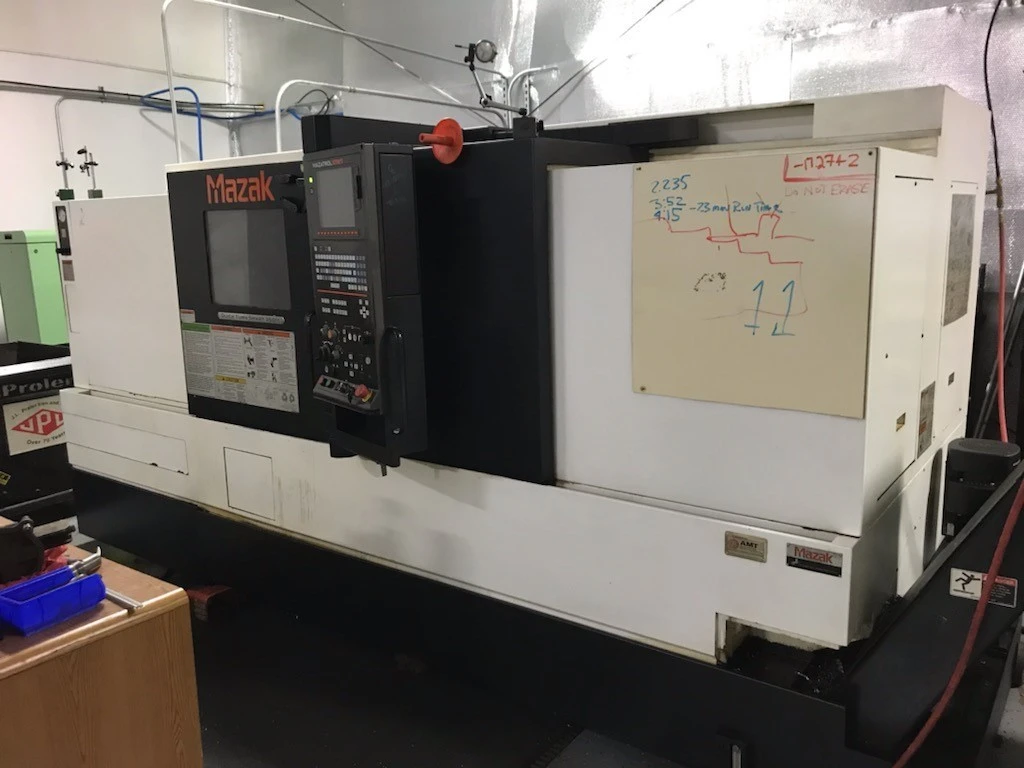

MAZAK QTS 350M WITH MILLING
CNC LATHES MULTI AXIS
THIS QTS 350M HAS A 12" HYDRAULIC CHUCK, TOOL EYE, 213 OSI COOLANT THRU, RE-THREADING, THREAD START POINT, SMART CONTROL AND LIVE TOOLING.
| Maximum Swing | 28.35" |
| Max Turning Diameter | 16.5" |
| Main Spindle Bore/Max Bar Capacity | 4.4"/ 4" |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Maximum Cutting Length | 48.67" |
| X-Axis Travel (X1, X2, X3) | 10.38" |
| Z-Axis Travel (Z1, Z2, Z3) | 53.13 |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 4.4" |
| Main Spindle Maximum Bar Work | 4" |
| Main Spindle Speed | 3,300 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Control | CNC (MAZATROL SMART) |
| Weight | 15,218 lbs |
MAZATROL SMART CONTROL
12″ HYD. 3-JAW CHUCK W/ 4.0″ HOLE
CHUCK OPEN/CLOSE CONFIRMATION
TOOL EYE
CHIP CONVEYOR
213 PSI
RE THREADING
THREAD START POINT
LIVE TOOLING
