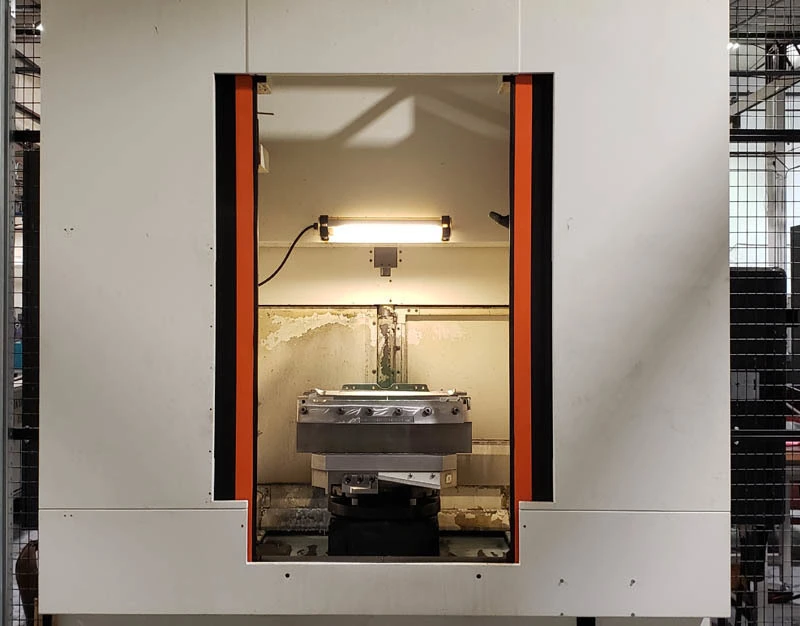

MAZAK VARIAXIS i-800 MULTI AXIS VERTICAL WITH PALLET CHANGER

MAZAK VARIAXIS i-800 MULTI AXIS VERTICAL WITH PALLET CHANGER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MAZAK
Model:
VARIAXIS i-800/ 2 PALLET
Condition:
Excellent
Year:
2013
Stock #:
210130
Status:
For Sale

Description

2013 MAZAK VARIAXIS I-800 HAS A MATRIX 2 CONTROL, 5-AXIS MACHINING PACKAGE, AUTO TOOL LENGTH MEASUREMENT AND BREAKAGE DETECTION, COOLERS FOR BALL SCREW ( X,Y,Z-AXIS), COOLANT THROUGH SPINDLE SYSTEM (5KG, 71 PSI), SPINDLE SPEED 7000 RPM (CAT50) BIG PLUS, 120 TOOL DOUBLE
MAGAZINE (CAT50), ADDITIONAL WORK LIGHT, WORK MEASURING SYSTEM RMP600 READY,
2-PALLET CHANGER, MANUAL PULSE GENERATOR (1 DIAL) PALM SIZE, MAYFRAN CONSEP 2000
CHIP CONVEYOR SIDE DISPOSAL, PRESSURE SWITCH FOR SPINDLE THRU COOLANT, FLOOD
COOLANT, WORKPIECE CLEANING COOLANT AND MAZAK SUPER FLOW T8 HIGH PRES. COOLANT UNIT
(1000PSI/8GPM).

X Travel28.74"730 mm
Y Travel33.46"849.88 mm
Z Travel22.05"560.07 mm
Spindle Speed7,000 RPM7000 rpm
Tool Capacity (ATC)120120
Main Spindle Motor50 hp
Spindle TaperCAT 50CAT 50
Spindle Nose To Table Top7.09” to 29.13” (positioned vertically)7.09” to 29.13” (positioned vertically)
Table Type A-Axis Trunnion Tilt Range-120° to +30° (Indexing in units of 0.0001Deg)-120° to +30° (Indexing in units of 0.0001Deg)
Table Type C-Axis Table Rotation1 Degree Index1 Degree Index
Coolant Thru High PressureYesYes
Hi Pressure Coolant System1000 psi
Part ProbeYesYes
Tool Probe/Auto Tool Length MeasurementYesYes
Multiple PalletsYesYes
ControlCNC (Mazatrol Matrix 2)CNC (Mazatrol Matrix 2)
Dimensions235" x 140" x 141235" x 140" x 141
Weight46,29746,297

MAZAROL MATRIX 2
19” COLOR LCD
MAXIMUM SIZE 8MM
5-AXIS MACHINING PACKAGE
AUTO TOOL LENGTH MEASUREMENT AND BREAKAGE DETECTION
COOLERS FOR BALL SCREW ( X,Y,Z-AXIS)
COOLANT THROUGH SPINDLE SYSTEM (5KG, 71 PSI)
SPINDLE SPEED 7000 RPM
CAT50 BIG PLUS
120 TOOL DOUBLE MAGAZINE (CAT50)
ADDITIONAL WORK LIGHT
WORK MEASURING SYSTEM RMP600 READY
2-PALLET CHANGER
MANUAL PULSE GENERATOR (1 DIAL) PALM SIZE
MAYFRAN CONSEP 2000 CHIP CONVEYOR SIDE DISPOSAL,
PRESSURE SWITCH FOR SPINDLE THRU COOLANT
FLOOD COOLANT
WORKPIECE CLEANING COOLANT
MAZAK SUPER FLOW T8 HIGH PRES. COOLANT UNIT (1000PSI/8GPM).
