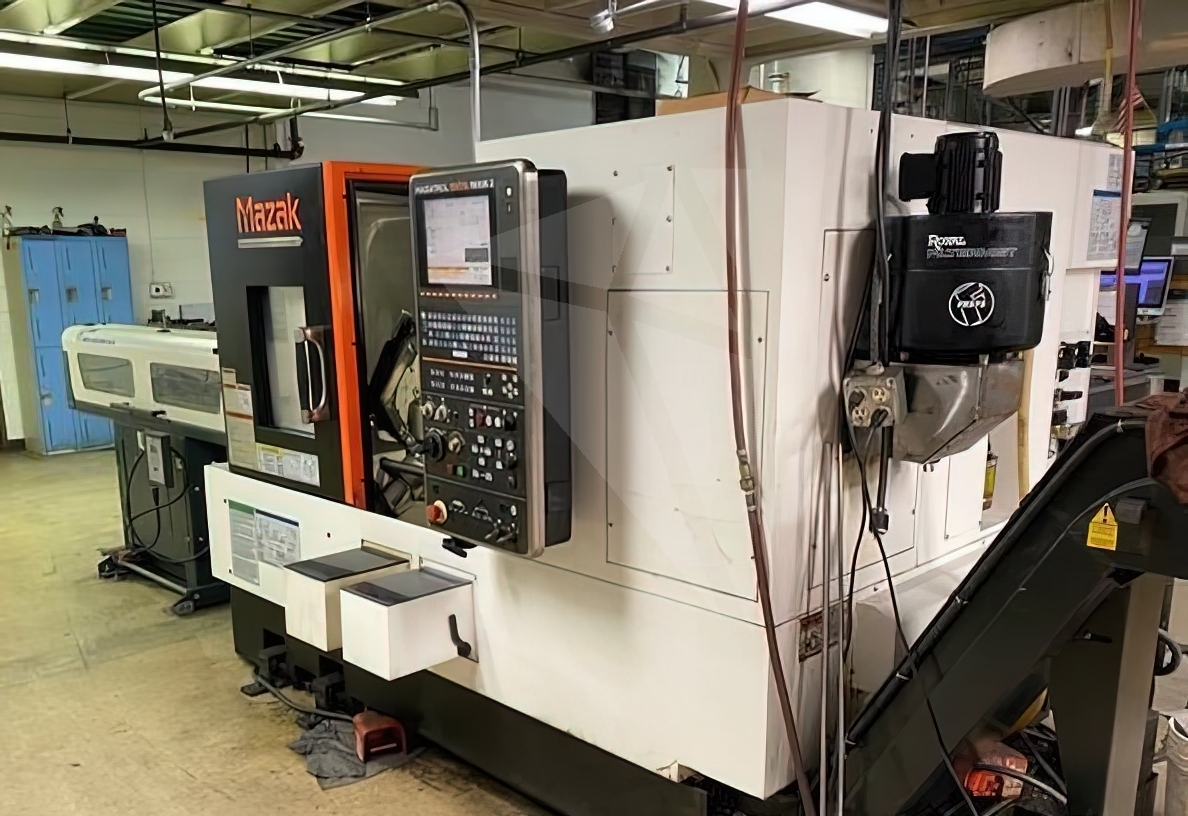

MAZAK QTN 200MSY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
NEXUS QTN 200MSY
Year:
2016
Stock #:
210131
Status:
For Sale

Description

THIS 2016 QTN 200MSY HAS A MATRIX 2 CONTROL, LIVE TOOL, SUB SPINDLE, Y AXIS, 8" & 6" CHUCKS, LNS S-2 QUICK LOAD SERVO 80 BARFEEDER SYNCH TAPPIN AND PATS CATCHER.

Maximum Swing26.5"673.1 mm
Max Turning Diameter13.7"347.98 mm
Main Spindle Bore/Max Bar Capacity2.4"/ 2.0"2.4"/ 2.0"
Tail Stock/Sub SpindleSUBSUB
Maximum Cutting Length22.6"574.04 mm
X-Axis Travel (X1, X2, X3)9"9"
Z-Axis Travel (Z1, Z2, Z3)43"43"
Y-Axis Travel (Y1, Y2, Y3)4"4"
C-Axis Indexing (1, 2).001 degrees.001 degrees
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.4"60.96 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3535
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)3535
Main & Sub Spindle SynchronizationYesYes
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 21515
B-Axis Milling Spindle Speed4500 rpm
B-Axis Milling Spindle Horse Power7.57.5
Bar FeedYesYes
Parts CatcherYesYes
Chip ConveyorYesYes
Milling Spindle Synchronous TappingYesYes
Tool Eye Automatic Front SpindleYesYes
Rapid Traverse, X-Axis11811181
Rapid Traverse, Y-Axis826826
Rapid Traverse, Z-Axis12991299
ControlCNC (MAZATROL MATRIX NEXUS 2)CNC (MAZATROL MATRIX NEXUS 2)

MAZATROL MATRIX NEXUS 2 CNC CONTROL
8" CHUCK ON MAIN SPINDLE
6" CHUCK ON SUB SPINDLE
LNS QUICK LOAD SERVO 80 S2 BARFEED
MAIN & SUB SPINDLE SYNCHRONIZATION
TOOL WEAR COMPENSATION
MILLING SPINDLE SYNCHRONOUS TAPPING
CHIP CONVEYOR
AUTOMATIC TOOL EYE
PARTS CATCHER
ALL AVAILABLE TOOLING

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
NEXUS QTN 200MSY
Year:
2016
Stock #:
210131
Status:
For Sale

Description

THIS 2016 QTN 200MSY HAS A MATRIX 2 CONTROL, LIVE TOOL, SUB SPINDLE, Y AXIS, 8" & 6" CHUCKS, LNS S-2 QUICK LOAD SERVO 80 BARFEEDER SYNCH TAPPIN AND PATS CATCHER.

Specifications

Imperial

Maximum Swing26.5"
Max Turning Diameter13.7"
Main Spindle Bore/Max Bar Capacity2.4"/ 2.0"
Tail Stock/Sub SpindleSUB
Maximum Cutting Length22.6"
X-Axis Travel (X1, X2, X3)9"
Z-Axis Travel (Z1, Z2, Z3)43"
Y-Axis Travel (Y1, Y2, Y3)4"
C-Axis Indexing (1, 2).001 degrees
Main Spindle Chuck Size8"
Main Spindle Chuck TypeHydraulic
Main Spindle Bore Diameter2.4"
Main Spindle Maximum Bar Work2"
Main Spindle Speed5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)35
Sub Spindle/2nd Spindle Chuck Size6
Sub Spindle/2nd Spindle Speed6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)35
Main & Sub Spindle SynchronizationYes
Turret Tool Positions 1, 212
Turret Rotary Tool Spindle Speed 1, 24500
Turret Rotary Tool Horse Power 1, 215
B-Axis Milling Spindle Speed4500 rpm
B-Axis Milling Spindle Horse Power7.5
Bar FeedYes
Parts CatcherYes
Chip ConveyorYes
Milling Spindle Synchronous TappingYes
Tool Eye Automatic Front SpindleYes
Rapid Traverse, X-Axis1181
Rapid Traverse, Y-Axis826
Rapid Traverse, Z-Axis1299
ControlCNC (MAZATROL MATRIX NEXUS 2)

Equipped With

MAZATROL MATRIX NEXUS 2 CNC CONTROL
8" CHUCK ON MAIN SPINDLE
6" CHUCK ON SUB SPINDLE
LNS QUICK LOAD SERVO 80 S2 BARFEED
MAIN & SUB SPINDLE SYNCHRONIZATION
TOOL WEAR COMPENSATION
MILLING SPINDLE SYNCHRONOUS TAPPING
CHIP CONVEYOR
AUTOMATIC TOOL EYE
PARTS CATCHER
ALL AVAILABLE TOOLING
