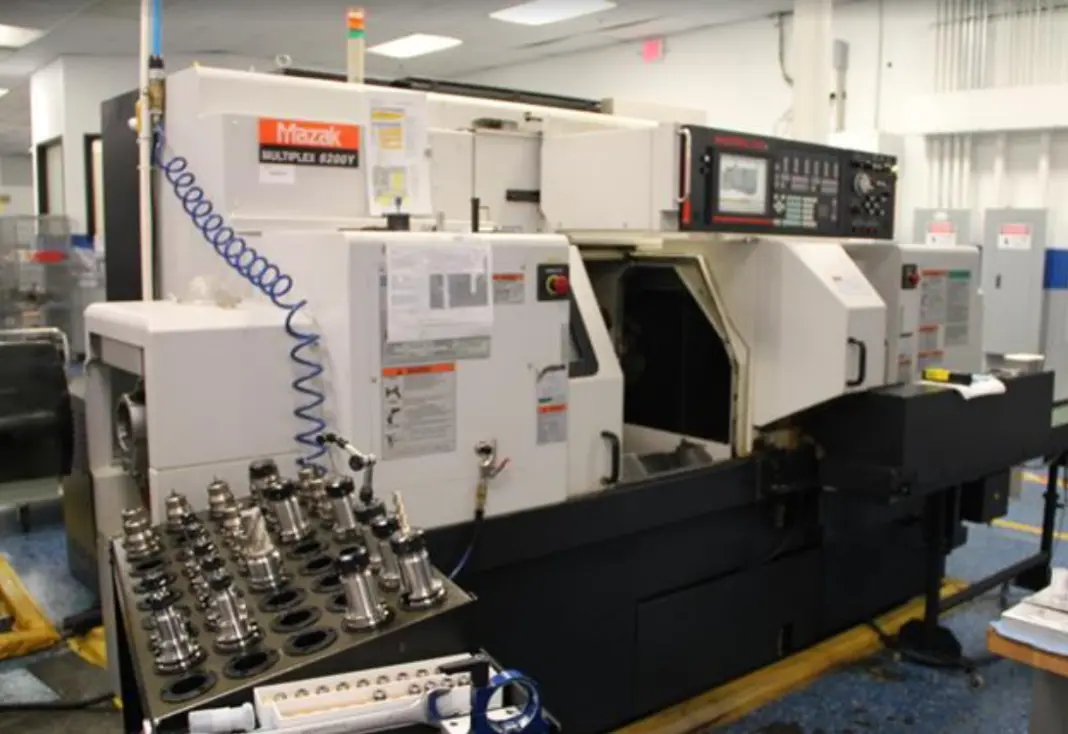

MAZAK MULTIPLEX 6200Y WITH BARFEEDER

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

CNC LATHES MULTI AXIS

Manufacturer:

Model:

MULTIPLEX 6200Y W/ BARFEED PKG

Condition:

Good

Year:

2006

Stock #:

210132

Status:

For Sale

THIS MULTIPLEX 6200Y COMES WITH AN LNS BARFEEDER, PARTS CONVEYOR, CHIP CONVEYOR, C-AXIS LIVE TOOLING & Y AXIS WITH A FUSION 640T CONTROL, 2006.

ImperialMetric

Maximum Swing	12.6"	320.04 mm
Max Turning Diameter	12.6"	320.04 mm
Main Spindle Bore/Max Bar Capacity	2.4"/ 2"	2.4"/ 2"
Distance Between Centers	46.8"	1,188.7 mm
X-Axis Travel (X1, X2, X3)	9.4"	9.4"
Z-Axis Travel (Z1, Z2, Z3)	17.25"/ 19.37"	17.25"/ 19.37"
Y-Axis Travel (Y1, Y2, Y3)	+/- 2.0"	+/- 2.0"
C-Axis Indexing (1, 2)	.001	.001
Main Spindle Chuck Size	8"	203.2 mm
Main Spindle Chuck Type	Hydraulic	Hydraulic
Main Spindle Bore Diameter	2.4"	60.96 mm
Main Spindle Maximum Bar Work	2"	50.8 mm
Main Spindle Speed	5,000 RPM	5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)	30	30
Number of Turrets	2	2
Turret Tool Positions 1, 2	12	12
Turret Rotary Tool Spindle Speed 1, 2	6000	6000
Bar Feed	Yes	Yes
Chip Conveyor	Yes	Yes
(Multiplex) Standard Chuck Dia. Main Spindle (R)	8	8
(Multiplex) Standard Chuck Dia. Main Spindle (L)	8	8
Control	CNC (MAZATROL FUSION 640T)	CNC (MAZATROL FUSION 640T)

MAZATROL FUSION 640T
C-AXIS LIVE TOOLING
Y AXIS
LNS BARFEEDER
PARTS CATCHER
CHIP CONVEYOR
