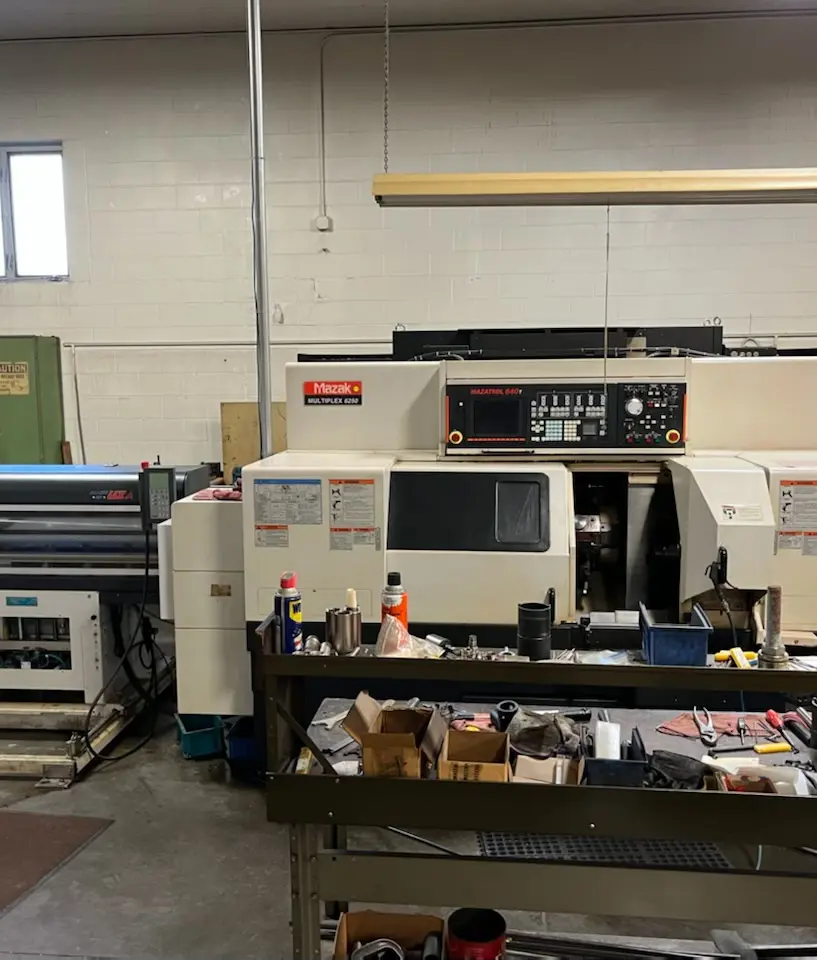

MAZAK MULTIPLEX 6250 WITH C-AXIS AND BARFEEDER
Have one to sell?
ConditionUsed
1 available
THIS MULTIPLEX 6250 HAS THE LARGER 2.5" BAR CAPACITY, (2) 10" CHUCKS, LNS QUICK LOAD SERVO S-3 BARFEEDER, WORKPIECE UNLOAD PKG AND FUSION 640 CONTROL.
MAZATROL FUSION 640T CONTROL (FULL COLOR)
(2) 10" HYRAULIC CHUCKS (THRU-HOLE)
LNS QUICK-LOAD SERVO S-3 BARFEED.
TOOL EYE (BOTH SPINDLES)
CHIP CONVEYOR (REAR DISPOSAL)
WORKPIECE/PARTS UNLOADING PACKAGE(WITH ARM AND CONVEYOR)
HIGH PRESSURE COOLANT (52 PSI)
EIA/ISO PROGRAMMING LANGUAGE
MILLING SPINDLE SYNCHRONIZED TAPPING
TURRET AIR BLAST
-DATA INPUT/OUTPUT: I C MEMORY CARD INTERFACE
RS-232 C
MULTITAP TRANSFORMER
The
THIS MULTIPLEX 6250 HAS THE LARGER 2.5" BAR CAPACITY, (2) 10" CHUCKS, LNS QUICK LOAD SERVO S-3 BARFEEDER, WORKPIECE UNLOAD PKG AND FUSION 640 CONTROL.
Imperial
| Maximum Swing | 12.5" |
| Max Turning Diameter | 10.24" |
| Main Spindle Bore/Max Bar Capacity | 2.99"/ 2.56" |
| Distance Between Spindles | 46.85" |
| X-Axis Travel (X1, X2, X3) | 9.06 |
| Z-Axis Travel (Z1, Z2, Z3) | 17.25 |
| C-Axis Indexing (1, 2) | .001 DEG./360,000 |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.99" |
| Main Spindle Maximum Bar Work | 2.56" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Main & Sub Spindle Synchronization | Yes |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Type | DODECAGONAL/DRUM |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 5 |
| Bar Feed | Yes |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Workpiece Unloader & Conveyor | YES |
| Control | CNC (MAZATROL FUSION 640) |
| Dimensions | 71.9" x 146.9" x 82.3" |
| Weight | 17,600 LBS |
MAZATROL FUSION 640T CONTROL (FULL COLOR)
(2) 10" HYRAULIC CHUCKS (THRU-HOLE)
LNS QUICK-LOAD SERVO S-3 BARFEED.
TOOL EYE (BOTH SPINDLES)
CHIP CONVEYOR (REAR DISPOSAL)
WORKPIECE/PARTS UNLOADING PACKAGE(WITH ARM AND CONVEYOR)
HIGH PRESSURE COOLANT (52 PSI)
EIA/ISO PROGRAMMING LANGUAGE
MILLING SPINDLE SYNCHRONIZED TAPPING
TURRET AIR BLAST
-DATA INPUT/OUTPUT: I C MEMORY CARD INTERFACE
RS-232 C
MULTITAP TRANSFORMER
The
