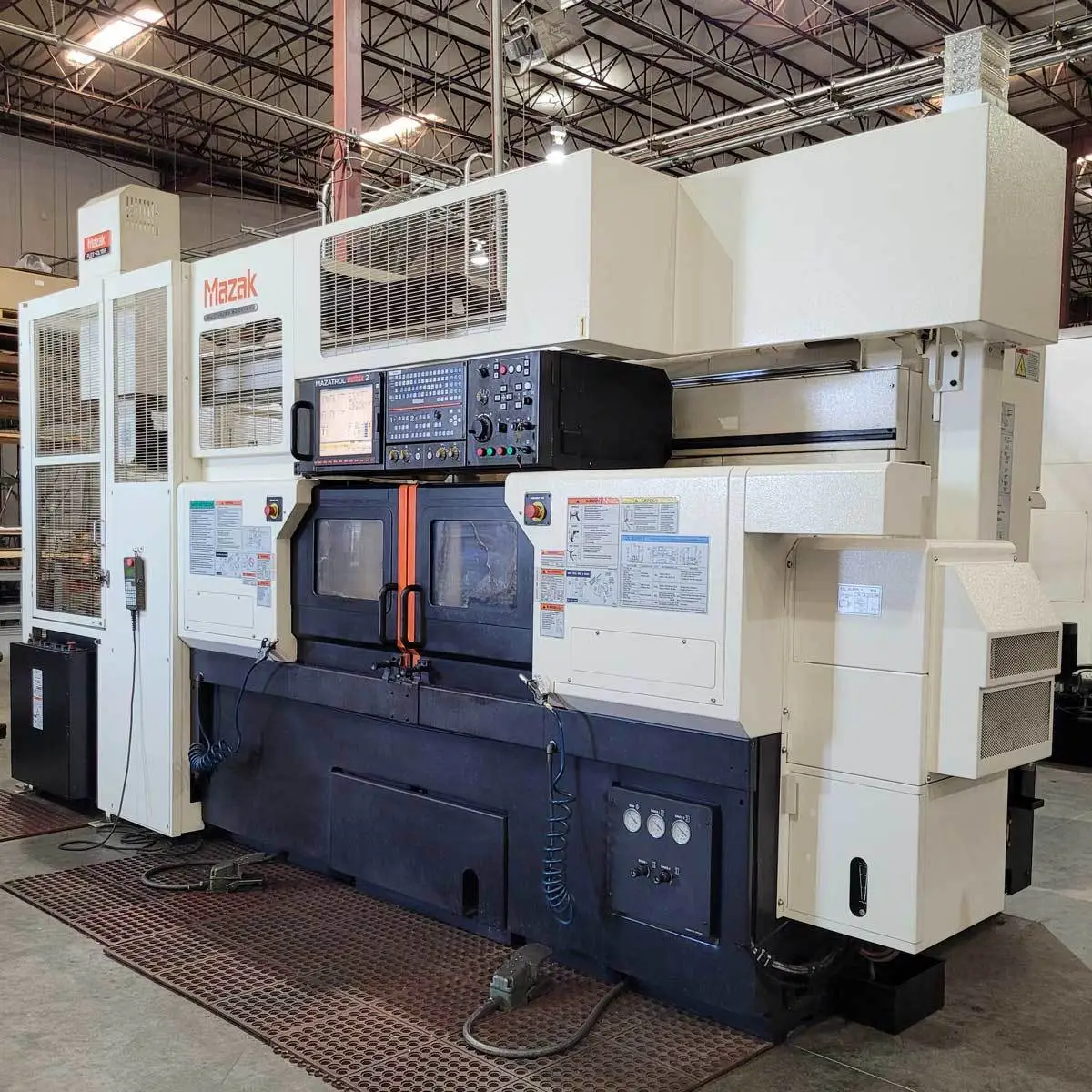

MAZAK MULTIPLEX 6200Y WITH GL-100 ROTARY FEED GANTRY
Have one to sell?
ConditionUsed
1 available
THIS 2011 MULTIPLEX 6200Y WITH A GL-100 ROTARY FEED GANTRY AND D3 HAND, TOOL EYES, SYNCH TAPPING, 213 PSI COOLANT THRU, HOBBING SOFTWARE, STANDARD TURNING AND BORING BAR HOLDES ALONG WITH 2 VERTICAL MILL HOLDERS AND 1 HORIZONTAL.
MATRIX 2 CONTROL WITH EIA/ISO OPTION PACKAGE
Y AXIS CONTROL
TOOL EYES
MILLING SPINDLE SYNCHRONOUS TAPPING
ABSOLUTE POSITIONING SYSTEM
GL100F/ROTARY FEED CONVEYOR WITH D3 HAND
213 HIGH PRESSURE COOLANT
AUTO PECKING WITH LOAD DETECTION
AUTO POWER OFF
SIGNAL TOWER 3 COLORS
POLYGON MACHINING SOFTWARE
HOBBING SOFTWARE
MAXIMUM PROGRAM SIZE 8MB
STANDARD TURNING TOOL HOLDERS
STANDARD BORING BAR HOLDERS
2 VERTICAL MILL HOLDERS AND 1 HORIZONTAL MILL HOLDER
CHIP CONVEYOR
THIS 2011 MULTIPLEX 6200Y WITH A GL-100 ROTARY FEED GANTRY AND D3 HAND, TOOL EYES, SYNCH TAPPING, 213 PSI COOLANT THRU, HOBBING SOFTWARE, STANDARD TURNING AND BORING BAR HOLDES ALONG WITH 2 VERTICAL MILL HOLDERS AND 1 HORIZONTAL.
Imperial
| Maximum Swing | 12.5" |
| Max Turning Diameter | 10.24" |
| Main Spindle Bore/Max Bar Capacity | 2.4"/ 2.0" |
| Distance Between Spindles | 46.85" |
| X-Axis Travel (X1, X2, X3) | 9.06 |
| Z-Axis Travel (Z1, Z2, Z3) | 17.25"/19.37" |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2.00" |
| C-Axis Indexing (1, 2) | .001 DEGREE |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 5 |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Number of Available Live Tool Holders | 3 |
| (Multiplex) Standard Chuck Dia. Main Spindle (R) | 8 |
| (Multiplex) Standard Chuck Dia. Main Spindle (L) | 8 |
| Stroke of Y-Axis (Multiplex) | +/- 2.00" |
| Hobbing Function | YES |
| Control | CNC (Mazatrol Matrix 2) |
| Weight | 18,000 LBS |
MATRIX 2 CONTROL WITH EIA/ISO OPTION PACKAGE
Y AXIS CONTROL
TOOL EYES
MILLING SPINDLE SYNCHRONOUS TAPPING
ABSOLUTE POSITIONING SYSTEM
GL100F/ROTARY FEED CONVEYOR WITH D3 HAND
213 HIGH PRESSURE COOLANT
AUTO PECKING WITH LOAD DETECTION
AUTO POWER OFF
SIGNAL TOWER 3 COLORS
POLYGON MACHINING SOFTWARE
HOBBING SOFTWARE
MAXIMUM PROGRAM SIZE 8MB
STANDARD TURNING TOOL HOLDERS
STANDARD BORING BAR HOLDERS
2 VERTICAL MILL HOLDERS AND 1 HORIZONTAL MILL HOLDER
CHIP CONVEYOR
