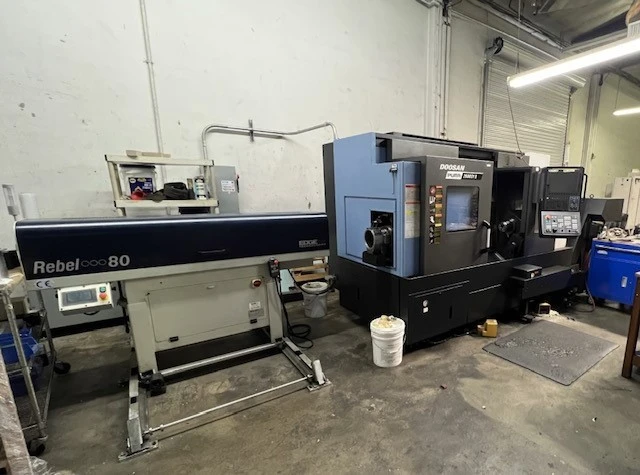

DOOSAN PUMA 2600SYII LATHE WITH MILLING AND SUB-SPINDLE

DOOSAN PUMA 2600SYII LATHE WITH MILLING AND SUB-SPINDLE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DOOSAN
Model:
PUMA 2600SYII
Condition:
Excellent
Year:
2020
Stock #:
210149
Status:
For Sale

Description

THIS 2020 PUMA 2600SY IS EQUIPPED WITH A FANUC 0iT CONTROL, TURBO REAR DISCHARGE CHIP CONVEYOR, REAR COOLANT TANK, BARFEEDER, (3) ER32 X-AXIS STRAIGHT MILLING TOOLS AND (2) ER32 Z-AXIS (BOTH SIDES MILLING) TOOLS.

Maximum Swing30.7"779.78 mm
Max Turning Diameter14.8"375.92 mm
Main Spindle Bore/Max Bar Capacity3.34"/ 3.0"3.34"/ 3.0"
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Cutting Length29.9"759.46 mm
X-Axis Travel (X1, X2, X3)10.210.2
Z-Axis Travel (Z1, Z2, Z3)32.732.7
Y-Axis Travel (Y1, Y2, Y3)+/-2.1"+/-2.1"
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.34"84.836 mm
Main Spindle Maximum Bar Work3"76.2 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3030
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Bore Size22
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)2020
Turret Tool Positions 1, 22424
Turret Rotary Tool Spindle Speed 1, 250005000
Turret Rotary Tool Horse Power 1, 21010
B-Axis Travel32.732.7
Bar FeedYesYes
Chip ConveyorYesYes
Chip ConveyorRearRear
Number of Available Live Tool Holders55
Rapid Traverse, X-Axis00
Rapid Traverse, Y-Axis00
Rapid Traverse, Z-Axis00
ControlCNC (Fanuc OiT)CNC (Fanuc OiT)
Dimensions142" X 75" X 75"142" X 75" X 75"
Weight14,400 LBS14,400 LBS

FANUC OIT CONTROL
TURBO REAR DISCHARGE CONVEYOR WITH REAR COOLANT TANK

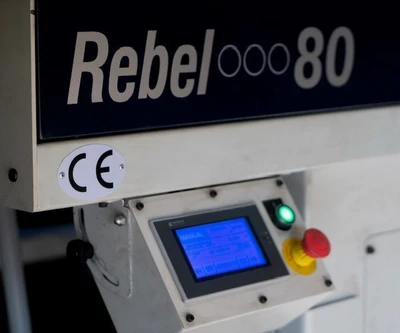

EDGE REBEL 80 SLUG LOAD BAR FEED
(3) ER32 X-AXIS (STRAIGHT MILLING) TOOLS
(2) ER-32 Z-AXIS (BOTH SIDES MILLING) TOOLS \MANUALS
HAND WRENCH SET FOR ER22
BOX GUIDE WAYS
ACTIVE THERMAL COMPENSATION

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DOOSAN
Model:
PUMA 2600SYII
Condition:
Excellent
Year:
2020
Stock #:
210149
Status:
For Sale

Description

THIS 2020 PUMA 2600SY IS EQUIPPED WITH A FANUC 0iT CONTROL, TURBO REAR DISCHARGE CHIP CONVEYOR, REAR COOLANT TANK, BARFEEDER, (3) ER32 X-AXIS STRAIGHT MILLING TOOLS AND (2) ER32 Z-AXIS (BOTH SIDES MILLING) TOOLS.

Specifications

Imperial

Maximum Swing30.7"
Max Turning Diameter14.8"
Main Spindle Bore/Max Bar Capacity3.34"/ 3.0"
Tail Stock/Sub SpindleSub Spindle
Maximum Cutting Length29.9"
X-Axis Travel (X1, X2, X3)10.2
Z-Axis Travel (Z1, Z2, Z3)32.7
Y-Axis Travel (Y1, Y2, Y3)+/-2.1"
Main Spindle Chuck Size10"
Main Spindle Chuck TypeHydraulic
Main Spindle Bore Diameter3.34"
Main Spindle Maximum Bar Work3"
Main Spindle Speed4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)30
Sub Spindle/2nd Spindle Chuck Size8
Sub Spindle/2nd Spindle Bore Size2
Sub Spindle/2nd Spindle Chuck TypeHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)20
Turret Tool Positions 1, 224
Turret Rotary Tool Spindle Speed 1, 25000
Turret Rotary Tool Horse Power 1, 210
B-Axis Travel32.7
Bar FeedYes
Chip ConveyorYes
Chip ConveyorRear
Number of Available Live Tool Holders5
Rapid Traverse, X-Axis0
Rapid Traverse, Y-Axis0
Rapid Traverse, Z-Axis0
ControlCNC (Fanuc OiT)
Dimensions142" X 75" X 75"
Weight14,400 LBS

Equipped With

FANUC OIT CONTROL
TURBO REAR DISCHARGE CONVEYOR WITH REAR COOLANT TANK
EDGE REBEL 80 SLUG LOAD BAR FEED
(3) ER32 X-AXIS (STRAIGHT MILLING) TOOLS
(2) ER-32 Z-AXIS (BOTH SIDES MILLING) TOOLS \MANUALS
HAND WRENCH SET FOR ER22
BOX GUIDE WAYS
ACTIVE THERMAL COMPENSATION
