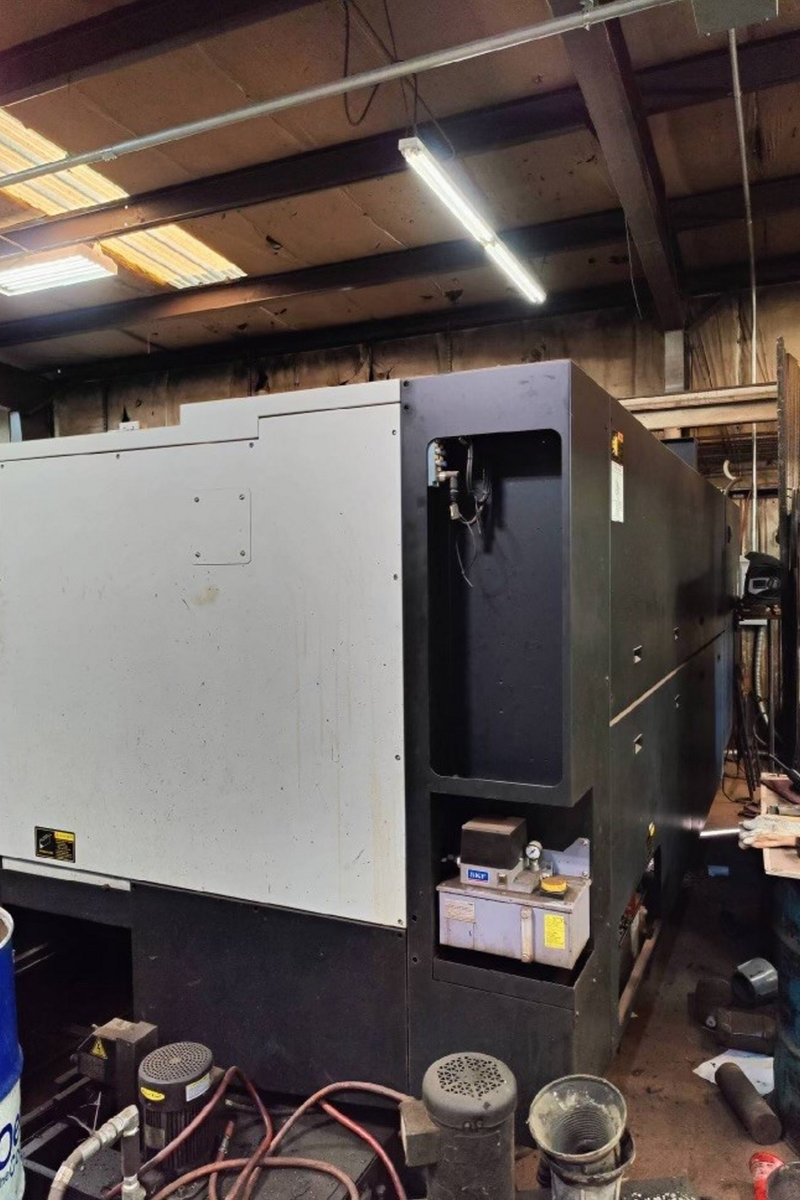

DOOSAN PUMA 5100C

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
DOOSAN
Model:
PUMA 5100LC
Year:
2018
Stock #:
210151
Status:
For Sale

Description

DOOSAN PUMA 5100C LARGE SWING 10.8 BIG BORE FRONT AND BACK CHUCKS 80" CENTERS

Max. Swing35"889 mm
Max Turning Diameter25.6"650.24 mm
Spindle Bore/Max Bar Capacity10.810.8
Z Travel84.8"2,153.9 mm
X Travel14.3"363.22 mm
Machining Length82"2,082.8 mm
Distance Between Centers00
Chuck Size24"609.6 mm
Chuck TypeAirAir
Spindle Motor60 hp
Spindle Speeds (RPM)10001000
Turret Tool Positions1212
Chip ConveyorYesYes
Chip ConveyorSideSide
Rear ChuckYesYes
Rear Chuck Diameter24"609.6 mm
ControlCNC (FANUC)CNC (FANUC)
DimensionsLength (231.5 in.) Height (89.5 in.) Width (90 in.)Length (231.5 in.) Height (89.5 in.) Width (90 in.)
Weight26,67526,675


TRAVELS
Travel Distance X-axis (14.3 in)
Travel Distance Z-axis (84.8 in)
Rapid Traverse X-axis (630 in/min)
Rapid Traverse Z-axis (787 in/min)
CAPACITY
Max Turning Diameter (25.6 in)
Max Turning Length (82 in)
Through Hole Diameter (10.8 in)
SPINDLE
Chuck Size 21 in
Speed 1000 rpm
Power 45 kW (60 Hp)
Torque (3291 ft-lbs)
TOOLING
Shank BMT-KEY
Turret Stations 12
Boring Bar Diameter (3 in)
MACHINE SIZE & WEIGHT
Length (231.5 in.)
Height (89.5 in.)
Width (90 in.)
Weight (26,675 lbs.)
