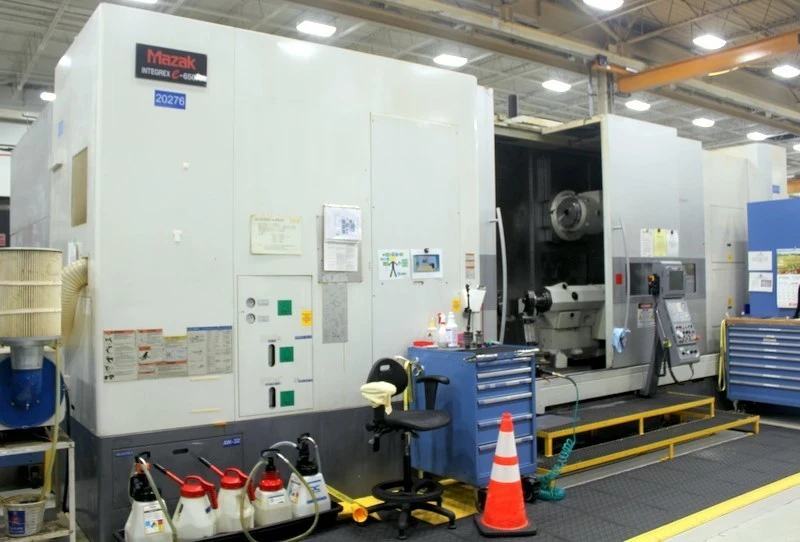

MAZAK E 650H/4000 CNC MULTI TASKING CENTER W/ B & Y AXIS
Have one to sell?
ConditionUsed
1 available
THIS INTEGREX e-650H/ 4000 HAS 160" CENTERS, .0001 DEGREE B-AXIS, B-AXIS CONTOURING, HOBBING, COOLANT THRU MILL HEAD, CTS, HYDRAULIC STEADY REST, RENISHAW PROBE AND FUSION 640 CONTROL.
MAZATROL 640 PRO CNC CONVERSATIONAL CONTROL
.0001 DEGREE B-AXIS INDEXING
AUTO TOOL MEASUREMENT
B - AXIS 0.0001 CONTOURING
CHIP CONVEYOR
COMPARISON STOP, G54.1, SYNC TAP, FLASH TOOL, I/M CONV., CYLINDER
COOLANT THRU MILL HEAD
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATA I/O
HIGH PRESSURE COOLANT THRU SPINDLE
HOB, SHAPE COMP, THREAD INVERSE TIME, 3-D COORD ROTATION, AUTO ATLM
HYDRAULIC STEADY REST
MIST COLLECTOR
NAVIGATION, EIA HELICAL TAP, MAZATROL HELICAL, MAZATROL PLANET TAP
RENISHAW PROBING
ROTARY AXIS SUB MICRON, MACRO 600 SETS,
SIMULTANEOUS 5 AXIS
SPINDLE CHILLER
TOOL CENTER POINT CONTROL
Y AXIS CONTROL
THIS INTEGREX e-650H/ 4000 HAS 160" CENTERS, .0001 DEGREE B-AXIS, B-AXIS CONTOURING, HOBBING, COOLANT THRU MILL HEAD, CTS, HYDRAULIC STEADY REST, RENISHAW PROBE AND FUSION 640 CONTROL.
Imperial
| Maximum Swing | 36.2" |
| Max Turning Diameter | 36.2" |
| Main Spindle Bore/Max Bar Capacity | 6.69" |
| Tail Stock/Sub Spindle | Tail Stock |
| Distance Between Centers | 164" |
| X-Axis Travel (X1, X2, X3) | 40.35 |
| Z-Axis Travel (Z1, Z2, Z3) | 162.91 |
| Y-Axis Travel (Y1, Y2, Y3) | 25.6 |
| C-Axis Indexing (1, 2) | .0001 DEGREES |
| Main Spindle Chuck Size | 18 mm |
| Main Spindle Chuck Type | Air |
| Main Spindle Bore Diameter | 6.69" |
| Main Spindle Maximum Bar Work | 6.69" |
| Main Spindle Speed | 1,600 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 70 |
| ATC Magazine Capacity | 80 |
| B-Axis Head Indexing | -30210 deg |
| B-Axis Milling Spindle Speed | 10000 rpm |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Work Measuring System (Probe) | YES |
| Hobbing Function | YES |
| 5-AXIS MACHINING PACKAGE | YES |
| Control | CNC (MAZATROL FUSION 640) |
| Weight | 96900 |
MAZATROL 640 PRO CNC CONVERSATIONAL CONTROL
.0001 DEGREE B-AXIS INDEXING
AUTO TOOL MEASUREMENT
B - AXIS 0.0001 CONTOURING
CHIP CONVEYOR
COMPARISON STOP, G54.1, SYNC TAP, FLASH TOOL, I/M CONV., CYLINDER
COOLANT THRU MILL HEAD
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATA I/O
HIGH PRESSURE COOLANT THRU SPINDLE
HOB, SHAPE COMP, THREAD INVERSE TIME, 3-D COORD ROTATION, AUTO ATLM
HYDRAULIC STEADY REST
MIST COLLECTOR
NAVIGATION, EIA HELICAL TAP, MAZATROL HELICAL, MAZATROL PLANET TAP
RENISHAW PROBING
ROTARY AXIS SUB MICRON, MACRO 600 SETS,
SIMULTANEOUS 5 AXIS
SPINDLE CHILLER
TOOL CENTER POINT CONTROL
Y AXIS CONTROL
