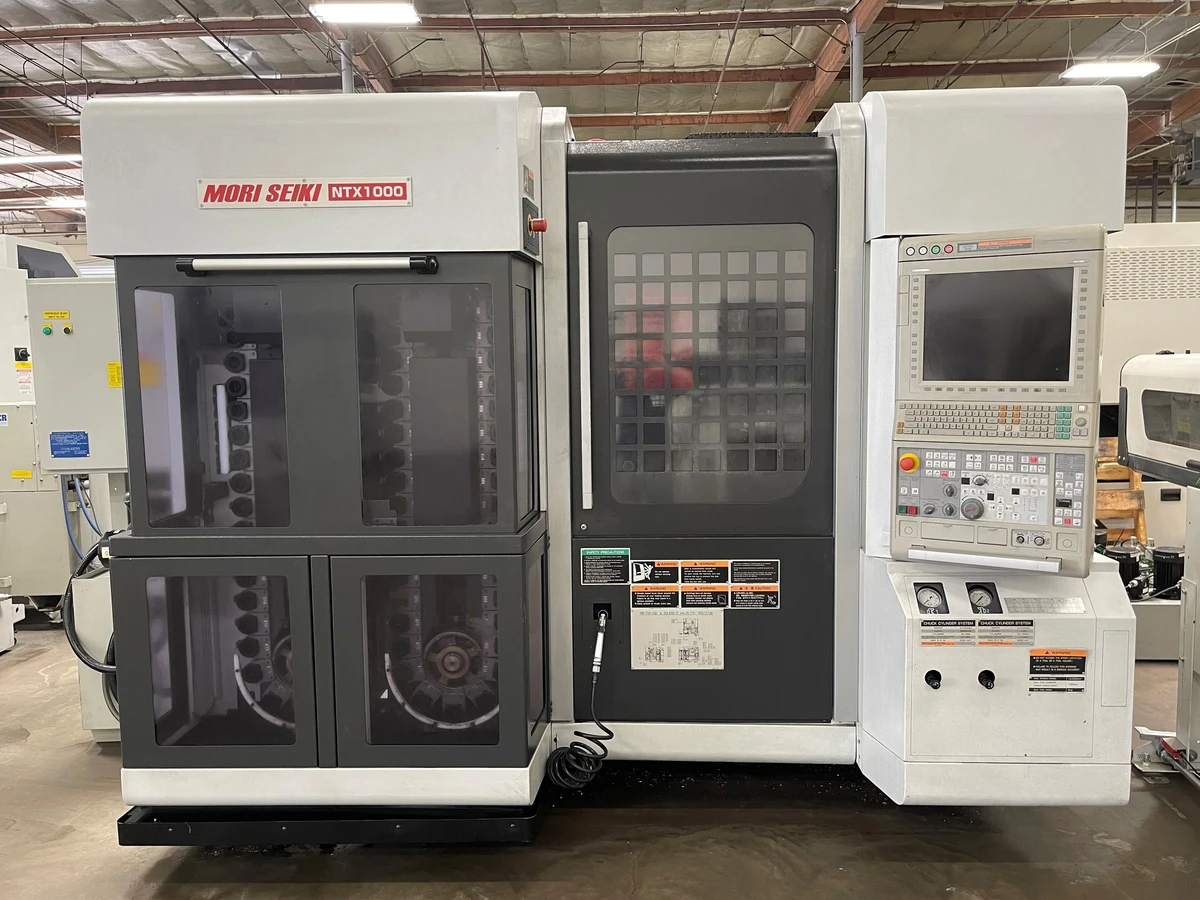

2012 MORI SEIKI NTX 1000/SZM
Have one to sell?
ConditionUsed
1 available
THE 2012 MORI SEIKI NTX 1000/SZM MULTI AXIS LATHE HAS A FANUC 31iBS CONTROL, HIGH PRESSURE CHIP BLASTER UNIT, SUB-SPINDLE, MILLING AND LNS QUICKLOAD SERVO 80 S2 BARFEEDER.
FANUC 31iB5 CONTROL
CHIP CONVEYOR
LNS QUICKLOAD SERVO 80 S2 BAR FEEDER
CHIP BLASTER HIGH PRESSURE UNIT
THE 2012 MORI SEIKI NTX 1000/SZM MULTI AXIS LATHE HAS A FANUC 31iBS CONTROL, HIGH PRESSURE CHIP BLASTER UNIT, SUB-SPINDLE, MILLING AND LNS QUICKLOAD SERVO 80 S2 BARFEEDER.
Imperial
| Maximum Swing | 17.7" |
| Max Turning Diameter | 16.9" |
| Main Spindle Bore/Max Bar Capacity | 2.9/ 2.5 |
| Tail Stock/Sub Spindle | SUB-SPINDLE |
| X-Axis Travel (X1, X2, X3) | 15"/ 6.1" |
| Z-Axis Travel (Z1, Z2, Z3) | 18.1"/ 24" |
| Y-Axis Travel (Y1, Y2, Y3) | 4.1" |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.9" |
| Main Spindle Maximum Bar Work | 2.5" |
| Main Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Chuck Size | 5 |
| Sub Spindle/2nd Spindle Bore Size | 1.5 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Turret Tool Positions 1, 2 | 10 |
| Turret Rotary Tool Spindle Speed 1, 2 | 12000 |
| B-Axis Travel | 120 DEGREES |
| Bar Feed | Yes |
| Chip Conveyor | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Rapid Traverse, X-Axis | 0 |
| Rapid Traverse, Y-Axis | 0 |
| Rapid Traverse, Z-Axis | 0 |
| Control | CNC (Fanuc 31iB5) |
FANUC 31iB5 CONTROL
CHIP CONVEYOR
LNS QUICKLOAD SERVO 80 S2 BAR FEEDER
CHIP BLASTER HIGH PRESSURE UNIT
