2010 OKUMA B750-W/ 4000 MULTI AXIS LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
OKUMA
Model:
MULTUS B750-W/4000
Condition:
Good
Year:
2010
Stock #:
210155
Status:
For Sale

Description

THIS OKUMA MULTUS B750-W/4000 HAS 165" CENTERS, 24" SCHUNK ROTA TB 600-275 SELF CONTAINED PNEUMATIC 3 JAW CHUCK, 24" HYDRAULIC CHUCK (RIGHT SPINDLE), B-AXIS UPPER TOOL FULL 5-AXIS CONTOURING TWIN OPPOSED SPINDLES, SMW HYDRAULIC STEADY REST, 80 TOOL MAGAZINE (CAPTO C8), 1000 PSI CTS, 3 LONG BORING BAR ATTACHMENTS, PLUS, PLUS - SEE BELOW!

Maximum Swing41.3"1,049 mm
Max Turning Diameter41.3"1,049 mm
Main Spindle Bore/Max Bar Capacity10.8"10.8"
Maximum Swing Over Cross Slide41.34"1,050 mm
Maximum Cutting Length165"4,191 mm
Distance Between Spindles178.9"4,544.1 mm
X-Axis Travel (X1, X2, X3)42.52"42.52"
Z-Axis Travel (Z1, Z2, Z3)165.94165.94
Y-Axis Travel (Y1, Y2, Y3)+/- 12.99"+/- 12.99"
C-Axis Indexing (1, 2).001 Degrees.001 Degrees
W-Axis Travel Sub Spindle133.66 in
Main Spindle Chuck Size24"609.6 mm
Main Spindle Chuck TypeAirAir
Main Spindle Bore Diameter10.8"274.32 mm
Main Spindle Maximum Bar Work10.8"274.32 mm
Main Spindle Speed2,000 RPM2,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)50 / 40 HP AC50 / 40 HP AC
Sub Spindle/2nd Spindle Chuck Size2424
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)50/ 4050/ 40
ATC Magazine Capacity80/ CAPTO C880/ CAPTO C8
B-Axis Travel-30 to 210 Degrees-30 to 210 Degrees
Long Boring Bar Holder33
Steady RestYesYes
Chip ConveyorYesYes
ControlCNC (OSP-P200L)CNC (OSP-P200L)
Weight83,600 lbs.83,600 lbs.

OSP-P200L CNC CONTROL
15" COLOR TFT
B-AXIS UPPER TOOL SPINDLE FULL 5-AXIS CONTOURING
TWIN OPPOSED SPINDLES
SCHUNK ROTA TB 600-275 LH SELF-CONTAINED PNEUMATIC 3-JAW CHUCK
24" HYDRAULIC CHUCK (RIGHT SPINDLE)
80 TOOL MAGAZINE (CAPTO C8)
THROUGH SPINDLE COOLANT (MP SYSTEMS 1000 PSI)

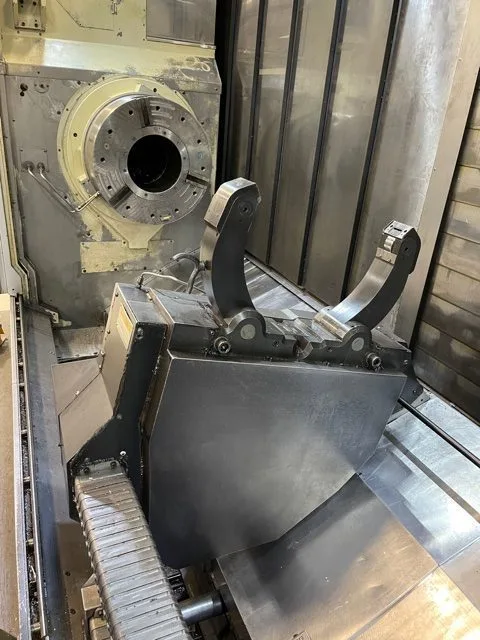

SWM AUTOBLOCK PROGRAMMABLE HYDRAULIC STEADY REST
ENOMOTO CHIP CONVEYOR (SIDE EXIT)
(3) LONG BORING BAR ATTACHMENT
ACTUAL LONG BORING BAR WITH REPLACEABLE CAPTO C8 HEADS
MULTI-TAP TRANSFORMER
THREE COLOR TOWER LIGHT
SPINDLE CHILLER UNIT
REMOTE JOG HANDLE
HI-G CONTROL
500 SETS OF TOOL OFFSETS
TAPE DATA IN/OUT
PLANE CONVERSION
PROFILE GENERATION
B-AXIS INTERPOLATION
RIGID TAPPING
HELICAL CUTTING
SLANT CUTTING
HOME POSITION
SPINDLE FLUCTUATE
NC TORQUE LIMITER
GM CODE MACROS
CENTER COMPUTATION
TOUCH SETTER
TOUCH SENSOR
Y-AXIS GAUGING
OPTICAL SENSOR
PITCH ERROR COMPENSATION
TOOL LIFE MANAGEMENT
TOOL WEAR COMPENSATION
INCH/METRIC SWITCHABLE
CYCLE TIME CALCULATION
CYCLE TIME RENEW
TOOL CENTER CONTROL
SUPER NURBS
SUPER HI-NC
THERMAL COMPENSATION L2
SERVO LINK NC
LAP 4
NOSE RADIUS 2B
USER TASK 2
EXPANDED AUTO CHAMFERING
COLLISION AVOIDANCE SYSTEM
PROGRAMMING HELP
3D ANIMATION
NC WORK COUNTER
NC WORK MONITOR
CYCLE TIME CHECK
LOAD MONITOR
MAC MAN
DNC-T1 & T-3
SPINDLE ORIENTATION
M-AXIS ORIENT
CUSTOM API
MACHINING MODE
AXIS ACTIVE STOP
OVERRIDE SPECIAL
LOAD MONITOR
B-AXIS .001 DEGREES
B-AXIS INTERPOLATION
AUTO DOOR
