STAR SR-32J TYPE N SWISS
Have one to sell?
ConditionUsed
1 available

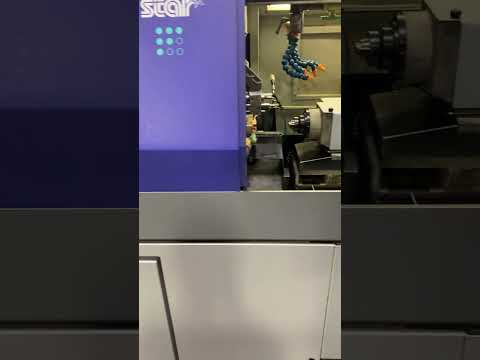

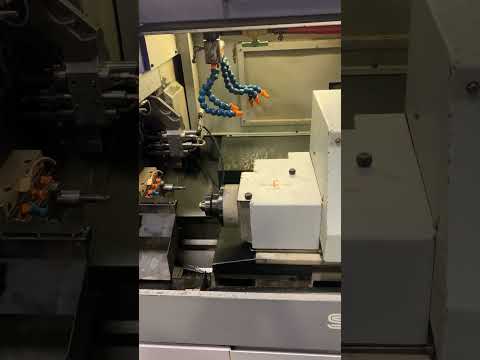

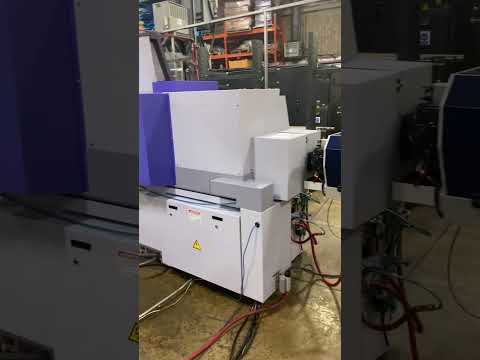

THIS 2016 STAR SR-32J-N IS A 9 AXIS SWISS MACHINE USED FOR MACHINING SMALL, HIGH PRECISION PARTS AND INCLUDES AN EDGE PATROL 338 BARFEEDER, TWO (20 COMPLETE GUIDE CHANNEL SETS AND WORKPIECE UNLOADER CONVEYOR.
AXIS:
X1 7"/ 178MM
Y1 12.6"/320MM
Z1 3.46"/ 80MM
XB 11.38"/ 289MM
ZB 1063"/ 270MM
MAIN SPINDLE:
POWER 7.5KW
SPEED 7000 RPM
DRAW TUBE CAPACITY: 32MM
C-AXIS 0.001°
COUNTER SPINDLE:
POWER 3.7KW
SPEED 7000RPM
COLLET CHUCK: TF32
C-AXIS 0.001°
AUTOMATION:
EDGE PATRIOT 338 BAR FEEDER
TWO (2) COMPLETE GUIDE CHANNEL SETS
WORKPIECE UNLOADER CONVEYOR
DIMENSIONS:
MACHINE: LENGTH: 2.7M, DEPTH: 1.3M, HEIGHT: 1.9M
WEIGHT: 3100KG
TOTAL LENGTH: 8.1M (BAR FEEDER + MACHINE + CHIP CONVEYOR)
COLLET CHUCK: TF32
HIGH PRESSURE COOLANT SYSTEM 1000 PSI WITH BAG FILTRATION
SYSTEM.
FLUSHING OF SUB SPINDLE (AIR AND COOLANT)
PART EJECTOR
HINGE TYPE CHIP CONVEYOR
FRONT TOOL POST:
TURNING: 6 POSITION
BORE/DRILL: 4 POSITION
CROSS MILL/DRILL POWER DRIVEN: 4 POSITION
POWER DRIVEN SPEED: 5000 RPM
BACK TOOL POST:
4 UNIVERSAL STATIONS
POWER DRIVEN SPEED: 6000 RPM
THIS 2016 STAR SR-32J-N IS A 9 AXIS SWISS MACHINE USED FOR MACHINING SMALL, HIGH PRECISION PARTS AND INCLUDES AN EDGE PATROL 338 BARFEEDER, TWO (20 COMPLETE GUIDE CHANNEL SETS AND WORKPIECE UNLOADER CONVEYOR.
Imperial
| Axis | 9 |
| Bar Stock Diameter | 1.26"/ 32mm |
| Max Spindle Speed | 7000 rpm |
| Main Spindle Speed | 7000 |
| Spindle Hole Dia | 1.25" |
| Power | 10.1 hp |
| RPM | 7,000 RPM |
| Control | CNC (Fanuc 31iB5) |
| Dimensions | 106.92" x 51.48" x 75.24" - |
| Weight | 6820 |
AXIS:
X1 7"/ 178MM
Y1 12.6"/320MM
Z1 3.46"/ 80MM
XB 11.38"/ 289MM
ZB 1063"/ 270MM
MAIN SPINDLE:
POWER 7.5KW
SPEED 7000 RPM
DRAW TUBE CAPACITY: 32MM
C-AXIS 0.001°
COUNTER SPINDLE:
POWER 3.7KW
SPEED 7000RPM
COLLET CHUCK: TF32
C-AXIS 0.001°
AUTOMATION:
EDGE PATRIOT 338 BAR FEEDER
TWO (2) COMPLETE GUIDE CHANNEL SETS
WORKPIECE UNLOADER CONVEYOR
DIMENSIONS:
MACHINE: LENGTH: 2.7M, DEPTH: 1.3M, HEIGHT: 1.9M
WEIGHT: 3100KG
TOTAL LENGTH: 8.1M (BAR FEEDER + MACHINE + CHIP CONVEYOR)
COLLET CHUCK: TF32
HIGH PRESSURE COOLANT SYSTEM 1000 PSI WITH BAG FILTRATION
SYSTEM.
FLUSHING OF SUB SPINDLE (AIR AND COOLANT)
PART EJECTOR
HINGE TYPE CHIP CONVEYOR
FRONT TOOL POST:
TURNING: 6 POSITION
BORE/DRILL: 4 POSITION
CROSS MILL/DRILL POWER DRIVEN: 4 POSITION
POWER DRIVEN SPEED: 5000 RPM
BACK TOOL POST:
4 UNIVERSAL STATIONS
POWER DRIVEN SPEED: 6000 RPM
