MAZAK MEGATURN 900M VTL WITH MILLING

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
VTL VERT. LIVE SPINDLE CNC
Manufacturer:
MAZAK
Model:
MEGATURN 900M
Condition:
Excellent
Year:
2015
Stock #:
210170
Status:
For Sale

Description

THIS 2015 MEGATURN 900M 36" KITAGAWA JNV36C15 CHUCK, ATLM, POWER TRANSFORMER, 3000 RPM ROTARY TOOL, 1250 RPM SPINDLE SPEED, RETHREADING FUNCTION, 40 HP SPINDLE MOTOR AND MATRIX 2 CONTROL.

Table Dia36"914.4 mm
Maximum Swing39.7"1,008.4 mm
Maximum Turning Diameter36.22"919.99 mm
Maximum Turning Height31.631.6
Table Weight Capacity6,614 lb3,000.1 kg
Vertical Travel of Ram, Z-Axis34.49"876.05 mm
Horizontal Railhead Travel, X-Axis18.6"18.6"
Main Table Motor40/30 HP AC40/30 HP AC
Table RPM1,250 RPM1,250 RPM
Live Spindle Motor10 HP AC10 HP AC
Live Spindle Speed, 2-Ranges30003000
C-Axis Contouring360,000 POSITION360,000 POSITION
Cutting Feed RateX/ Z - 945 IPM -- C - 20 RPMX/ Z - 945 IPM -- C - 20 RPM
Automatic Tool Changer1212
ControlCNC (MAZATROL MATRIX NEXUS 2)CNC (MAZATROL MATRIX NEXUS 2)
Dimensions93.5″ X 152″ X 134″93.5″ X 152″ X 134″
Weight32,000lbs32,000lbs

CHUCK DIAMETER 36″ CHUCK
DISTANCE FROM TABLE TOP TO
TURRET EDGE FACE 6.02″ – 40.55″
SPINDLE NOSE A2-15″
MAX. TORQUE 2696 FT/LBS.
SPINDLE TRAVEL 360,000 N/C CONTOURING
MAX TORQUE/ MILLING SPINDLE 70.2 FT/LBS.

MAZATROL MATRIX NEXUS 2 CONTROL
WINDOWS 7 OPERATING SYSTEM

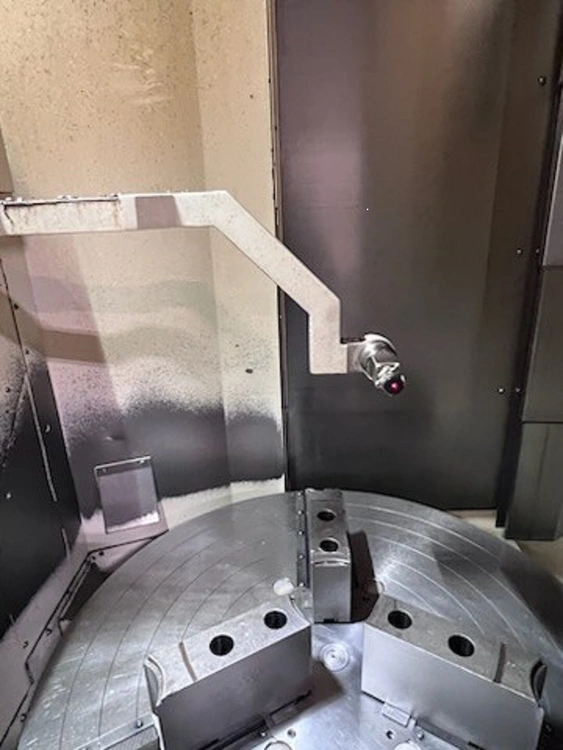

TOOL EYE (AUTOMATIC)
HIGH-POWER COOLANT 118 PSI
RE-THREADING FUNCTION
ELECTRICAL CONTROL BOX UL STANDARD(480V)
POWER TRANSFORMER FOR NORTH AMERICAN MARKET
SPINDLE SPEED 1250 RPM (UNLESS THROTTLED BY CHUCK)
MAIN SPINDLE MOTOR AC 30KW(40HP)
CHIP CONVEYOR REAR DISPOSAL (HINGE TYPE)
POWERFUL, RIGID, HIGH-TORQUE INTEGRATED MAIN DRIVE MOTOR/SPINDLE
MAXIMUM PART LOAD OF 6,614 LBS. (INCLUDING CHUCK)
ROTARY TOOL MILLING (M) MACHINE CONFIGURATION
AVAILABLE AUTOMATIC TOOL CHANGING SYSTEM
TOOL HOLDERS
MANUALS

PURCHASED OPTIONS:
ENG# 76022 – ROTARY TOOL SPINDLE SPEED 3000 RPM/140NM
36″NON THRU 3-JAW CHUCK (KITAGAWA) NV36C15
AUTO PECKING CYCLE WITH LOAD DETECTION
