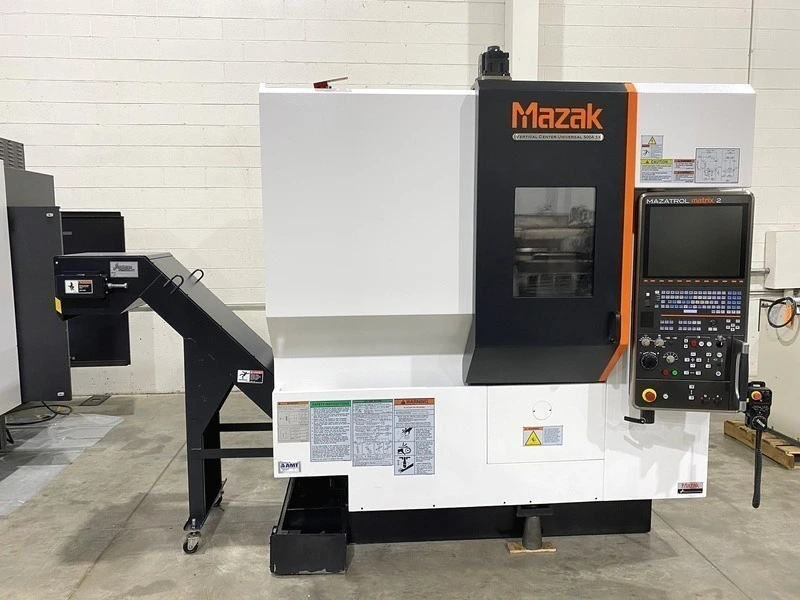

MAZAK VCU 500A/5 AXIS VERTICAL WITH MATRIX 2 CONTROL
Have one to sell?
ConditionUsed
1 available

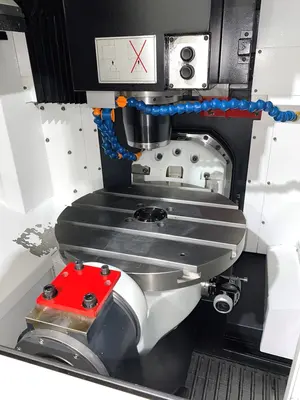

THIS 2015 VCU 500A/5 AXIS VETICAL HAS A MATRIX 2 CONTROL, RENISHAW OFF-SET WORK PROBE, RENISHAW TOOL PROBE, CTS AND CHIP CONVEYO.
PALLET SIZE 19.68”
WORKPIECE SIZE - MAXIMUM 19.68” X 12”
WORKPIECE WEIGHT - MAXIMUM 441 LBS.
TOOL DIAMETER –
MAXIMUM W/ ADJACENT POCKETS OCCUPIED 3.15”
TOOL DIAMETER –
MAXIMUM W/ ADJACENT POCKETS EMPTY 4.92”
TOOL LENGTH – MAXIMUM 10.23”
MAZATROL MATRIX 2 CONTROL WITH MANUAL PULSE GENERATOR, REMOTE JOG HANDWHEEL.
RENISHAW OFF-SET WORK PROBE (IN PROCESS WORKPIECE MEASUREMENT)
RENISHAW TOOL PROBE (TOOL LENGTH DETECTS WEAR AND DAMAGE)
COOLANT SYSTEM, THRU-SPINDLE
DAIKIN OIL CHILLER UNIT
CHIP CONVEYOR
DOCUMENTATION
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION.
THIS 2015 VCU 500A/5 AXIS VETICAL HAS A MATRIX 2 CONTROL, RENISHAW OFF-SET WORK PROBE, RENISHAW TOOL PROBE, CTS AND CHIP CONVEYO.
Imperial
| X Travel | 21.85" |
| Y Travel | 19.88" |
| Z Travel | 20.07" |
| Spindle Speed | 10000 rpm |
| Tool Capacity (ATC) | 30 |
| Main Spindle Motor | 25 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 4.53” - 24.61” |
| Table Type C-Axis Table Rotation | 1 Degree Index |
| Coolant Thru | Yes |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| B-AXIS (Table Swivel) | -110 |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | X/Y/Z…………1,181 IPM - B/C…………10,800 Deg./Min. |
| Control | CNC (Mazatrol Matrix 2) |
| Dimensions | 118.5"(L-R) X 99" (F-B) X 118"(H) |
| Weight | 11,000 LBS. |
PALLET SIZE 19.68”
WORKPIECE SIZE - MAXIMUM 19.68” X 12”
WORKPIECE WEIGHT - MAXIMUM 441 LBS.
TOOL DIAMETER –
MAXIMUM W/ ADJACENT POCKETS OCCUPIED 3.15”
TOOL DIAMETER –
MAXIMUM W/ ADJACENT POCKETS EMPTY 4.92”
TOOL LENGTH – MAXIMUM 10.23”
MAZATROL MATRIX 2 CONTROL WITH MANUAL PULSE GENERATOR, REMOTE JOG HANDWHEEL.
RENISHAW OFF-SET WORK PROBE (IN PROCESS WORKPIECE MEASUREMENT)
RENISHAW TOOL PROBE (TOOL LENGTH DETECTS WEAR AND DAMAGE)
COOLANT SYSTEM, THRU-SPINDLE
DAIKIN OIL CHILLER UNIT
CHIP CONVEYOR
DOCUMENTATION
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION.
