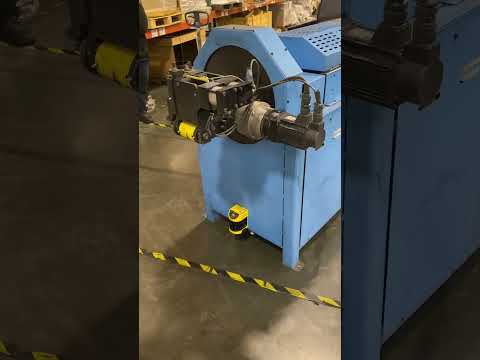

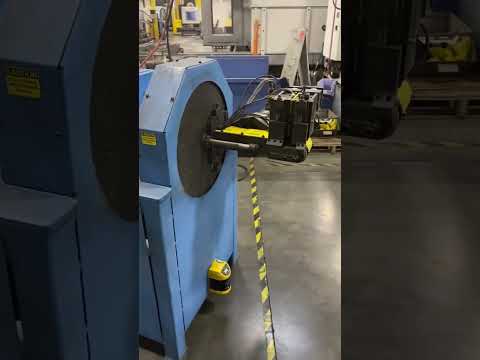

Winton OB23 CNC Orbital Tube Bender, 2015 – Tooling Included

MAXIMUM # OF BENDS: MAXIMUM 64 BENDS PER PART
MACHINE CAPACITY: Ø1/8 – Ø7/8 X .05 WALL COPPER
MACHINE REPEATABILITY: LENGTH ± 0.004”, ROTATION ± 0.25°, ANGLE ± 0.1°
MINIMUM DBB: .50” (DISTANCE BETWEEN BENDS)
MAX SPEEDS; L:R:A: 18”/SECOND: 90°/SECOND: 135°/SECOND
MIN/MAX BEND RADIUS: 0.50”/2.20” CENTERLINE RADIUS / (1.5D OF BEND)
MAXIMUM PART LENGTH: UNLIMITED
MAXIMUM R-AXIS ROTATION: ± 200°
INPUT (MAINS) POWER: 208/220 VAC, 50/60HZ,
SINGLE PHASE
OPERATOR’S MANUAL: ENGLISH – FLASH DRIVE WITH ELECTRONIC COPY (.PDF)
PNEUMATIC PRESSURE: 80 PSI MINIMUM
CONTROL PANEL/DISPLAY: HIGH-RESOLUTION COLOR DISPLAY
WORKING HEIGHT: 38.5”
MACHINE DIMENSIONS: 32” WIDE X 105” LONG X 51” TALL
MACHINE WEIGHT: 2200 POUNDS

∙ THREE (3) AXIS CNC CONTROL OPERATING FROM A WINDOWS 8®PC
∙ CNC WIPE BENDING PROCESS ALLOWS FOR MINIMUM STRAIGHT LENGTHS BETWEEN BENDS
∙ ELECTRIC-POWERED SERVO BEND HEAD (A-AXIS) WITH PROGRAMMABLE SPEED CONTROL
∙ ELECTRIC POWERED SERVO FOR L AXIS AND R AXIS WITH PROGRAMMABLE SPEED CONTROL
∙ PNEUMATIC POWERED CLAMP AND WIPE DIES WITH OVER-CENTER LOCKING MECHANISMS
∙ SWING ARM SAFETY GUARD LOCATED ON BEND HEAD FOR SAFE MACHINE OPERATION
∙ DUAL PLANE STRAIGHTENER ASSEMBLY MOUNTED ON BLANCHARD GROUND PLATES
∙ CW (RH) BEND ARM ROTATION
∙ CHIPLESS TYPE CUTOFF SYSTEM PROVIDES FOR ACCURATE TUBE CUTTING
∙ WINDOWS 8 PC USER INTERFACE AND TWO E STOPS FOR SAFE MACHINE OPERATION
∙ PAYOFF USED TO SUPPORT A BULK SPOOL OF TUBING, NON-POWERED
∙ LASER SCANNER & E STOP FOR SAFE MACHINE OPERATION
∙ ELECTRIC SERVO-CONTROLLED HITCH FEED (L AXIS) FOR ACCURATE LENGTH POSITIONING
∙ X,Y, Z TO L, R, A CONVERSION
∙ 3D PART VIEWER ALLOWS FOR VERIFICATION OF LRA BEND DATA BEFORE BENDING
∙ SPRINGBACK COMPENSATION
∙ SAFETY LASER SCANNER
