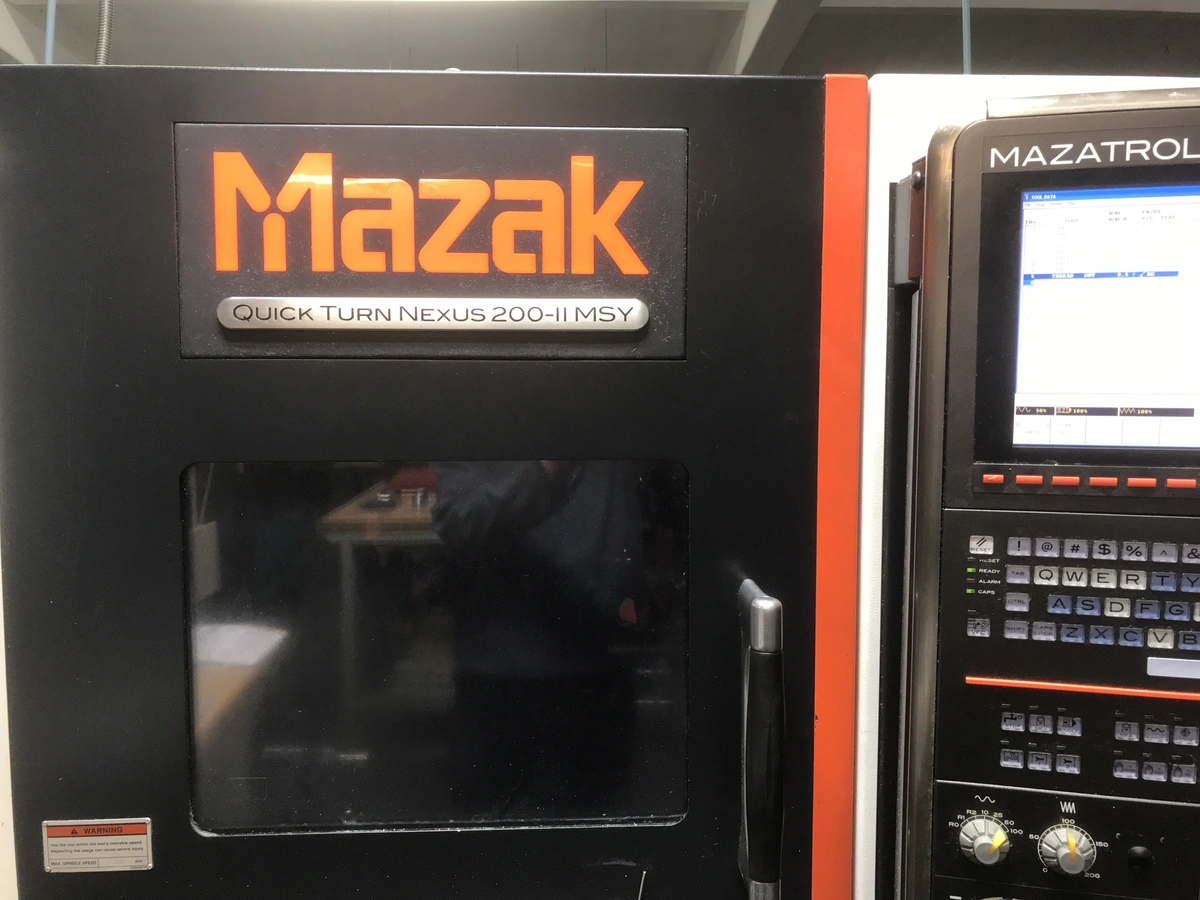

MAZAK QTN 200MSY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 200MSY - II
Condition:
Good
Year:
2013
Stock #:
210203
Status:
For Sale

Description

THIS 2013 MAZAK QTN 200MSY HAS A MATRIX NEXUS CONTROL, 213 PSI CTS, 6000 RPM ROTARY TOOL SPINDLE SPEED, PARTS CATCHER, BAR FEEDER, AND CHIP CONVEYOR.

Maximum Swing26.5"673.1 mm
Max Turning Diameter13.78"350.01 mm
Main Spindle Bore/Max Bar Capacity2.99"/ 2.0"2.99"/ 2.0"
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Cutting Length22.63"574.8 mm
X-Axis Travel (X1, X2, X3)9.069.06
Z-Axis Travel (Z1, Z2, Z3)22.62522.625
Y-Axis Travel (Y1, Y2, Y3)4.0"4.0"
C-Axis Indexing (1, 2).001 N/C CONTOURING.001 N/C CONTOURING
W-Axis Travel Sub Spindle23 in
Main Spindle Chuck Size6"152.4 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.99"75.946 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3535
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size2.052.05
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)1010
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 200
Turret Rotary Tool Horse Power 1, 27.57.5
Bar FeedYesYes
Parts CatcherYesYes
Chip ConveyorYesYes
Milling Spindle Synchronous TappingYesYes
Tool Eye Automatic Front SpindleYesYes
Tool Eye Automatic Second SpindleYesYes
High Pressure Coolant System (PSI)213213
Multi Tap TransformerYesYes
ControlCNC (MAZATROL MATRIX NEXUS)CNC (MAZATROL MATRIX NEXUS)
Weight11,33011,330

MAZATROL MATRIX NEXUS
213 PSI COOLANT THRU SPINDLE
AUTOMATIC TOOL EYE
EIA/ ISO INPUT
MAZAK TAPPING/ BORING TORNADO (EIA/ ISO) (G130)
CHUCK AIR BLAST
6000 RPM ROTARY TOOL SPINDLE SPEED OPTION
MILLING-SPINDLE SYNCHRONOUS
ROYAL COLLET QG-65 (NEED TO CONFIRM)
AUTOMATIC PARTS CATCHER
WORKPIECE CONVEYOR FOR APC
OVERLOAD DETECTION SYSTEM
SIGNAL TOWER - 3 COLOR LIGHTS
CHUCK AIR BLAST - 1S SPINDLE
ADDITIONAL COOLANT NOZZLE
BAR FEEDER
CHIP CONVEYOR
ALL AVAILABLE MANUALS
