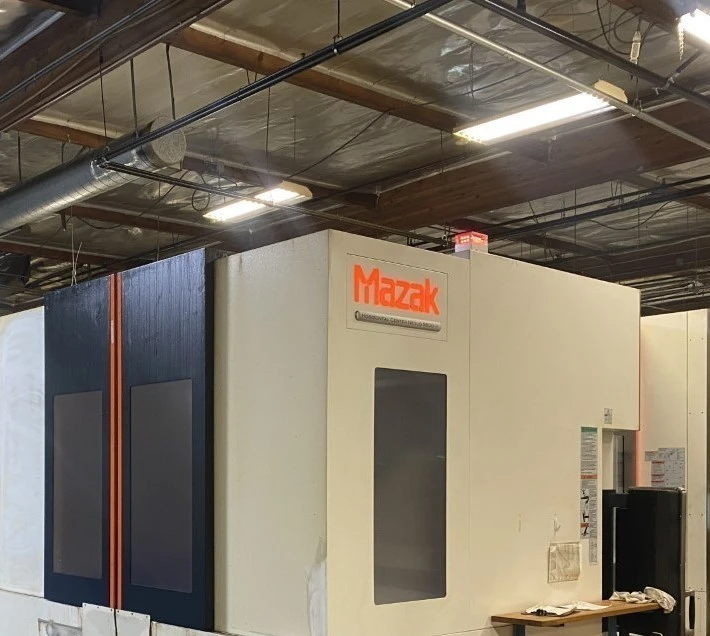

MAZAK HCN 8800 PALLETECH PREPPED

MAZATROL MATRIX NEXUS 2 CONTROL
19" COLOR LCD
EIA/ISO CODE INPUT FUNCTION
(STANDARD)
ADDITIONAL EIA/ISO FUNCTIONS
(REQUIRES EIA/ISO)
CARDBUS I/F (2-SLOT)
LAN PORT
USB I/F (2-PORT)
B) SYNCHRONIZED TAPPING (G84. 2 I G84. 3)
GOO SLOPE CONSTANT
MAZACC-2D SOFTWARE (SHAPE COMPENSATION) (G61.1)
ADD. WORKPIECE COORDINATE SYS.300-PAIRS
INCH/METRIC CONVERSION
TBR AND MMS IN EIA/ISO PROGRAM MACRO
SPINDLE MULTI-POINT ORIENT (M-CODE/1 DEG.)
AUTO TOOL LENGTH MEASUREMENT AND BREAKAGE DETECTION
ABSOLUTE POSITIONING SYSTEM
Y-AXIS TRAVEL 47. 2" (1200MM)
TOOL HIVE 240 TOOLS (HSK) / MULTI-TOOL LOADING
PREP. FOR VISUAL TOOL ID/ CTM REQUIRED (USED FOR TOOL HIVE) MANUAL PULSE GENERATOR 1 [DETACHABLE)
PREP. FOR CHIP CONVEYOR REAR (CONSEP-1)
THRU MILL-SPINDLE COOLANT 8KG/ 113 PSI W/PREP. FOR 1000PSI
SWING-TYPE NIAGARA COOLANT SYSTEM
ONE SET OF MANUALS [CD)
SPINDLE 16000 RPM (HSK 100)
(REQUIRES HSK MAGAZINE)
SPINDLE CHILLER UNIT
COOLERS FOR BALL SCREW (X, Y, Z-AXIS)
PHC (W/ CELL-CONTROLLER(C/C)) APPLICATION

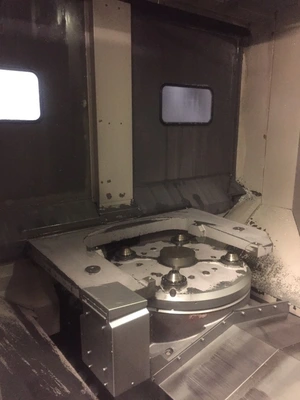

NC ROTARY TABLE (360,000 POSITIONS)
2 PALLET CHANGER
EXTRA PALLETS AVAILABLE (AT A COST)
2 PALLET CHANGER/ CHANGE TO LOCATION BORE T-SLOT PALLETS
AUTO POWER OFF(BREAKER TRIP)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
PREPARATION FOR MMS-B OPTICAL TYPE OMP60
ROLLER GUIDES
KEN OKUYAMA DESIGN
ELECTRICAL CONTROL BOX UL STANDARD (480V)
POWER TRANSFORMER FOR NORTH AMERICAN MKT
SHAPE COMP. FOR ROTARY AXES
(REQUIRES NC ROTARY TABLE)
DYNAMIC COMPENSATION 2,1 (ONLY NC-TABLE)
MAZACC-3D HIGH-SPEED SOFTWARE PACKAGE (G61.1 & G05P2
HIGH SMOOTHING CONTROL (REQUIRES MAZACC-3D)
CONSEP 2000 CHIP CONVEYOR REAR DISPOSAL (DUAL BELT) (MAYFRAN)
MAZAK SUPER FLOW T8 HIGH PRES. COOLANT UNIT (1000PSI/8GPM)
RENISHAW OMP60M OPTICAL PROBE SYSTEM WITHOUT PREPARATION
