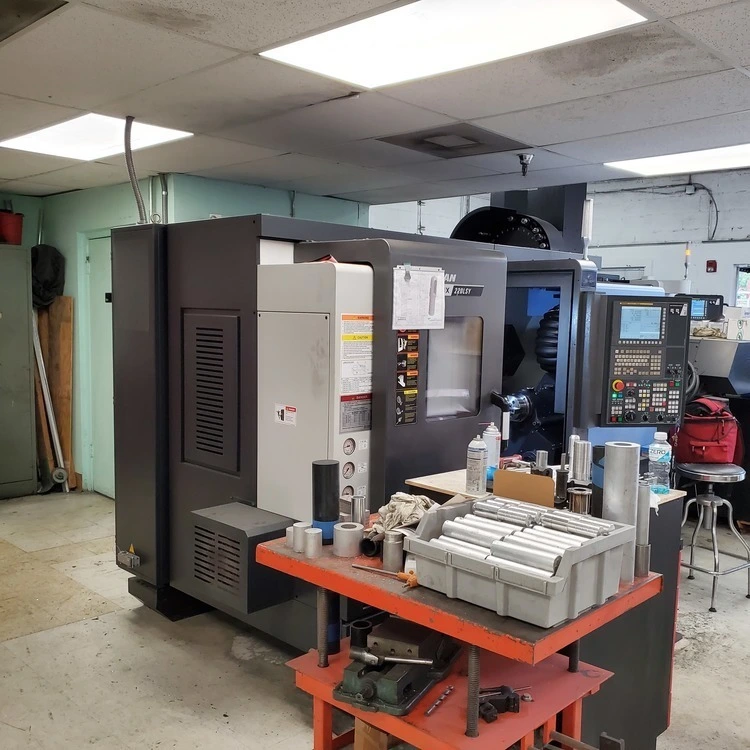

DOOSAN LYNX 220LSYC MULTI-AXIS LATHE
Have one to sell?
ConditionUsed
1 available
2017 DOOSAN LYNX 220LSYC HAS A FANUC CONTROL, 8" & 6" CHUCK, AUTO PARTS CATCHER, PARTS CONVEYOR, PARTS EJECTOR, AND LESS THAN 700 HOURS.
DOOSAN/FANUC I SERIES 64 CNC CONTROL WITH 15" LCD
USB PORT & ETHERNET PORT FOR DNC OPERATION
8" CHUCK ON THE MAIN SPINDLE
6" CHUCK ON SUB SPINDLE
TOOL PRESETTER
AUTO PARTS CATCHER
PARTS OFFLOAD CONVEYOR
SUB SPINDLE PARTS EJECTOR
SUB SPINDLE COOLANT FLUSH
STANDARD COOLANT SYSTEM WITH TANK AND PUMP
FULLY ENCLOSED SPLASH AND SAFETY GUARDING
ALL TURNING & LIVE TOOL HOLDERS,
ALL AVAILABLE MANUALS
*****APPROXIMATELY 675 TOTAL HOURS OF OPERATION*****
2017 DOOSAN LYNX 220LSYC HAS A FANUC CONTROL, 8" & 6" CHUCK, AUTO PARTS CATCHER, PARTS CONVEYOR, PARTS EJECTOR, AND LESS THAN 700 HOURS.
Imperial
| Maximum Swing | 23.6" |
| Max Turning Diameter | 11.8" |
| Main Spindle Bore/Max Bar Capacity | 2.6" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 15.7" |
| Maximum Cutting Length | 20.1" |
| X-Axis Travel (X1, X2, X3) | 8.1" |
| Z-Axis Travel (Z1, Z2, Z3) | 22" |
| Y-Axis Travel (Y1, Y2, Y3) | 4" (+/- 2") |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Maximum Bar Work | 2.6" |
| Main Spindle Speed | 4,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20 / 15 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 7.5 / 5 HP |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Control | CNC (DOOSAN/FANUC I SERIES) |
| Dimensions | 114" x 68" x 76" |
| Weight | 9500 LBS |
DOOSAN/FANUC I SERIES 64 CNC CONTROL WITH 15" LCD
USB PORT & ETHERNET PORT FOR DNC OPERATION
8" CHUCK ON THE MAIN SPINDLE
6" CHUCK ON SUB SPINDLE
TOOL PRESETTER
AUTO PARTS CATCHER
PARTS OFFLOAD CONVEYOR
SUB SPINDLE PARTS EJECTOR
SUB SPINDLE COOLANT FLUSH
STANDARD COOLANT SYSTEM WITH TANK AND PUMP
FULLY ENCLOSED SPLASH AND SAFETY GUARDING
ALL TURNING & LIVE TOOL HOLDERS,
ALL AVAILABLE MANUALS
*****APPROXIMATELY 675 TOTAL HOURS OF OPERATION*****
