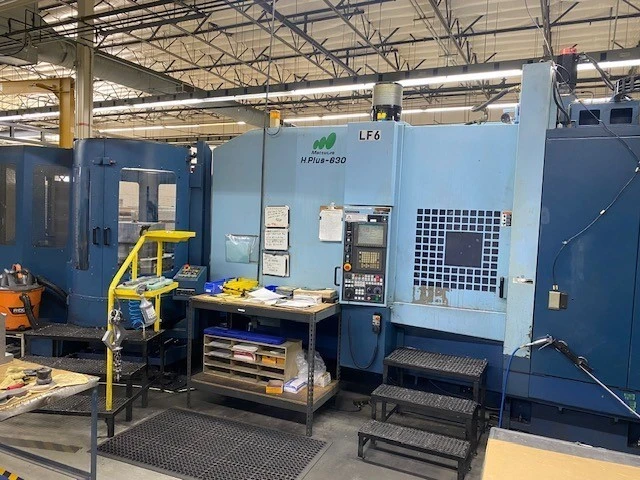

MATSUURA H PLUS 630/ 6 APC
Have one to sell?
ConditionUsed
1 available
PALLET SIZE / NUMBER OF PALLETS 24.8"X24.8" / 6 PALLET POOL
TABLE INDEXING 0.001 DEGREE INDEXING - FULL 4TH AXIS
MAXIMUM TABLE LOAD 2,640 LBS.
MAXIMUM WORKPIECE DIAMETER / HEIGHT 41.33" / 43.89"
X-AXIS TRAVEL 41.33"
Y-AXIS TRAVEL 36.22"
Z-AXIS TRAVEL 38.97"
SPINDLE TAPER #50 TAPER
SPINDLE SPEEDS 12,000 RPM
SPINDLE MOTOR 40 HP
RAPID TRAVERSE RATES 1969 IPM
NUMBER OF TOOL POSITIONS 180 STATION TOOL CHANGER
MAXIMUM TOOL DIAMETER/ LENGTH /WEIGHT 5.9"/19.68"/44 LBS
MATSUURA G-TECH 30i
TOOL PRE-SETTER
CHIP CONVEYOR
Imperial
| X-AXIS TRAVEL | 41.33" |
| Y-AXIS TRAVEL | 36.22" |
| Z-AXIS TRAVEL | 38.97" |
| SPINDLE TAPER | CAT 50 |
| SPINDLE DRIVE MOTOR | 40 hp |
| SPINDLE SPEED | 12000 rpm |
| MAXIMUM WORKPIECE DIAMETER | 41.33" |
| TOOL CAPACITY (ATC) | 180 |
| NUMBER OF PALLETS | 6 |
| PALLET SIZE | 24.8"X24.8" / 6 PALLET POOL |
| PALLET SIZE (W) | 24.8" |
| PALLET SIZE (L) | 24.8" |
| PALLET LOAD CAPACITY | 2640 lb |
| 4 AXIS PALLET TABLE INDEXING | .001 |
| CHIP CONVEYOR | Yes |
| Control | CNC (Matsuura G-Tech 30i) |
| Dimensions | 32' 6" x 16.5' |
| Weight | 50,000 lbs. (machine only) |
PALLET SIZE / NUMBER OF PALLETS 24.8"X24.8" / 6 PALLET POOL
TABLE INDEXING 0.001 DEGREE INDEXING - FULL 4TH AXIS
MAXIMUM TABLE LOAD 2,640 LBS.
MAXIMUM WORKPIECE DIAMETER / HEIGHT 41.33" / 43.89"
X-AXIS TRAVEL 41.33"
Y-AXIS TRAVEL 36.22"
Z-AXIS TRAVEL 38.97"
SPINDLE TAPER #50 TAPER
SPINDLE SPEEDS 12,000 RPM
SPINDLE MOTOR 40 HP
RAPID TRAVERSE RATES 1969 IPM
NUMBER OF TOOL POSITIONS 180 STATION TOOL CHANGER
MAXIMUM TOOL DIAMETER/ LENGTH /WEIGHT 5.9"/19.68"/44 LBS
MATSUURA G-TECH 30i
TOOL PRE-SETTER
CHIP CONVEYOR
