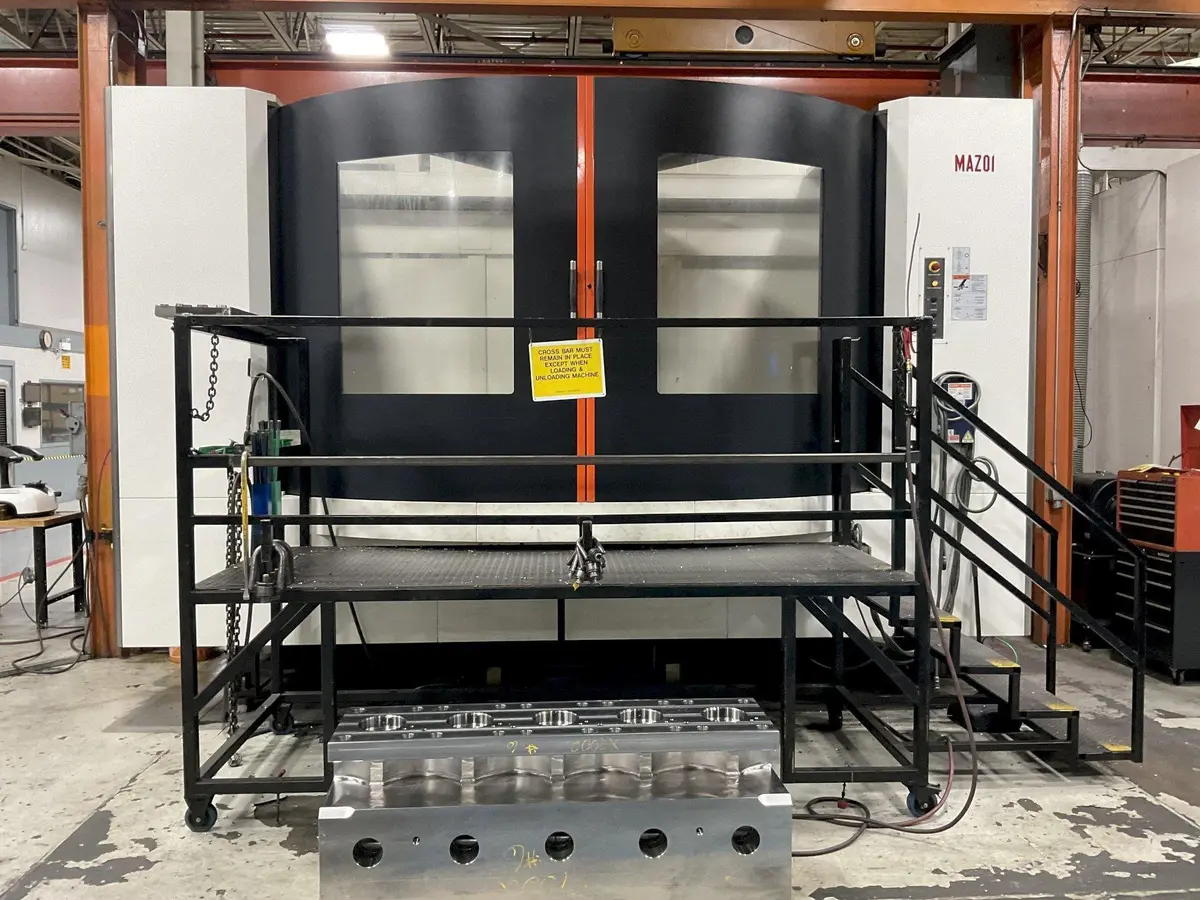

2013 MAZAK HCN 10800-II
Have one to sell?
ConditionUsed
1 available
THIS 2013 HCN 10800-II HAS A MAZATROL MATRIX NEXUS 2 CNC CONTROL, 80 TOOL ATC, 1000 PSI CTS CHIP BLASTER, RENISHAW OMP60M OPTICAL PROBE, CHIP CONVEYOR, AND COOLANT TANK.
MAZAK MAZATROL MATRIX NEXUS 2 CNC CONTROL
WINDOWS 7 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
MT CONNECT PREPARATION (SOFTWARE UPGRADE TO SUPPORT)
ETHERNET OPERATION FUNCTION
ADDITIONAL M CODE ONE SET (2 M-CODES)
D)MAZACC-3D HIGH-SPEED SOFTWARE PACKAGE (G61.1 & G05P2)
D)HIGH SMOOTHING CONTROL (REQUIRES MAZACC-3D)
MAIN SPINDLE MOTOR AC 37KW (50HP)
HI-TORQUE SPINDLE 898 FT-LBS/1218NM 8000RPM AC50HP
CHIP BLASTER GV2-80 1000 PSI COOLANT PUMP UP TO 21 GPM.
HIGH-PRESSURE SWITCH FOR THRU-SPINDLE COOLANT
SPINDLE CHILLER UNIT
COOLANT TEMP CONTROL SYSTEM
MIST COLLECTOR
PMC (W/NEW CELL-CONTROLLER) PREPARATION-B
NC ROTARY TABLE (360,000 POSITIONS)
2 PALLET CHANGER
RENISHAW OMP60M OPTICAL PROBE SYSTEM
AUTO PECKING CYCLE WITH LOAD DETECTION
TAP RETRACT FUNCTION
HAND GREASE PUMP (LG-400) (TO REFILL CENTRAL LUBE RESERVOIR)
GREASE CARTRIDGE EP-1 (2 SETS) (FOR CENTRAL LUBE RESERVOIR)
JAPAN SUPPLIED RETROFIT- MAX. TOOL 14.2" DIA X 25.6
LONG (CHAIN ONLY) W/ LIMITATIONS
4-TON LOAD RETROFIT KIT
CSA CERTIFICATION 480V
480VOLT SUPPLY MAIN BREAKER
150KVA 3PHASE 600-277/480 4 TAPS TRANSFORMER
MIST COLLECTOR & THRU SPINDLE COOLANT PRESSURE SWITCH
RELOCATION DEVICE
THIS 2013 HCN 10800-II HAS A MAZATROL MATRIX NEXUS 2 CNC CONTROL, 80 TOOL ATC, 1000 PSI CTS CHIP BLASTER, RENISHAW OMP60M OPTICAL PROBE, CHIP CONVEYOR, AND COOLANT TANK.
Imperial
| X-AXIS TRAVEL | 66.93" |
| Y-AXIS TRAVEL | 55.12" |
| Z-AXIS TRAVEL | 60.04" |
| SPINDLE TAPER | CAT 50 |
| SPINDLE DRIVE MOTOR | 50 hp |
| SPINDLE SPEED | 8000 rpm |
| TOOL CAPACITY (ATC) | 80 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 39.37" x 39.37" |
| PALLET SIZE (W) | 39.37" |
| PALLET SIZE (L) | 39.37" |
| 4 AXIS PALLET TABLE INDEXING | N/C Contouring |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 1000 psi |
| CHIP CONVEYOR | Yes |
| Control | CNC (MAZATROL MATRIX NEXUS 2) |
| Dimensions | 240" x 350" x 160" |
| Weight | 100,000 LBS |
MAZAK MAZATROL MATRIX NEXUS 2 CNC CONTROL
WINDOWS 7 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
MT CONNECT PREPARATION (SOFTWARE UPGRADE TO SUPPORT)
ETHERNET OPERATION FUNCTION
ADDITIONAL M CODE ONE SET (2 M-CODES)
D)MAZACC-3D HIGH-SPEED SOFTWARE PACKAGE (G61.1 & G05P2)
D)HIGH SMOOTHING CONTROL (REQUIRES MAZACC-3D)
MAIN SPINDLE MOTOR AC 37KW (50HP)
HI-TORQUE SPINDLE 898 FT-LBS/1218NM 8000RPM AC50HP
CHIP BLASTER GV2-80 1000 PSI COOLANT PUMP UP TO 21 GPM.
HIGH-PRESSURE SWITCH FOR THRU-SPINDLE COOLANT
SPINDLE CHILLER UNIT
COOLANT TEMP CONTROL SYSTEM
MIST COLLECTOR
PMC (W/NEW CELL-CONTROLLER) PREPARATION-B
NC ROTARY TABLE (360,000 POSITIONS)
2 PALLET CHANGER
RENISHAW OMP60M OPTICAL PROBE SYSTEM
AUTO PECKING CYCLE WITH LOAD DETECTION
TAP RETRACT FUNCTION
HAND GREASE PUMP (LG-400) (TO REFILL CENTRAL LUBE RESERVOIR)
GREASE CARTRIDGE EP-1 (2 SETS) (FOR CENTRAL LUBE RESERVOIR)
JAPAN SUPPLIED RETROFIT- MAX. TOOL 14.2" DIA X 25.6
LONG (CHAIN ONLY) W/ LIMITATIONS
4-TON LOAD RETROFIT KIT
CSA CERTIFICATION 480V
480VOLT SUPPLY MAIN BREAKER
150KVA 3PHASE 600-277/480 4 TAPS TRANSFORMER
MIST COLLECTOR & THRU SPINDLE COOLANT PRESSURE SWITCH
RELOCATION DEVICE
