MAKINO
Have one to sell?
ConditionUsed
1 available

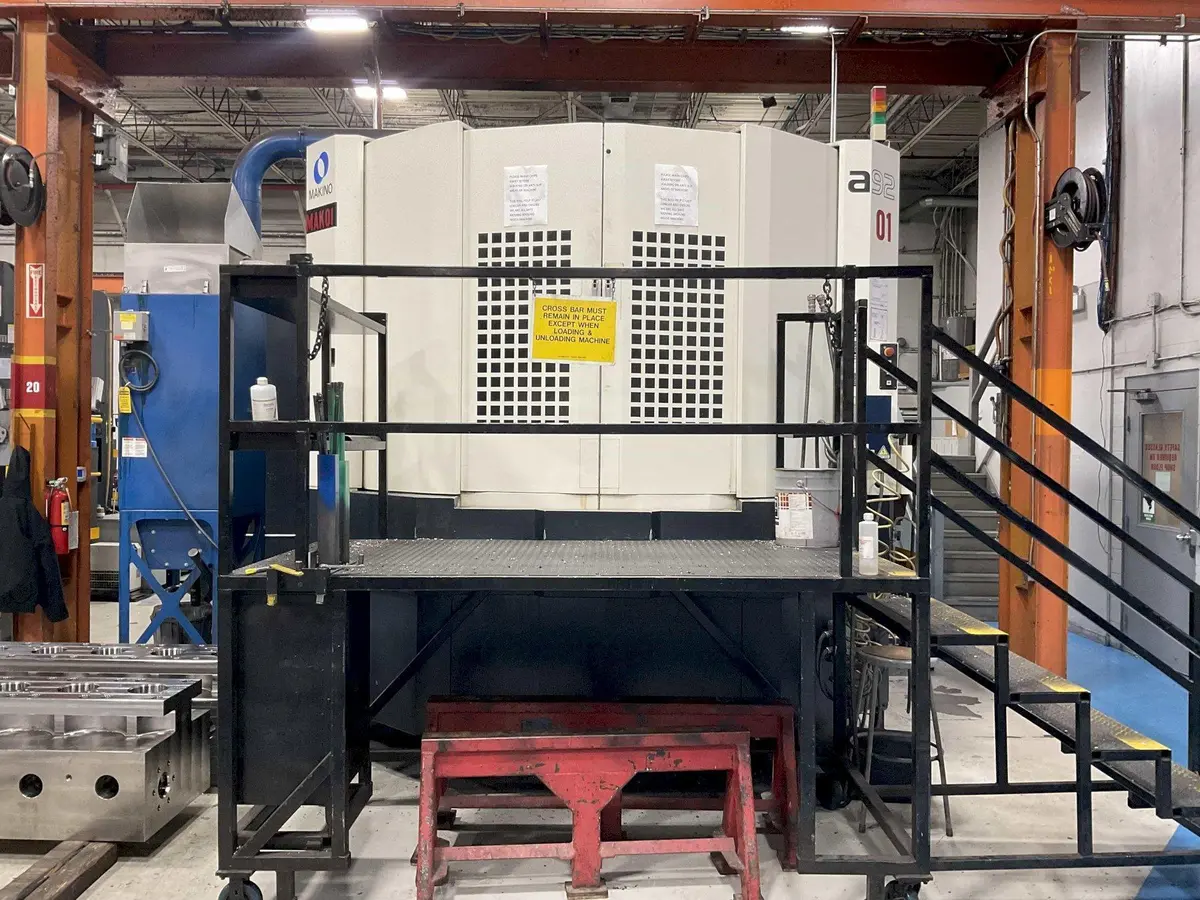

2011 MAKINO a92 HAS A MAKINO PROFESSIONAL 5 CNC CONTROL, 146 TOOL ATC, 0.001 DEGREE 4TH, COOLANT THROUGH SPINDLE, CHIP CONVEYOR, COOLANT TANK AND RENISHAW PROBING.
MAKINO PROFESSIONAL 5 CNC CONTROL
COOLANT THROUGH SPINDLE
146 TOOL ATC
CHIP CONVEYOR
COOLANT TANK
RENISHAW PROBING
2011 MAKINO a92 HAS A MAKINO PROFESSIONAL 5 CNC CONTROL, 146 TOOL ATC, 0.001 DEGREE 4TH, COOLANT THROUGH SPINDLE, CHIP CONVEYOR, COOLANT TANK AND RENISHAW PROBING.
Imperial
| X-AXIS TRAVEL | 59.8" |
| Y-AXIS TRAVEL | 49.2" |
| Z-AXIS TRAVEL | 53.1" |
| SPINDLE TAPER | CAT 50 |
| SPINDLE DRIVE MOTOR | 47 hp |
| SPINDLE SPEED | 8000 rpm |
| MAX WORKPIECE SIZE | 59" X 59" |
| MAXIMUM WORKPIECE DIAMETER | 5,959" |
| TOOL CAPACITY (ATC) | 146 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 31.5" X 39.4" |
| PALLET SIZE (W) | 31.5" |
| PALLET SIZE (L) | 39.4" |
| PALLET LOAD CAPACITY | 4400 lb |
| 4 AXIS PALLET TABLE INDEXING | .001 |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 300 psi |
| CHIP CONVEYOR | Yes |
| Control | CNC (Makino Professional 5) |
| Dimensions | 136 X 197 X 133 |
| Weight | 80,000 LBS |
MAKINO PROFESSIONAL 5 CNC CONTROL
COOLANT THROUGH SPINDLE
146 TOOL ATC
CHIP CONVEYOR
COOLANT TANK
RENISHAW PROBING
