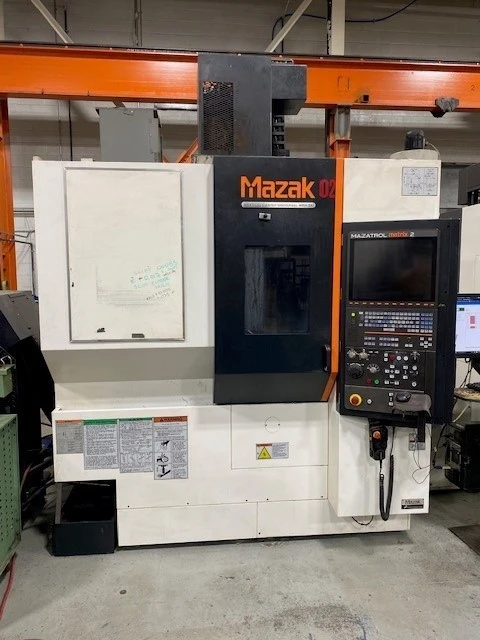

MAZAK VCU 400A /5 AXIS

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MAZAK
Model:
VCU 400A
Condition:
Good
Year:
2014
Stock #:
210223
Status:
For Sale

Description

WELL-MAINTAINED VCU 400A/ 5X IS A SMALL 5-AXIS VERTICAL WITH B & C AXIS AND TRAVELS OF 19.88 X 15.75 X 20.07, MATRIX 2 CONTROL, AND A CAT 40/ 12000 RPM SPINDLE OPTION.

X Travel19.88"504.95 mm
Y Travel15.75"400.05 mm
Z Travel20.07"509.78 mm
Spindle Speed12,000 RPM12000 rpm
Tool Capacity (ATC)3030
Main Spindle Motor15 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top4.53" - 24.61"4.53" - 24.61"
4 Axis Table Rotation..
Built In or Bolt On TableBolt On TableBolt On Table
5th Axis Rotary Table Size15.75"400.05 mm
5 Axis Programmable Axis'sFull 5 Axis's ContouringFull 5 Axis's Contouring
Table Type C-Axis Table RotationN/C ContouringN/C Contouring
Coolant Thru High PressureYesYes
Hi Pressure Coolant System213 psi
Part ProbeYesYes
Tool Probe/Auto Tool Length MeasurementYesYes
ControlCNC (MAZATROL MATRIX II)CNC (MAZATROL MATRIX II)
Dimensions84.65" x 124.21" x 125.03"84.65" x 124.21" x 125.03"
Weight14,330 LBS14,330 LBS

SPECIFICATIONS:
TABLE SIZE              15.75"
MAX WORKPIECE SIZE      15.75" x 15.75"
MAX WORKPIECE HEIGHT    12"
X AXIS TRAVEL           19.88"
Y-AXIS TRAVEL           15.75"
Z AXIS TRAVEL           20.07"
B AXIS TRAVEL 0.0001    +95 ~ -45 DEGREES
C AXIS TRAVEL 0.0001    +/- 360 DEGREES
SPINDLE NOSE TO TABLE   4.53"/ 24.61"
MAX TABLE WEIGHT        441 LBS
SPINDLE SPEED/MOTOR     (30 min) 12,000 RPM/15HP (OPTION 10K-STD)
SPINDLE TAPER           CAT 40
RAPID TRAVERSE (X/Y/Z)  945IPM
NUMBER OF TOOLS         30
MAX TOOL DIAMETER       3.15"
   W/ NO ADJACENT TOOLS 4.92"
TOOL SHANK              BIG PLUS 40
DIMENSIONS              84.65" x 124.21" x 125.03
MACHINEWEIGHT           14,330 LBS

MAZATROL MATRIX 2 CONTROL
SPINDLE SPEED 12000 PRM (CAT40) 25 HP (18.5KW)/5 MIN GREASE
WORK LIGHT (LED)
WINDOWS 7 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
MT CONNECT PREPARATION (SOFTWARE UPGRADE TO SUPPORT)
AIR THRU SPINDLE WHILE RUNNING (FOR MACH. WITH THRU-COOLANT)
RENISHAW RTS-AA RADIO TOOL SETTER, INCLUDING PREP FOR MMSB
RENISHAW RMP600 PROB W/SHANK ONLY & INSPT. +SOFTWARE
WORK SETTING ERROR COMPENSATION
JORGENSEN HINGE CONVEYOR LEFT SIDE DISP. (48" DISCHARGE)
E-STOP FOR CHIP CONVEYORS
HI-PRESS COOLANT THRU SPINDLE SYSTEM (15KGF, 213PSI)
D)MAZACC-3D HIGH-SPEED SOFT
F)TOOL TIP POINT CONTROL/SIMULTANEOUS 5 AXES (G43.4)
F)TOOL RADIUS COMPENSATION/5-AXIS (G41.5/G42.5
GOO SLOPE CONSTANT
MANUAL PULSE GENERATOR 1 DIAL (DETACHABLE)
AUTO PECKING CYCLE WITH LOAD DETECTION
B)SYNCHRONIZED TAPPING G84.2/G84.3
ETHERNET OPERATION FUNCTION
5-AXIS SPLINE INTERPOLATION (G61.2)
DUCT FLANGE FOR MIST-COLLECTOR DIA.148MM
MT CONNECT ADAPTER SOFTWARE
SHAPE COMPENSATION FOR ROTARY AXES (G61.1)
45KVA 3-PHASE 600-120/208 ISOLATION TYPE CU TRANSFORMER
POWER TRANSFORMER FOR NORTH AMERICAN MKT
RELOCATION DEVICE
