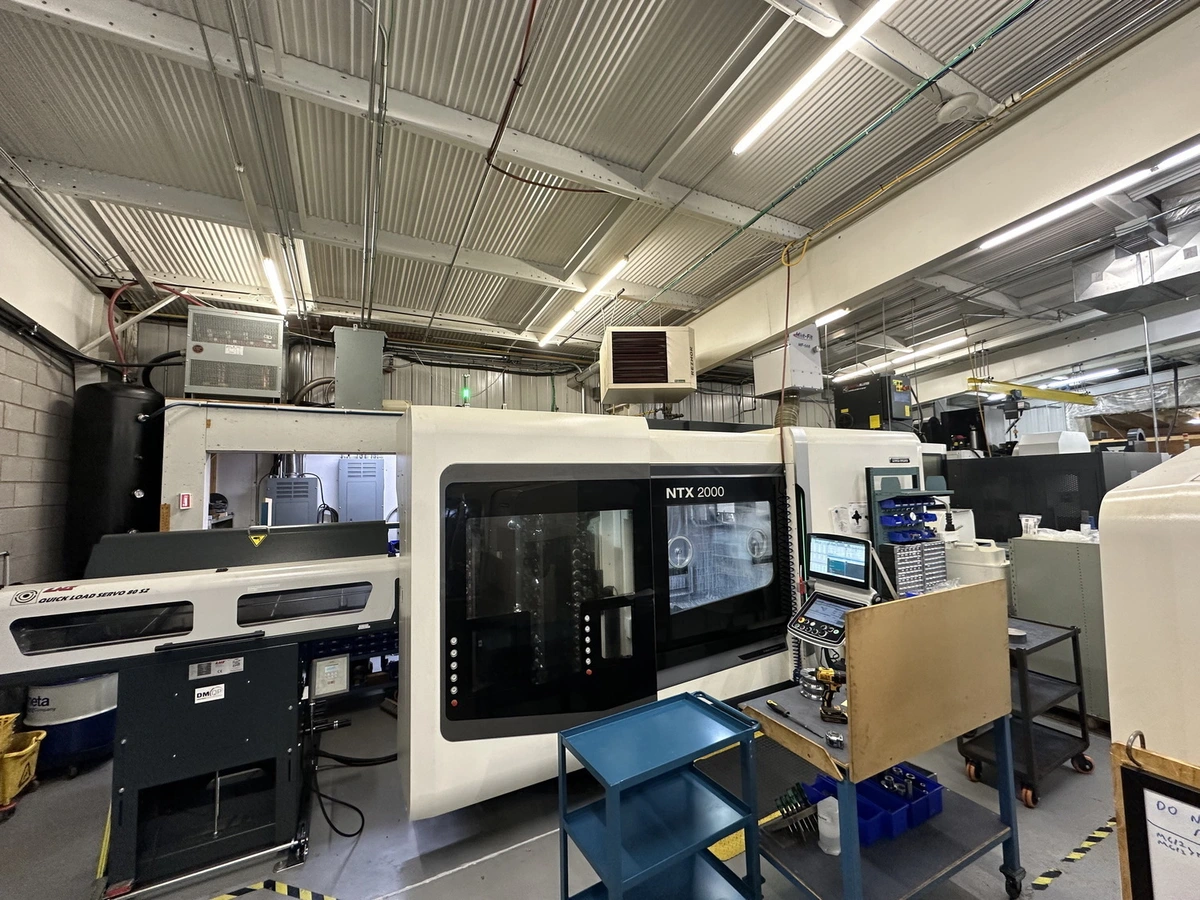

2020 DMG MORI NTX2000/1500 MULTI-AXIS CNC LATHE - 9 AXIS
CNC LATHES MULTI AXIS
2020 DMG MORI NTX2000/1500 MULTI-AXIS CNC LATHE, SUB SPINDLE, Y-AXIS, B-AXIS, 80 POSITION ATC, 12 POSITION LOWER TURRET, DUAL 8" KITAGAWA HOLLOW CHUCKS, LIVE TOOLING, HIGH-SPEED TOOL SPINDLE, TSC, LNS BARFEEDER ROBOT LOADER/UNLOADER, CHIP CONVEYOR, GEAR HOBBING, MULTI-THREADING, RENISHAW TOUCH SENSOR AND A TOOLING PACKAGE WORTH OVER 220K (USD!).
| Maximum Swing | 25.9" |
| Max Turning Diameter | 24" |
| Main Spindle Bore/Max Bar Capacity | 2.87"/ 2.5" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 25.9" |
| X-Axis Travel (X1, X2, X3) | 19.5" |
| Z-Axis Travel (Z1, Z2, Z3) | 61.4 |
| Y-Axis Travel (Y1, Y2, Y3) | +/-4.9" |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.87" |
| Main Spindle Maximum Bar Work | 2.5" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.87 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 500 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 30 |
| ATC Magazine Capacity | 80 |
| Turret Tool Positions 1, 2 | 12 |
| B-Axis Travel | ±120° |
| B-Axis Milling Spindle Speed | 12000 rpm |
| B Axis Rotary Tool Spindle Speed | 20000 rpm |
| Chip Conveyor | Yes |
| Coolant Thru Milling Head | Yes |
| Workpiece Unloader & Conveyor | ROBOT LOADER/ UNLOADER |
| Work Measuring System (Probe) | YES |
| Control | CNC (Fanuc 31iB5) |
Fanuc 31iB5
GEAR HOBBING OPTION
MULTI-THREADING OPTION
Y-AXIS
B-AXIS
LIVE TOOLING
HIGH-SPEED TOOL SPINDLE (20,000 RPM)
(2) 8" KITAGAWA HOLLOW CHUCKS
THROUGH SPINDLE COOLANT (TOOLING SPINDLE)
ROBOT LOADER/UNLOADER
CHELOS ERGOLINE TOUCH
LNS QUICK LOAD SERVO 80 S2 BARFEEDER
CHIP CONVEYOR
RENISHAW TOUCH SENSOR
TOOL PRESETTER
WORKPIECE EJECTOR
Includes tooling package worth over 220K USD
(Total replacement cost approximately $1.3M USD)
