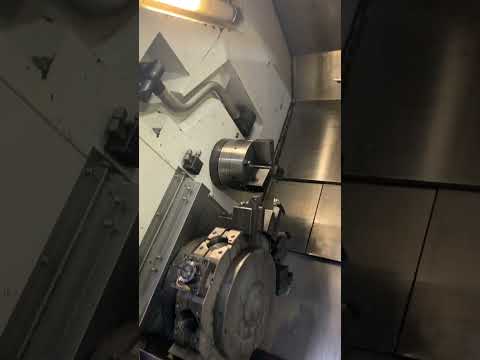

HWACHEON T2-2TYSMC TWIN TURRET/ TWIN SPINDLE
Have one to sell?
ConditionUsed
1 available
THIS 2016 HWACHEON T2-2TYSMC HAS A Fanuc OiTD, 8" DIAMETER HYDRAULIC POWER CHUCK(S) WITH ONE SET OF SOFT JAWS, JORGENSON CHIP CONVEYOR, TOOL PRE-SETTER, BARFEED INTERFACE
PARTS CATCHER (W/ PARTS CONVEYOR FOR SUB-SPINDLE MACHINE)
12 STATION TURRET(S) WITH SERVO INDEX / NON LIFT CURVIC COUPLING
COMPLETE COOLANT SYSTEM COOLANT PRESSURE CAPABILITY UP TO 15 BAR (220 PSI) (NEED TO PURCHASE HI-PRESSURE SYSTEM), 45-DEGREE SLANT BED DESIGN WITH TORQUE TUBE DESIGN
ID/OD TOOLING IN ANY POSITION ON THE TURRET
Fanuc OiTD
8" DIAMETER HYDRAULIC POWER CHUCK(S) WITH ONE SET OF SOFT JAWS
JORGENSON CHIP CONVEYOR
TOOL PRE-SETTER
BARFEED INTERFACE
PARTS CATCHER (W/ PARTS CONVEYOR FOR SUB-SPINDLE MACHINE)
12 STATION TURRET(S) WITH SERVO INDEX / NON-LIFT CURVIC COUPLING
COMPLETE COOLANT SYSTEM COOLANT PRESSURE CAPABILITY UP TO 15 BAR (220 PSI) (NEED TO PURCHASE HI-PRESSURE SYSTEM)
CHIP AND COOLANT SPLASH GUARDING SEPARATE FROM BED CASTING
HYDRAULIC UNIT
DOOR INTERLOCK
STANDARD WORK LIGHT
2-COLOR SIGNAL LAMP (RED/GREEN)
45-DEGREE SLANT BED DESIGN WITH TORQUE TUBE DESIGN
ID/OD TOOLING IN ANY POSITION ON THE TURRET
FOOTSWITCH FOR HYDRAULIC CHUCKS
ONE (1) SET OF ADJUSTING TOOLS
MANUALS: PROGRAMMING, OPERATING, TOOLING, MAINTENANCE
THIS 2016 HWACHEON T2-2TYSMC HAS A Fanuc OiTD, 8" DIAMETER HYDRAULIC POWER CHUCK(S) WITH ONE SET OF SOFT JAWS, JORGENSON CHIP CONVEYOR, TOOL PRE-SETTER, BARFEED INTERFACE
PARTS CATCHER (W/ PARTS CONVEYOR FOR SUB-SPINDLE MACHINE)
12 STATION TURRET(S) WITH SERVO INDEX / NON LIFT CURVIC COUPLING
COMPLETE COOLANT SYSTEM COOLANT PRESSURE CAPABILITY UP TO 15 BAR (220 PSI) (NEED TO PURCHASE HI-PRESSURE SYSTEM), 45-DEGREE SLANT BED DESIGN WITH TORQUE TUBE DESIGN
ID/OD TOOLING IN ANY POSITION ON THE TURRET
Imperial
| Maximum Swing | 17.7" |
| Max Turning Diameter | 14.9" |
| Main Spindle Bore/Max Bar Capacity | 2.99"/ 2.5" |
| Tail Stock/Sub Spindle | SUBSPINDLE |
| Maximum Cutting Length | 20.5" |
| X-Axis Travel (X1, X2, X3) | 9.64"/ 8.3" |
| Z-Axis Travel (Z1, Z2, Z3) | 20.5"/ 20.5" |
| Y-Axis Travel (Y1, Y2, Y3) | 3.93” +/-1.96” |
| C-Axis Indexing (1, 2) | 0.001 Degrees |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 15/ 20 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 3 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 5,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15/ 20 |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.0 |
| B-Axis Travel | 21.65" |
| Chip Conveyor | Yes |
| Upper Turret Positions | 12 |
| Lower Turret Positions | 12 |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 590 |
| Rapid Traverse, Z-Axis | 1181 |
| Control | CNC (FANUC OiTD) |
| Dimensions | 122" x 86” x 82.7" |
| Weight | 20,944 Lbs |
Fanuc OiTD
8" DIAMETER HYDRAULIC POWER CHUCK(S) WITH ONE SET OF SOFT JAWS
JORGENSON CHIP CONVEYOR
TOOL PRE-SETTER
BARFEED INTERFACE
PARTS CATCHER (W/ PARTS CONVEYOR FOR SUB-SPINDLE MACHINE)
12 STATION TURRET(S) WITH SERVO INDEX / NON-LIFT CURVIC COUPLING
COMPLETE COOLANT SYSTEM COOLANT PRESSURE CAPABILITY UP TO 15 BAR (220 PSI) (NEED TO PURCHASE HI-PRESSURE SYSTEM)
CHIP AND COOLANT SPLASH GUARDING SEPARATE FROM BED CASTING
HYDRAULIC UNIT
DOOR INTERLOCK
STANDARD WORK LIGHT
2-COLOR SIGNAL LAMP (RED/GREEN)
45-DEGREE SLANT BED DESIGN WITH TORQUE TUBE DESIGN
ID/OD TOOLING IN ANY POSITION ON THE TURRET
FOOTSWITCH FOR HYDRAULIC CHUCKS
ONE (1) SET OF ADJUSTING TOOLS
MANUALS: PROGRAMMING, OPERATING, TOOLING, MAINTENANCE
