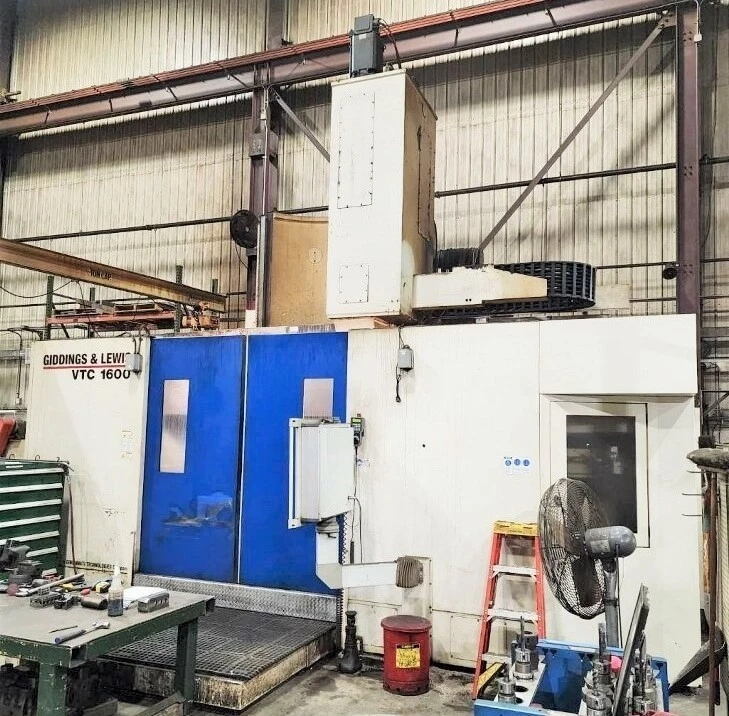

Gidding & Lewis VTC-1600 CNC Vertical Boring Mill W/ Milling
Have one to sell?
ConditionUsed
1 available
Explore precise machining with the Gidding & Lewis VTC-1600. This 2006 CNC Vertical Boring Mill features a 63" table (chuck not included), 100 HP motor, 25-tool changer, and Siemens 840D control. Achieve efficiency with live spindle, C-axis, coolant system, and chip conveyor.
TABLE DIAMETER 62.99"
MAXIMUM TURNING DIAMETER 78.74"
RAM STROKE 68.89"
MAXIMUM CUTTING HEIGHT 75.98"
TURNING TOOL TAPER WEDGE LOCK
TABLE SPEEDS 1-400 RPM
TABLE MOTOR 100 HP
TABLE INDEXING, C-AXIS .001 DEGREES
LIVE MILLING:
LIVE MILLING SPINDLE SPEEDS 4,000 RPM
LIVE SPINDLE TAPER KM80
LIVE MILLING MOTOR 44 HP
SIEMENS 840D POWERLINE CNC CONTROL
25-STATION AUTOMATIC TOOL CHANGER (5WL+1LS+0RA+19KM80)
62.99" DIA. 3-JAW / 4-JAW COMBINATION CHUCKS
LIVE SPINDLE FOR MILLING & DRILLING
C-AXIS TABLE FOR MILLING & DRILLING
COOLANT THRU SPINDLE
FULL CHIP AND COOLANT ENCLOSURE WITH ROOF
CHIP CONVEYOR
100 HP TABLE MOTOR
FULL SET OF PRINTS AND MANUALS
ATTACHMENTS:
TURNING ADAPTOR LH
LIVE RIGHT ANGLE SPINDLE
PROBE
Explore precise machining with the Gidding & Lewis VTC-1600. This 2006 CNC Vertical Boring Mill features a 63" table (chuck not included), 100 HP motor, 25-tool changer, and Siemens 840D control. Achieve efficiency with live spindle, C-axis, coolant system, and chip conveyor.
Imperial
| Table Dia | 63" |
| Maximum Swing | 78.7" |
| Maximum Turning Diameter | 78.74" |
| Maximum Turning Height | 75.9 |
| Vertical Travel of Ram, Z-Axis | 68.89" |
| Horizontal Railhead Travel, X-Axis | 47.63 |
| Main Table Motor | 100 HP |
| Live Spindle Motor | 44 HP |
| Live Spindle Speed, 2-Ranges | 4000 RPM |
| C-Axis Contouring | .001 DEGREES |
| Automatic Tool Changer | 25 |
| Control | CNC (SIEMENS 840D POWERLINE) |
| Dimensions | 275" x 181" x 264" |
| Weight | 76,000 LBS |
TABLE DIAMETER 62.99"
MAXIMUM TURNING DIAMETER 78.74"
RAM STROKE 68.89"
MAXIMUM CUTTING HEIGHT 75.98"
TURNING TOOL TAPER WEDGE LOCK
TABLE SPEEDS 1-400 RPM
TABLE MOTOR 100 HP
TABLE INDEXING, C-AXIS .001 DEGREES
LIVE MILLING:
LIVE MILLING SPINDLE SPEEDS 4,000 RPM
LIVE SPINDLE TAPER KM80
LIVE MILLING MOTOR 44 HP
SIEMENS 840D POWERLINE CNC CONTROL
25-STATION AUTOMATIC TOOL CHANGER (5WL+1LS+0RA+19KM80)
62.99" DIA. 3-JAW / 4-JAW COMBINATION CHUCKS
LIVE SPINDLE FOR MILLING & DRILLING
C-AXIS TABLE FOR MILLING & DRILLING
COOLANT THRU SPINDLE
FULL CHIP AND COOLANT ENCLOSURE WITH ROOF
CHIP CONVEYOR
100 HP TABLE MOTOR
FULL SET OF PRINTS AND MANUALS
ATTACHMENTS:
TURNING ADAPTOR LH
LIVE RIGHT ANGLE SPINDLE
PROBE
