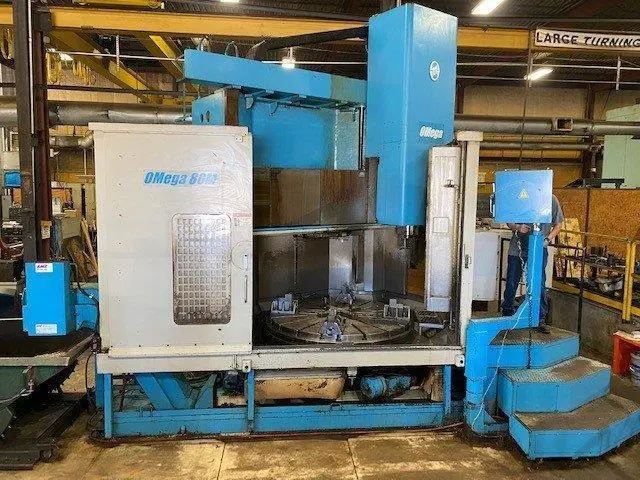

2002 O-M Omega 80M CNC VTL with Milling
Have one to sell?
ConditionUsed
1 available
TABLE DIAMETER 67"
MAX SWING/TURNING DIA 78.75"
MAX TURNING HEIGHT 63"
VERTICAL RAM TRAVEL 43"
VERTICAL TRAVEL CROSS RAIL 31.5
CROSS RAIL POSITION STEPS 5
RAM CROSS SECTION 8.25" X 8.25"
TABLE SPEEDS 1.6 - 320 RPM
MAX WORKPIECE WEIGHT 22,000 LBS
RAM W/16 TOOL STATION ATC
RAPID TRAVERSE X-AXIS 472 IPM
RAPID TRAVERSE Z-AXIS 393 IPM
MAIN MOTOR 75/60 HP
MILLING MOTOR 20/15 HP
FANUC 18IT CNC CONTROL
RAM W/16 TOOL STATION ATC
CHIP CONVEYOR
MILLING
