2014 MITSUBISHI MVR-40 CNC DOUBLE COLUMN 5-SIDED VERTICAL MACHINING CENTER WITH FANUC 31I-A CNC CONTROL
MACHINING CENTERS, VERTICAL
THIS 2014 MITSUBISHI MVR-40 DOUBLE COLUMN VERTICAL HAS 240" IN X, 80 POSITION ATC, MITSUBISHI VHRH-30-35-35P-AC CNC RIGHT ANGLE HEAD WITH 1-DEGREE INDEXING
5-FACE MACHINING SOFTWARE, GEARED HEAD SPINDLE, POWERFUL MILLING CAPABILITIES,
ATTACHMENT STORAGE FOR RIGHT ANGLE HEAD, FACTORY COLUMN RISER FOR 84.6" CLEARANCE SPINDLE NOSE TO TABLE, RIGID TAPPING, MP SCALES ON X, Y, Z, AND W AXES, AND AUTOMATIC HEAD CHANGER SYSTEM.
| X Travel | 244.1" |
| Y Travel | 165.35" |
| Z Travel | 27.55" |
| Spindle Speed | 4000 rpm |
| Tool Capacity (ATC) | 80 |
| Table Size (W) | 236.22" |
| Table Size (L) | 118.11" |
| Main Spindle Motor | 40 hp |
| Spindle Taper | CAT 50 |
| Spindle Nose To Table Top | 84.6" |
| Coolant Thru | Yes |
| Control | CNC (FANUC 31I-A) |
| Weight | APPROX - 130,000 LBS |
DISTANCE BETWEEN COLUMNS 147.60"
MAXIMUM HEIGHT UNDER SPINDLE NOSE 84.6"
X-AXIS TRAVEL, TABLE LONGITUDINAL 244.10"
Y-AXIS TRAVEL, HEAD 165.35"
Z-AXIS TRAVEL, SPINDLE 27.55"
W-AXIS TRAVEL, CROSSRAIL 31.49"
RAM SIZE 13.7" X 13.7"
SPINDLE DIAMETER 4.33"
CUTTING FEEDS .039-393.7 IPM
X-AXIS POSITIONING ACCURACY +/- 0.0010/244.1"
Y-AXIS POSITIONING ACCURACY +/- 0.0008/157.5"
Z-AXIS POSITIONING ACCURACY +/- 0.0002/31.5"
W-AXIS POSITIONING ACCURACY +/- 0.0003/43.3"
RAPID TRAVERSE, X-AXIS 590.55 IPM
RAPID TRAVERSE, Y-AXIS 866.14 IPM
RAPID TRAVERSE, Z-AXIS 393.70 IPM
RAPID TRAVERSE, W-AXIS 118.11 IPM
FANUC 31I-A CNC CONTROL
80 POSITION AUTOMATIC TOOL CHANGER

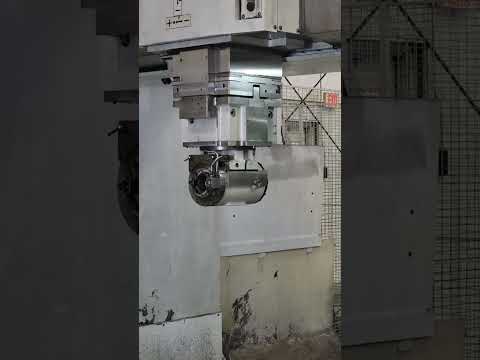

MITSUBISHI VHRH-30-35-35P-AC CNC RIGHT ANGLE HEAD WITH 1-DEGREE INDEXING
5-FACE MACHINING SOFTWARE
GEARED HEAD SPINDLE POWERFULL MILLING CAPABILITIES
ATTACHMENT STORAGE FOR RIGHT ANGLE HEAD
FACTORY COLUMN RISER FOR 84.6" CLEARANCE SPINDLE NOSE TO TABLE
RIGID TAPPING
MP SCALES ON X,Y,Z,W AXES
COOLANT/AIR THRU SPINDLE, 141 PSI
TELESCOPING WAY COVERS
AUTOMATIC HEAD CHANGER SYSTEM CHIP CONVEYOR
*FULL TOOLING PACKAGE AVAILABLE PRICE ON REQUEST
