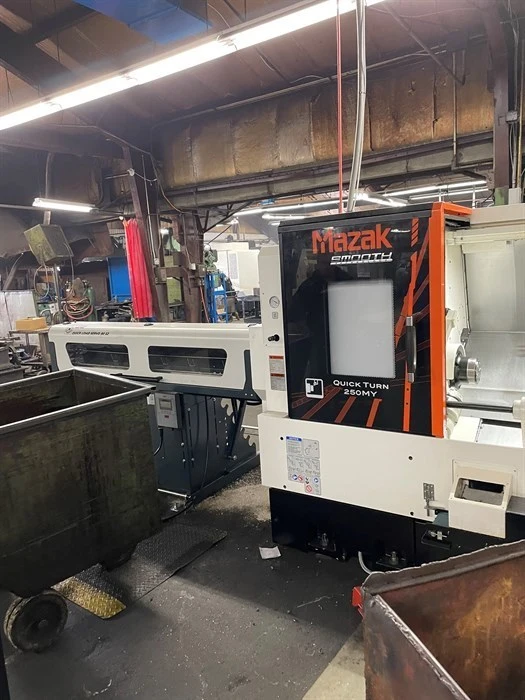

2022 MAZAK QUICKTURN 250MY CNC TURNING & MILLING CENTER W/ Y-AXIS AND BAR FEED
CNC LATHES MULTI AXIS
THIS 2022 QT 250MY HAS A SMOOTH CONTROL, PARTS CATCHER, BAR FEEDER, HIGH PRESSURE COOLANT, AND CHIP CONVEYOR.
| Maximum Swing | 26.5" |
| Max Turning Diameter | 14.75" |
| Main Spindle Bore/Max Bar Capacity | 3.5"/ 3.15 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 26.5" |
| X-Axis Travel (X1, X2, X3) | 9" |
| Z-Axis Travel (Z1, Z2, Z3) | 22.75" |
| Y-Axis Travel (Y1, Y2, Y3) | 4" (+/- 2") |
| C-Axis Indexing (1, 2) | .0001 Degree |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.5" |
| Main Spindle Maximum Bar Work | 3.15" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Control | CNC (MAZATROL SMOOTH G) |
| Weight | 12,000 LBS |
MAZATROL SMOOTH G
(2) I.D. ROTARY MILLING HOLDERS
(2) O.D. ROTARY MILLING HOLDERS
AUTO PARTS CATCHER
AUTO TLM
BARFEED INTERFACE
CHIP CONVEYOR
COMPARISON STOP
CYLINDER & POLAR CO-OR INT
EIA HELICAL, TAP, AND PATTERN CYCLES
EIA/ISO
EXT DATA I/O
G54.1, VARIABLE 600 SETS
HIGH-PRESSURE COOLANT
LNS QUICKLOAD 80 SERVO S2 SHORT MAGAZINE BAR FEED SYSTEMS
MAZATROL MATRIX SMOOTHING CONTROL
PARTS CONVEYOR
POLAR COORDINATE INPUT RE-THREAD
ROTATION, GEOMETRIC, SCALING
SHAPE COMP, THREAD, INVERSE TIME
SPIRAL EIA 3D COMPENSATION
SUB C-AXIS CONTROL
SYNC MILL TAPPING
TILTED WORK PLANE, PITCH ERROR COMP
VARIABLE 600 SETS
