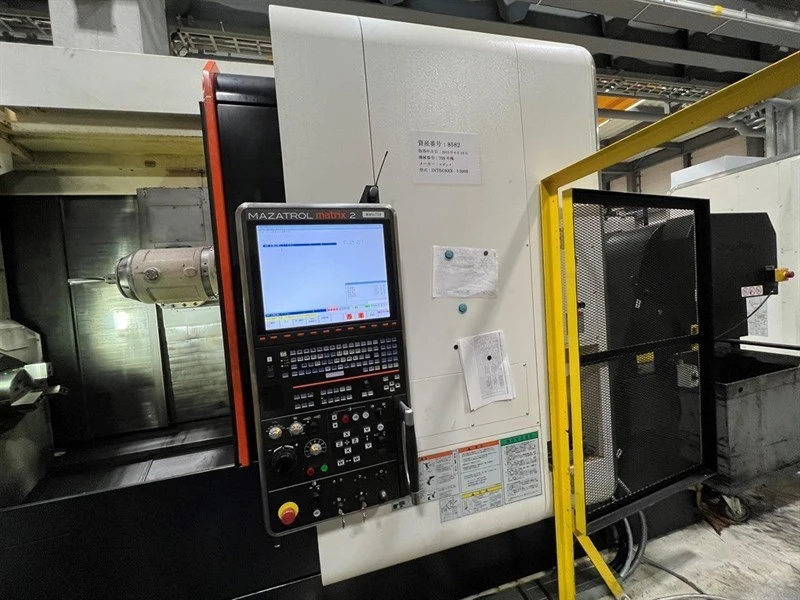

MAZAK INTEGREX I 200S CNC MULTI-TASKING CENTER W/FANUC ROBOT
CNC LATHES MULTI AXIS
| Maximum Swing | 25.9" |
| Max Turning Diameter | 16.53" |
| Main Spindle Bore/Max Bar Capacity | 3.0"/ 2.56" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Distance Between Spindles | 41.77" |
| X-Axis Travel (X1, X2, X3) | 24.21" |
| Z-Axis Travel (Z1, Z2, Z3) | 62.4" |
| Y-Axis Travel (Y1, Y2, Y3) | 9.84" |
| C-Axis Indexing (1, 2) | .0001, .0001 Degree |
| W-Axis Travel Sub Spindle | 41.97 in |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3" |
| Main Spindle Maximum Bar Work | 2.56" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.99 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 5,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 30 |
| ATC Magazine Capacity | 72 |
| B-Axis Head Indexing | 0 deg |
| B-Axis Milling Spindle Speed | 12000 rpm |
| B-Axis Milling Spindle Horse Power | 30 |
| Chip Conveyor | Yes |
| Rapid Traverse, X-Axis | 0 |
| Rapid Traverse, Y-Axis | 0 |
| Rapid Traverse, Z-Axis | 0 |
| Control | CNC |
| Weight | 29,960 LBS |
B - Axis Milling Spindle Taper CAPTO C6
Tool Diameter 3.54", 4.92"
Tool Length 11.8"
Tool Weight 22 LBS.
Rapid Traverse Rates W - Axis 1181 IPM
Rapid Traverse Rates Y1, Y2, Y3
MAZATROL MATRIX II CNC CONVERSATIONAL CONTROL
EIA, SPIRAL, EIA 3D COMP.
ROTATION, GEOMETRIC, SCALING
EXT-DATA I/O, SHAPE COMP.,
FANUC M - 20 IA 6 AXIS ROBOT, 44 LBS. PAYLOAD, 46.4" REACH
FANUC SYSTEM R - 30IB ROBOT CONTROLLER WITH PENDANT
AUTO DOOR OPEN AND CLOSE
HIGH SMOOTHING CONTROL, HIGH SPEED, SHAPE COMP, THREAD
SUB C-AXIS CONTROL, INVERSE TIME, 3-D CO-RD ROTATION
AUTO ATLM, POLAR COORDINATES INPUT, COMPARISON STOP, G54.1
SPLIE, G54.1, SYNC. MILL TAPPING, ROT-AXIS SHAPE COMP
SCALE FEEDBACK, CYLINDER, SYNC. MAIN SP. TAPPING
VARIABLE 600 SETS, SIMULTANEOUS 5 AXIS, IC CARD RUNNING
EIA HELICAL TAP CYCLE, EIA PATTERN CYCLE, 2ND AUX. FUNCTIONS
TILTED WORK PLANE, AUTO PECKING, ETHERNET RUNNING
TOOL CENTER POINT CONTROL, THREAD START POINT COMP.
RE THREAD, PROGRAM MEMORY EXPANSION, MILL TURNING MAZATROL
WORK POS. ERR COMP, THREAD CUT SPEED OVERRIDE, 5-AXIS SPLINE
