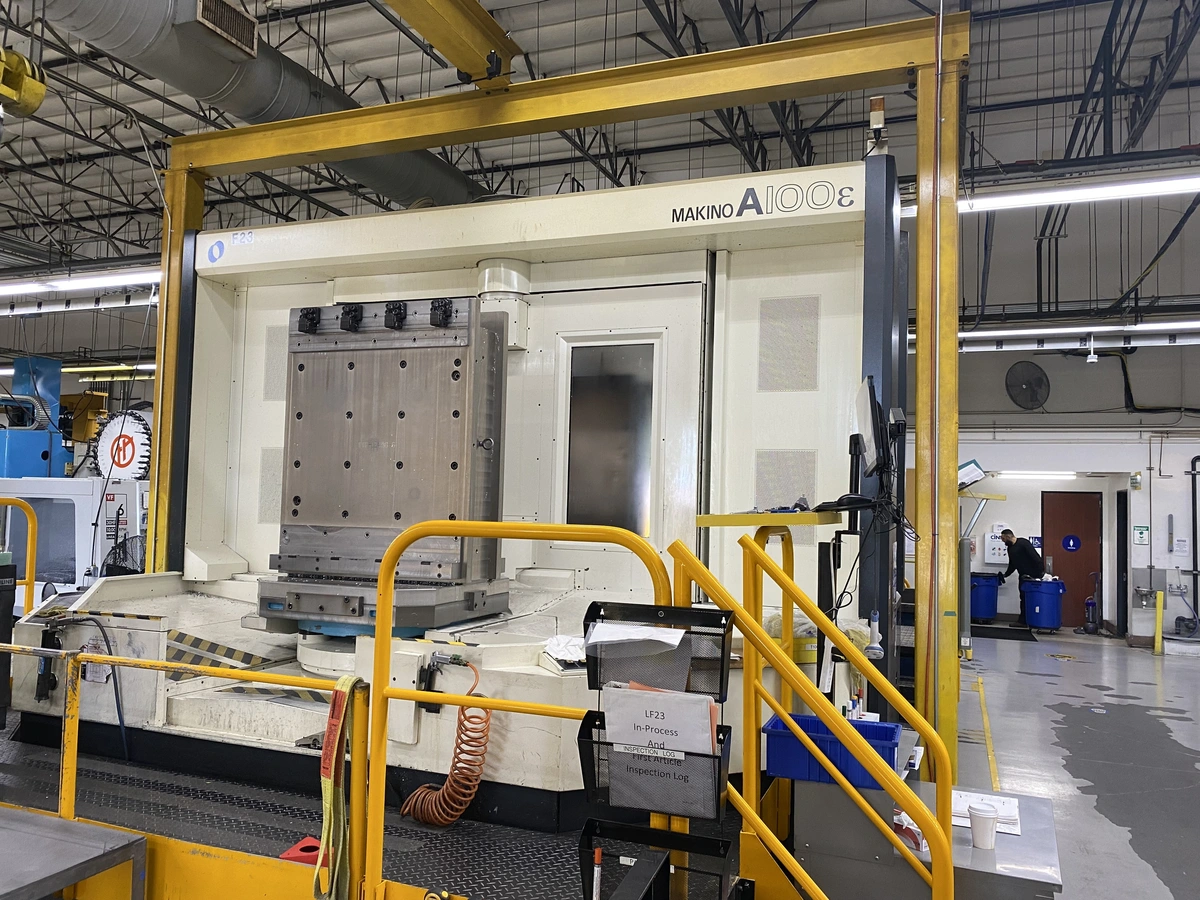

MAKINO A100E 4 AXIS HMC

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MAKINO
Model:
A100E
Condition:
Excellent
Year:
2014
Stock #:
210239
Status:
For Sale

Description

2014 MAKINO A100E 4-AXIS HORIZONTAL HAS A 12,000 RPM SPINDLE, NC ROTARY TABLE (.0001 DEG), 132 TOOL ATC, 16 NOZZLE COOLANT SUPPLY, TAPPED HOLE PALLETS, BUILT IN SCRAPER CONVEYOR, MIST COLLECTOR, AND 1000 PSI CHIPBLASTER TSC,

X-AXIS TRAVEL66.9"1,699.3 mm
Y-AXIS TRAVEL53.1"1,348.7 mm
Z-AXIS TRAVEL55.1"1,399.5 mm
SPINDLE TAPERCAT 50CAT 50
SPINDLE DRIVE MOTOR40 hp
SPINDLE SPEED12,000 RPM12000 rpm
TOOL CAPACITY (ATC)132132
NUMBER OF PALLETS22
PALLET SIZE39.4 x 39.439.4 x 39.4
PALLET SIZE (W)39.4"1,000.8 mm
PALLET SIZE (L)39.4"1,000.8 mm
PALLET LOAD CAPACITY6000 lb
4 AXIS PALLET TABLE INDEXINGN/C ContouringN/C Contouring
ControlCNC (Makino Professional 5)CNC (Makino Professional 5)

MAKINO PRO 5 CONTROL
12,000 RPM SPINDLE
HI SPINDLE TEMP CONTROL
CAT 50 TOOLING
NC ROTARY TABLE (.0001 DEG)
MAX PALLET LOAD - 3 TONS
AUTOMATIC GREASE SUPPLY
132 TOOL MAGAZINE (MATRIX)
ATC DOOR INTERLOCK
PALLET CHANGER
TAPPED HOLE PALLET - 100mm
16-NOZZLE COOLANT SUPPLY
210 PSI TSC AND AIR
TSC 1000 FLOW SWITCH
CHIPBLASTER - 1000 PSI
BUILT-IN SCRAPER CONVEYOR - RIGHT DISCHARGE
SPLASH GUARD/ OPERATOR DOOR LOCK
AIR DRYER
BTSOMA MONITORING SYSTEM
AUTOMATIC FIRE EXTINGUISHER
SIGNAL LIGHT
INCH/ METRIC SELECTION
MIST COLLECTOR
SPECIAL I/O INTERFACE FUNCTION
