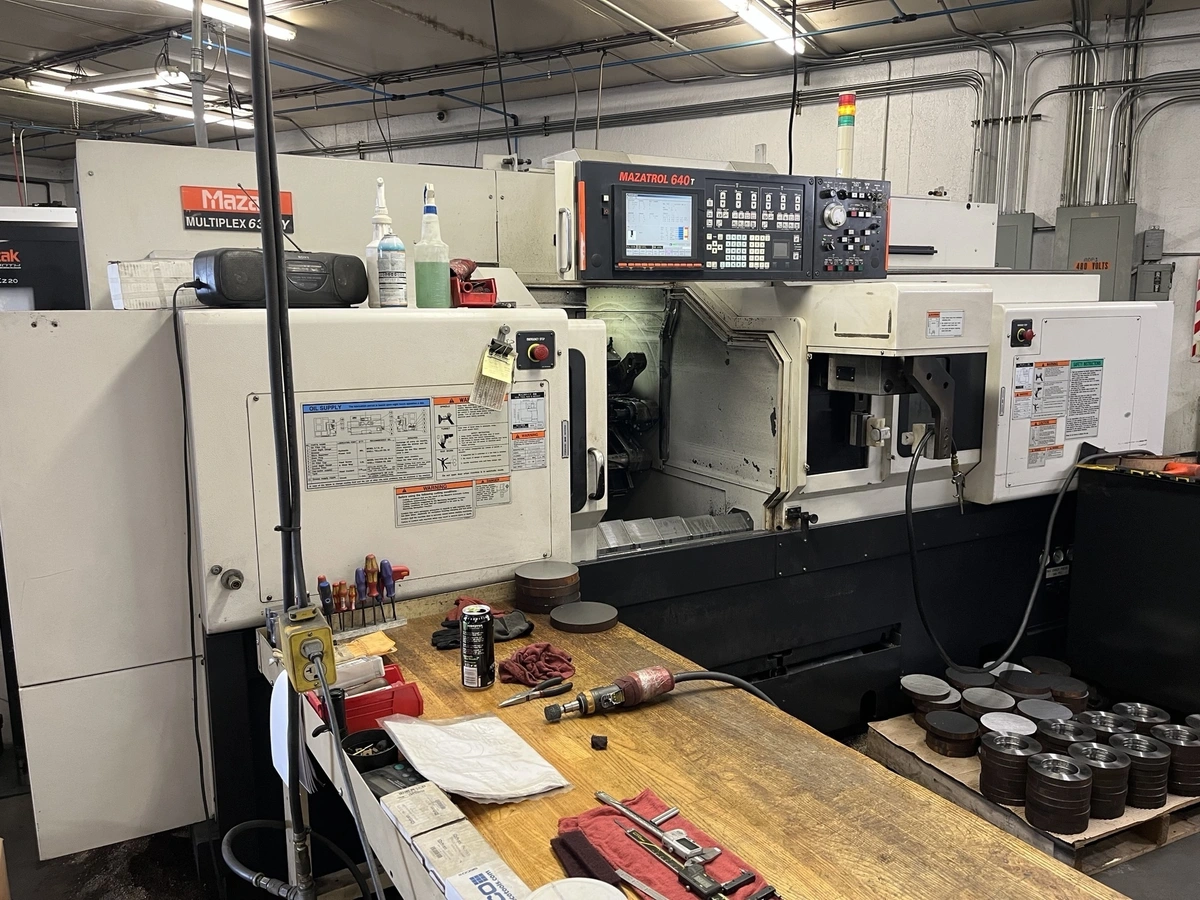

MAZAK MULTIPLEX 6300Y/ BAR-FEEDER PREPPED
CNC LATHES MULTI AXIS.jpeg)
.jpeg)
.jpeg)
.jpeg)
THIS MULTIPLEX 6300Y IS A TWIN SWINDLE, TWIN TURRET LATHE PREPPED FOR A BARFEEDER, FUSION 640 CONTROL 2-12" CHUCKS WITH 3" THROUGH HOLE, Y AXIS, AND CTS.
| Maximum Swing | 16.9" |
| Max Turning Diameter | 10" |
| Main Spindle Bore/Max Bar Capacity | 3.46/ 3.03 |
| Tail Stock/Sub Spindle | N/A |
| X-Axis Travel (X1, X2, X3) | 12.2"/ 12.2" |
| Z-Axis Travel (Z1, Z2, Z3) | 23.8"/ 23.8" |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 3" |
| C-Axis Indexing (1, 2) | 0.001 DEGREE |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.46" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Gantry System | Yes |
| (Multiplex) Standard Chuck Dia. Main Spindle (R) | 10 |
| (Multiplex) Standard Chuck Dia. Main Spindle (L) | 10 |
| Stroke of Y-Axis (Multiplex) | +/- 3" |
| (Multiplex) Stroke of Z-Axis (L-R) | 23.8"/ 23.8" |
| Control | CNC (MAZATROL FUSION 640T) |
| Dimensions | 167.72" X 95.28" X 84.88 |
MAZATROL FUSION 640
N-EIA/ ISO OPTION PACKAGE
PCMCIA INTERFACE - 2 SLOT
3.5" FDD UNIT
NETWORK INTERFACE FOR LAN MODEM
HIGH POWER COOLANT - 105 PSI/ 10.5 GPM
Y-AXIS CONTROL
2-10" THRU-HOLE CHUCKS B-210A8-15 L&R
ROTARY TOOL SPINDLE -4000 RPM
MILLING-SPINDLE SYNCHRONOUS
MULTITAP TRANSFORMER
OVERLOAD DETECTION
WORK STAND FOR WORK UNLOADER
EXIT CONVEYOR FOR WORK UNLOADER
WORK UNLOADER
CHUCK AIR BLAST
TURRET AIR BLAST L&R
CHIP CONVEYOR - REAR DISPOSAL
AUTO PECKING CYCLE WITH LOAD DETECTION
BAR FEEDER PREPPED
**LOTS OF TOOLING!**
