2012 MORI SEIKI NTX-2000/1500SZM

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

CNC LATHES MULTI AXIS

Manufacturer:

Model:

NTX 2000/1500SZM

Condition:

Good

Year:

2012

Stock #:

210245

Status:

For Sale

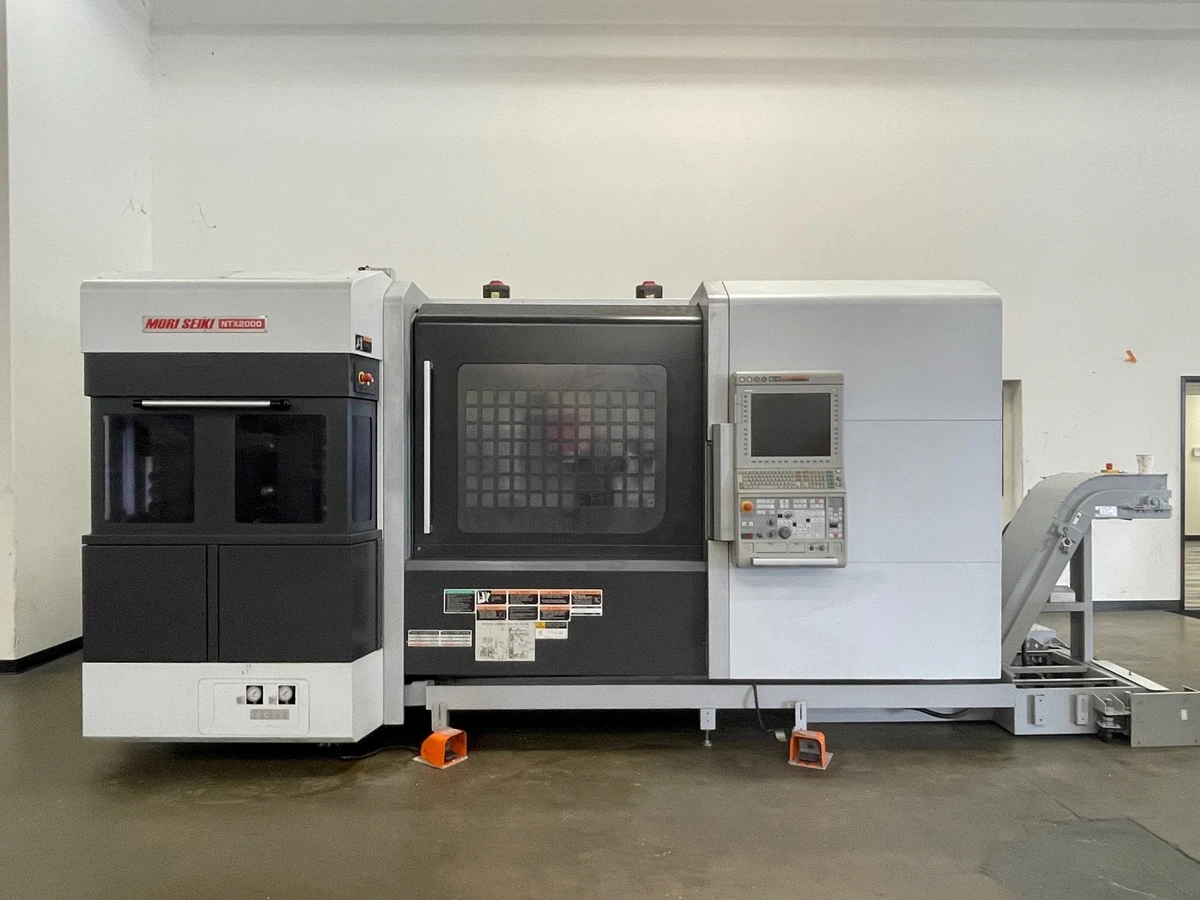

THIS 2012 MORI SEIKI NTX 2000/ 1500SZM MULTI-AXIS LATHE HAS A FANUC 1-IB5 CONTROL, 76 POSITION ATC, 60" CENTERS, AND A CHIP CONVEYOR.

ImperialMetric

Maximum Swing	25.9"	657.86 mm
Main Spindle Bore/Max Bar Capacity	2.9"	2.9"
Tail Stock/Sub Spindle	Sub Spindle	Sub Spindle
Maximum Cutting Length	60.6"	1,539.2 mm
X-Axis Travel (X1, X2, X3)	19.5"/ 6.3"	19.5"/ 6.3"
Z-Axis Travel (Z1, Z2, Z3)	61.4"/ 55.2"	61.4"/ 55.2"
Y-Axis Travel (Y1, Y2, Y3)	4.9"	4.9"
Main Spindle Chuck Size	10"	254 mm
Main Spindle Chuck Type	Hydraulic	Hydraulic
Main Spindle Bore Diameter	2.9"	73.66 mm
Main Spindle Maximum Bar Work	2.6"	66.04 mm
Main Spindle Speed	5,000 RPM	5,000 RPM
Sub Spindle/2nd Spindle Chuck Size	10	10
Sub Spindle/2nd Spindle Bore Size	2.9	2.9
Sub Spindle/2nd Spindle Chuck Type	Hydraulic	Hydraulic
Turret Rotary Tool Spindle Speed 1, 2	6000	6000
B-Axis Travel	120 DEGREES	120 DEGREES
B-Axis Milling Spindle Speed	20,000 RPM	20000 rpm

FANUC 31-IB5 SERIES CONTROL
CHIP CONVEYOR
